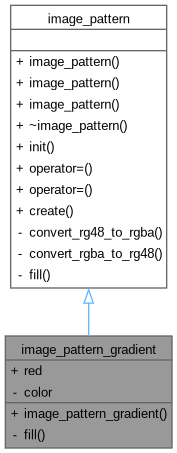

Inheritance diagram for image_pattern_gradient:

Collaboration diagram for image_pattern_gradient:

Public Member Functions
	image_pattern_gradient (const string &config)

Public Member Functions inherited from image_pattern
	image_pattern ()=default

	image_pattern (const image_pattern &)=delete

	image_pattern (image_pattern &&)=delete

virtual	~image_pattern ()=default

auto	init (int width, int height, enum generator_depth depth) noexcept

image_pattern &	operator= (const image_pattern &)=delete

image_pattern &&	operator= (image_pattern &&)=delete

Static Public Attributes
static constexpr uint32_t	red = 0xFFU

Private Member Functions
enum generator_depth	fill (int width, int height, unsigned char *data) override

Private Attributes
uint32_t	color = image_pattern_gradient::red

Additional Inherited Members
Static Public Member Functions inherited from image_pattern
static unique_ptr< image_pattern >	create (string const &pattern, string const &params)

Detailed Description

Definition at line 336 of file video_pattern_generator.cpp.

Constructor & Destructor Documentation

◆ image_pattern_gradient()

image_pattern_gradient::image_pattern_gradient ( const string & config )

inlineexplicit

Definition at line 338 of file video_pattern_generator.cpp.

                                                                      {
                        if (!config.empty()) {
                                color = stol(config, nullptr, 0);
                        }
                }

References color.

Member Function Documentation

◆ fill()

enum generator_depth image_pattern_gradient::fill	(	int	width,
		int	height,
		unsigned char *	data )

inlineoverrideprivatevirtual

Return values

bit	depth used by the generator (either 8 or 16)

Implements image_pattern.

Definition at line 345 of file video_pattern_generator.cpp.

                                                                                               {
                        auto *ptr = reinterpret_cast<uint16_t *>(data);
                        for (int j = 0; j < height; j += 1) {
                                uint16_t r = sin(static_cast<double>(j) / height * M_PI) * (color & 0xFFU) / 0xFFU * 0xFF'FFU;
                                uint16_t g = sin(static_cast<double>(j) / height * M_PI) * ((color >> 8) & 0xFFU) / 0xFFU * 0xFF'FFU;
                                uint16_t b = sin(static_cast<double>(j) / height * M_PI) * ((color >> 16) & 0xFFU) / 0xFFU * 0xFF'FFU;
                                for (int i = 0; i < width; i += 1) {
                                        *ptr++ = r;
                                        *ptr++ = g;
                                        *ptr++ = b;
                                }
                        }
                        return generator_depth::bits16;
                }
