ldpc-matrix.cpp File Reference

#include <time.h>
#include <stdlib.h>
#include "ldpc-matrix.h"
#include "rand_pmms.h"

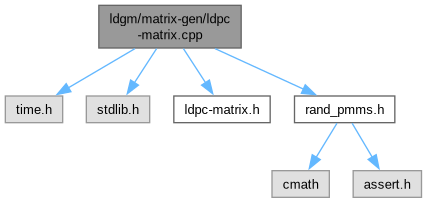

Include dependency graph for ldpc-matrix.cpp:

Go to the source code of this file.

Functions
int	degree_of_row (char **matrix, int row, int column_num)
void	left_matrix_init (char **matrix, int k, int n, int N1, int seed)
void	right_matrix_staircase_init (char **matrix, int k, int n)

Function Documentation

degree_of_row()

int degree_of_row	(	char **	matrix,
		int	row,
		int	column_num )

Definition at line 27 of file ldpc-matrix.cpp.

{
    int j = 0;
    int deg = 0;

    for ( j = 0; j < column_num; j++ )
        if ( matrix[row][j] )
            deg++;

    return deg;
}

Referenced by left_matrix_init().

left_matrix_init()

void left_matrix_init	(	char **	matrix,
		int	k,
		int	n,
		int	N1,
		int	seed )

Definition at line 40 of file ldpc-matrix.cpp.

{
    int i;                      /* Row index */
    int j;                      /* Column index */
    int h;                      /* Temporary variable */
    int t;                      /* Left limit within the list of possible choices u[] */
    int u[3*LDGM_MAX_K];            /* A table used to have a homogenous 1 distribution. */

    Rand_pmms rand_gen;
    rand_gen.seedi(seed);

    for ( h = N1*k - 1; h >= 0; h--)
    {
        u[h] = h % (n-k);
    }

    /*  Initialize the matrix with N1 "1s" per column, homogenously */
    t = 0;
    for ( j = 0; j < k; j++ )                   /* for each source symbol column */
    {
        for ( h = 0; h < N1; h++ )              /* put N1 "1s" */
        {
            /*  Check wether valid available choices remain */
            for ( i = t; i < N1*k && matrix [u[i]] [j] ; i++);
            if ( i < N1*k )
            {
                /*  Choose one index from possible choices */
                do {
                    i = t + rand_gen.pmms_rand ( N1*k - t);
                } while ( matrix [u[i]] [j]);
                matrix [u[i]] [j] = 1;

                /*  Replace with u[t]  */
                u[i] = u[t];
                t++;
            } else {
                /* No available choices, pick at random */
                do {
                    i = rand_gen.pmms_rand ( n-k );
                } while ( matrix[i][j] );
                matrix[i][j] = 1;
            }
        }
    }

    /*  Add extra bits to avoid rows with less than two "1s". */
    for ( i = 0; i < n-k; i++ )
    {
        if ( degree_of_row ( matrix, i, k ) == 0 )
        {
            j = rand_gen.pmms_rand(k);
            matrix[i][j] = 1;
        }
        if ( degree_of_row ( matrix, i, k ) == 1 )
        {
            do {
                j = rand_gen.pmms_rand(k);
            } while ( matrix[i][j] );
            matrix[i][j] = 1;
        }
    }
}

References degree_of_row(), LDGM_MAX_K, Rand_pmms::pmms_rand(), and Rand_pmms::seedi().

Referenced by generate_ldgm_matrix().

Here is the call graph for this function:

right_matrix_staircase_init()

void right_matrix_staircase_init	(	char **	matrix,
		int	k,
		int	n )

Definition at line 103 of file ldpc-matrix.cpp.

{
    int i;

    matrix[0][k] = 1;
    for ( i = 1; i < n-k; i++)
    {
        matrix[i][k+i] = 1;
        matrix[i][k+i-1] = 1;
    }
}
