rtp Struct Reference

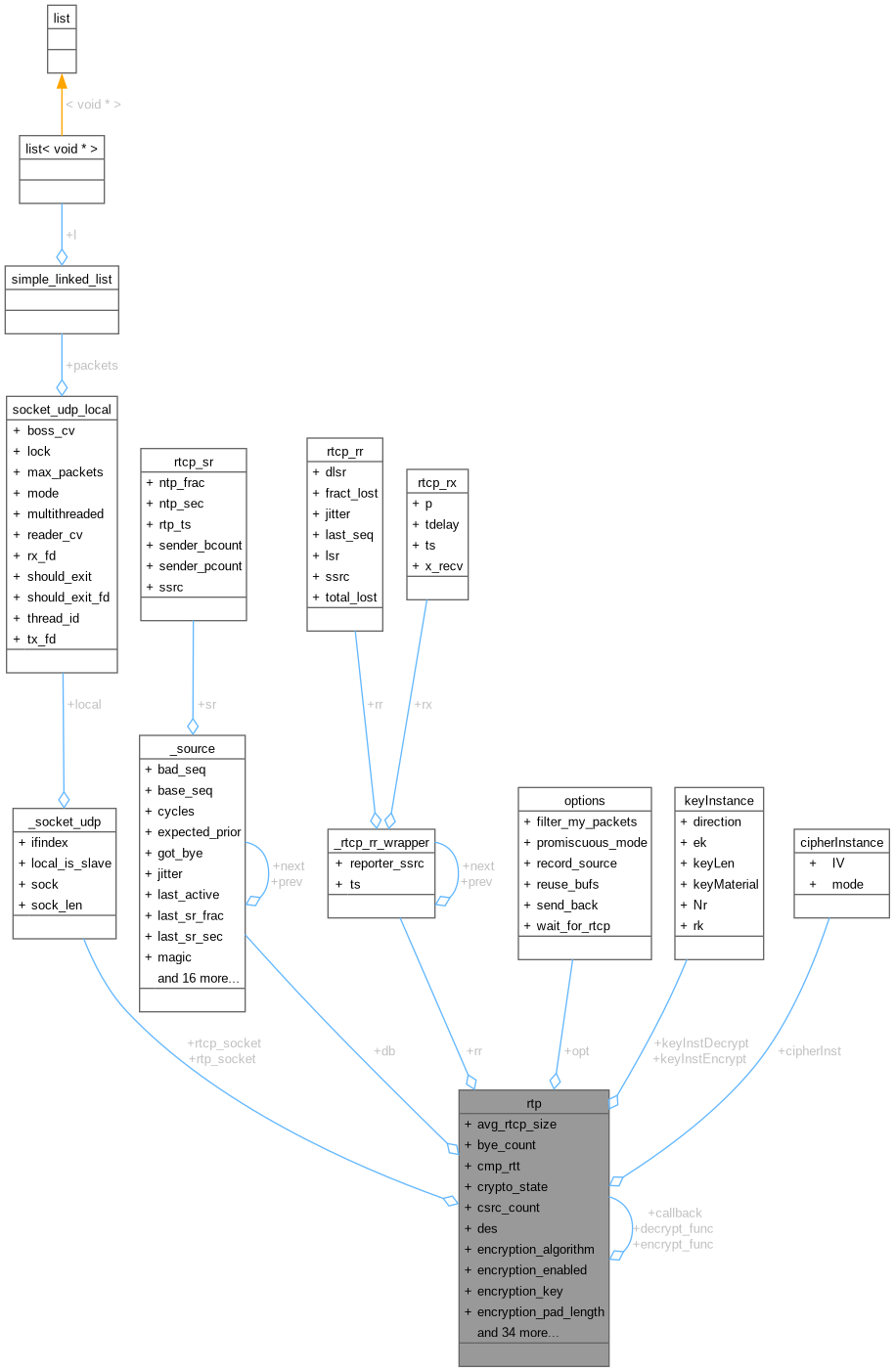

Collaboration diagram for rtp:

Public Attributes
double	avg_rtcp_size
int	bye_count
rtp_callback	callback
uint32_t	cmp_rtt
union {
struct {
char *   encryption_key
}   des
struct {
cipherInstance   cipherInst
keyInstance   keyInstDecrypt
keyInstance   keyInstEncrypt
}   rijndael
}	crypto_state
int	csrc_count
source *	db [RTP_DB_SIZE]
rtp_decrypt_func	decrypt_func
rtp_encrypt_func	encrypt_func
char *	encryption_algorithm
int	encryption_enabled
int	encryption_pad_length
int	initial_rtcp
int	invalid_rtcp_count
int	invalid_rtp_count
int	last_advertised_csrc
time_ns_t	last_rtcp_send_time
time_ns_t	last_rtp_send_time
time_ns_t	last_update
uint32_t	magic
struct msghdr *	mhdr
bool	mt_recv
uint32_t	my_ssrc
uint16_t	new_rtt
time_ns_t	next_rtcp_send_time
options *	opt
uint32_t	rcv_rtt
rtcp_rr_wrapper	rr [RTP_DB_SIZE][RTP_DB_SIZE]
double	rtcp_bw
struct sockaddr_storage	rtcp_dest
socklen_t	rtcp_dest_len
double	rtcp_interval
socket_udp *	rtcp_socket
uint32_t	rtp_bcount
uint64_t	rtp_bytes_sent
uint32_t	rtp_pcount
uint16_t	rtp_seq
socket_udp *	rtp_socket
int	sdes_count_pri
int	sdes_count_sec
int	sdes_count_ter
bool	send_rtcp_to_origin
int	sender_count
int	sending_bye
int	ssrc_count
int	ssrc_count_prev
int	tfrc_on
uint8_t *	userdata
int	we_sent

Detailed Description

Definition at line 274 of file rtp.c.

Member Data Documentation

avg_rtcp_size

double rtp::avg_rtcp_size

Definition at line 295 of file rtp.c.

Referenced by rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_process_ctrl(), and rtp_send_bye().

bye_count

int rtp::bye_count

Definition at line 288 of file rtp.c.

Referenced by process_rtcp_bye(), rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_bye().

callback

rtp_callback rtp::callback

Definition at line 332 of file rtp.c.

Referenced by delete_source(), process_report_blocks(), process_rtcp_app(), process_rtcp_bye(), process_rtcp_sdes(), process_rtcp_sr(), process_rtp(), really_create_source(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_process_ctrl(), and timeout_rr().

cipherInst

cipherInstance rtp::cipherInst

Definition at line 326 of file rtp.c.

Referenced by rijndael_decrypt(), rijndael_encrypt(), and rijndael_initialize().

cmp_rtt

uint32_t rtp::cmp_rtt

Definition at line 312 of file rtp.c.

Referenced by rtp_send_data_hdr().

[union]

union { ... } rtp::crypto_state

Referenced by des_decrypt(), des_encrypt(), des_initialize(), rijndael_decrypt(), rijndael_encrypt(), and rijndael_initialize().

csrc_count

int rtp::csrc_count

Definition at line 289 of file rtp.c.

Referenced by delete_source(), next_csrc(), rtp_add_csrc(), rtp_del_csrc(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), rtp_send_ctrl(), and send_rtcp().

db

source* rtp::db[RTP_DB_SIZE]

Definition at line 282 of file rtp.c.

Referenced by audio_receiver_process_message(), check_database(), delete_source(), format_report_blocks(), get_source(), next_csrc(), really_create_source(), rtp_compute_fract_lost(), rtp_done(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_ctrl(), rtp_set_my_ssrc(), and rtp_update().

decrypt_func

rtp_decrypt_func rtp::decrypt_func

Definition at line 320 of file rtp.c.

Referenced by des_initialize(), rijndael_initialize(), rtp_process_ctrl(), and rtp_process_data().

[struct]

struct { ... } rtp::des

Referenced by des_decrypt(), des_encrypt(), and des_initialize().

encrypt_func

rtp_encrypt_func rtp::encrypt_func

Definition at line 319 of file rtp.c.

Referenced by des_initialize(), rijndael_initialize(), rtp_send_bye_now(), rtp_send_data_hdr(), and send_rtcp().

encryption_algorithm

char* rtp::encryption_algorithm

Definition at line 317 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), and rtp_set_encryption_key().

encryption_enabled

int rtp::encryption_enabled

Definition at line 318 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), rtp_process_ctrl(), rtp_process_data(), rtp_send_bye_now(), rtp_send_data_hdr(), rtp_set_encryption_key(), and send_rtcp().

encryption_key

char* rtp::encryption_key

Definition at line 329 of file rtp.c.

Referenced by des_decrypt(), des_encrypt(), and des_initialize().

encryption_pad_length

int rtp::encryption_pad_length

Definition at line 321 of file rtp.c.

Referenced by des_initialize(), rijndael_initialize(), rtp_send_bye_now(), rtp_send_data_hdr(), and send_rtcp().

initial_rtcp

int rtp::initial_rtcp

Definition at line 293 of file rtp.c.

Referenced by rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), and rtp_send_ctrl().

invalid_rtcp_count

int rtp::invalid_rtcp_count

Definition at line 287 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), and rtp_process_ctrl().

invalid_rtp_count

int rtp::invalid_rtp_count

Definition at line 286 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), and rtp_process_data().

keyInstDecrypt

keyInstance rtp::keyInstDecrypt

Definition at line 325 of file rtp.c.

Referenced by rijndael_decrypt(), and rijndael_initialize().

keyInstEncrypt

keyInstance rtp::keyInstEncrypt

Definition at line 324 of file rtp.c.

Referenced by rijndael_encrypt(), and rijndael_initialize().

last_advertised_csrc

int rtp::last_advertised_csrc

Definition at line 281 of file rtp.c.

Referenced by delete_source(), next_csrc(), rtp_del_csrc(), rtp_init_if(), and rtp_init_with_udp_socket().

last_rtcp_send_time

time_ns_t rtp::last_rtcp_send_time

Definition at line 300 of file rtp.c.

Referenced by delete_source(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), and rtp_send_ctrl().

last_rtp_send_time

time_ns_t rtp::last_rtp_send_time

Definition at line 299 of file rtp.c.

Referenced by rtp_send_data_hdr(), and rtp_update().

last_update

time_ns_t rtp::last_update

Definition at line 298 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), and rtp_update().

magic

uint32_t rtp::magic

Definition at line 335 of file rtp.c.

Referenced by check_database(), rtp_init_if(), and rtp_init_with_udp_socket().

mhdr

struct msghdr* rtp::mhdr

Definition at line 333 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), and rtp_set_recv_iov().

mt_recv

bool rtp::mt_recv

Definition at line 334 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), rtp_recv_data(), and rtp_recv_r().

my_ssrc

uint32_t rtp::my_ssrc

Definition at line 280 of file rtp.c.

Referenced by check_database(), format_rtcp_rr(), really_create_source(), rtp_done(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_my_ssrc(), rtp_send_bye_now(), rtp_send_data_hdr(), and rtp_set_my_ssrc().

new_rtt

uint16_t rtp::new_rtt

Definition at line 313 of file rtp.c.

Referenced by rtp_send_data_hdr().

next_rtcp_send_time

time_ns_t rtp::next_rtcp_send_time

Definition at line 301 of file rtp.c.

Referenced by delete_source(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), and rtp_send_ctrl().

opt

options* rtp::opt

Definition at line 284 of file rtp.c.

Referenced by audio_init(), filter_event(), rtp_done(), rtp_get_option(), rtp_has_receiver(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_process_data(), rtp_recv_data(), rtp_set_option(), and validate_rtp().

rcv_rtt

uint32_t rtp::rcv_rtt

Definition at line 315 of file rtp.c.

[struct]

struct { ... } rtp::rijndael

Referenced by rijndael_decrypt(), rijndael_encrypt(), and rijndael_initialize().

rr

rtcp_rr_wrapper rtp::rr[RTP_DB_SIZE][RTP_DB_SIZE]

Definition at line 283 of file rtp.c.

Referenced by get_rr(), insert_rr(), remove_rr(), rtp_init_if(), rtp_init_with_udp_socket(), and timeout_rr().

rtcp_bw

double rtp::rtcp_bw

Definition at line 297 of file rtp.c.

Referenced by initialize_audio_network(), rtcp_interval(), rtp_init(), rtp_init_if(), and rtp_init_with_udp_socket().

rtcp_dest

struct sockaddr_storage rtp::rtcp_dest

Definition at line 277 of file rtp.c.

Referenced by rtcp_recv_r(), rtcp_udp_send(), and rtp_recv_r().

rtcp_dest_len

socklen_t rtp::rtcp_dest_len

Definition at line 278 of file rtp.c.

Referenced by rtcp_recv_r(), rtcp_udp_send(), and rtp_recv_r().

rtcp_interval

double rtp::rtcp_interval

Definition at line 302 of file rtp.c.

Referenced by rtcp_interval(), rtp_update(), and timeout_rr().

rtcp_socket

socket_udp* rtp::rtcp_socket

Definition at line 276 of file rtp.c.

Referenced by rtcp_recv_r(), rtcp_udp_send(), rtp_done(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_recv(), rtp_recv_r(), and rtp_send_bye().

rtp_bcount

uint32_t rtp::rtp_bcount

Definition at line 308 of file rtp.c.

Referenced by format_rtcp_sr(), rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_data_hdr().

rtp_bytes_sent

uint64_t rtp::rtp_bytes_sent

Definition at line 309 of file rtp.c.

Referenced by rtp_get_bytes_sent(), rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_data_hdr().

rtp_pcount

uint32_t rtp::rtp_pcount

Definition at line 307 of file rtp.c.

Referenced by format_rtcp_sr(), rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_data_hdr().

rtp_seq

uint16_t rtp::rtp_seq

Definition at line 306 of file rtp.c.

Referenced by rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_data_hdr().

rtp_socket

socket_udp* rtp::rtp_socket

Definition at line 275 of file rtp.c.

Referenced by rtp_async_start(), rtp_async_wait(), rtp_done(), rtp_flush_recv_buf(), rtp_get_recv_buf(), rtp_get_udp_local_socket(), rtp_get_udp_rx_port(), rtp_has_receiver(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_is_ipv6(), rtp_process_data(), rtp_recv(), rtp_recv_data(), rtp_recv_r(), rtp_send_data_hdr(), rtp_send_raw_rtp_data(), rtp_set_recv_buf(), and rtp_set_send_buf().

sdes_count_pri

int rtp::sdes_count_pri

Definition at line 303 of file rtp.c.

Referenced by format_rtcp_sdes(), rtp_init_if(), and rtp_init_with_udp_socket().

sdes_count_sec

int rtp::sdes_count_sec

Definition at line 304 of file rtp.c.

Referenced by format_rtcp_sdes(), rtp_init_if(), and rtp_init_with_udp_socket().

sdes_count_ter

int rtp::sdes_count_ter

Definition at line 305 of file rtp.c.

Referenced by format_rtcp_sdes(), rtp_init_if(), and rtp_init_with_udp_socket().

send_rtcp_to_origin

bool rtp::send_rtcp_to_origin

Definition at line 279 of file rtp.c.

Referenced by rtcp_udp_send(), rtp_init_if(), and rtp_init_with_udp_socket().

sender_count

int rtp::sender_count

Definition at line 292 of file rtp.c.

Referenced by format_report_blocks(), process_rtcp_sr(), process_rtp(), rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), rtp_send_ctrl(), rtp_set_my_ssrc(), rtp_update(), and send_rtcp().

sending_bye

int rtp::sending_bye

Definition at line 294 of file rtp.c.

Referenced by rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_bye().

ssrc_count

int rtp::ssrc_count

Definition at line 290 of file rtp.c.

Referenced by check_database(), delete_source(), really_create_source(), rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), rtp_send_ctrl(), and rtp_set_my_ssrc().

ssrc_count_prev

int rtp::ssrc_count_prev

Definition at line 291 of file rtp.c.

Referenced by delete_source(), rtp_init_if(), rtp_init_with_udp_socket(), and rtp_send_ctrl().

tfrc_on

int rtp::tfrc_on

Definition at line 310 of file rtp.c.

Referenced by process_rtp(), rtp_init(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_process_ctrl(), rtp_process_data(), and rtp_send_data_hdr().

userdata

uint8_t* rtp::userdata

Definition at line 285 of file rtp.c.

Referenced by rtp_get_userdata(), rtp_init(), rtp_init_if(), and rtp_init_with_udp_socket().

we_sent

int rtp::we_sent

Definition at line 296 of file rtp.c.

Referenced by rtcp_interval(), rtp_init_if(), rtp_init_with_udp_socket(), rtp_send_bye(), rtp_send_data_hdr(), rtp_update(), and send_rtcp().

---

The documentation for this struct was generated from the following file:

• src/rtp/rtp.c
