state_file Struct Reference

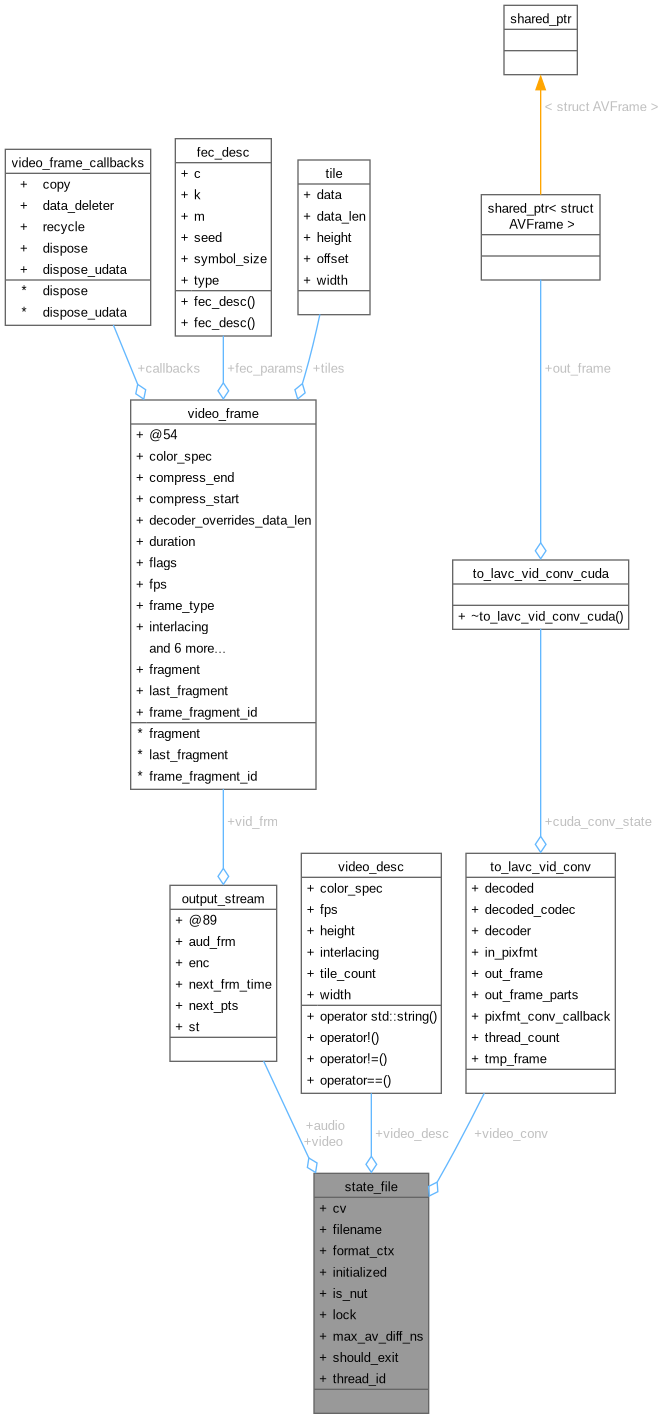

Collaboration diagram for state_file:

Public Attributes
struct output_stream	audio
pthread_cond_t	cv
char	filename [MAX_PATH_SIZE]
AVFormatContext *	format_ctx
bool	initialized
bool	is_nut
pthread_mutex_t	lock
time_ns_t	max_av_diff_ns
	max A/V diff in ns
bool	should_exit
pthread_t	thread_id
struct output_stream	video
struct to_lavc_vid_conv *	video_conv
struct video_desc	video_desc

Detailed Description

Definition at line 88 of file file.c.

Member Data Documentation

audio

struct output_stream state_file::audio

Definition at line 91 of file file.c.

Referenced by configure_audio(), display_file_done(), display_file_init(), display_file_put_audio_frame(), initialize(), worker(), write_audio_frame(), and write_video_frame().

cv

pthread_cond_t state_file::cv

Definition at line 99 of file file.c.

Referenced by display_file_done(), display_file_init(), display_file_put_audio_frame(), display_file_putf(), and worker().

filename

char state_file::filename[MAX_PATH_SIZE]

Definition at line 95 of file file.c.

Referenced by display_file_init(), initialize(), and parse_fmt().

format_ctx

AVFormatContext* state_file::format_ctx

Definition at line 89 of file file.c.

Referenced by configure_audio(), configure_video(), display_file_done(), display_file_init(), initialize(), worker(), write_audio_frame(), and write_video_frame().

initialized

bool state_file::initialized

Definition at line 100 of file file.c.

Referenced by display_file_done(), initialize(), and worker().

is_nut

bool state_file::is_nut

Definition at line 90 of file file.c.

Referenced by configure_audio(), configure_video(), display_file_get_property(), display_file_getf(), display_file_init(), file_get_pix_fmt(), and write_audio_frame().

lock

pthread_mutex_t state_file::lock

Definition at line 98 of file file.c.

Referenced by display_file_done(), display_file_init(), display_file_put_audio_frame(), display_file_putf(), and worker().

max_av_diff_ns

time_ns_t state_file::max_av_diff_ns

max A/V diff in ns

Definition at line 96 of file file.c.

Referenced by display_file_init(), parse_fmt(), and write_video_frame().

should_exit

bool state_file::should_exit

Definition at line 101 of file file.c.

Referenced by display_file_done(), display_file_putf(), and worker().

thread_id

pthread_t state_file::thread_id

Definition at line 97 of file file.c.

Referenced by display_file_done(), and display_file_init().

video

struct output_stream state_file::video

Definition at line 92 of file file.c.

Referenced by configure_audio(), configure_video(), display_file_done(), display_file_init(), display_file_putf(), worker(), and write_video_frame().

video_conv

struct to_lavc_vid_conv* state_file::video_conv

Definition at line 94 of file file.c.

Referenced by configure_video(), display_file_done(), and write_video_frame().

video_desc

struct video_desc state_file::video_desc

Definition at line 93 of file file.c.

Referenced by display_file_getf(), display_file_reconfigure(), and write_video_frame().

---

The documentation for this struct was generated from the following file:

• src/video_display/file.c
