state_jack_playback Struct Reference

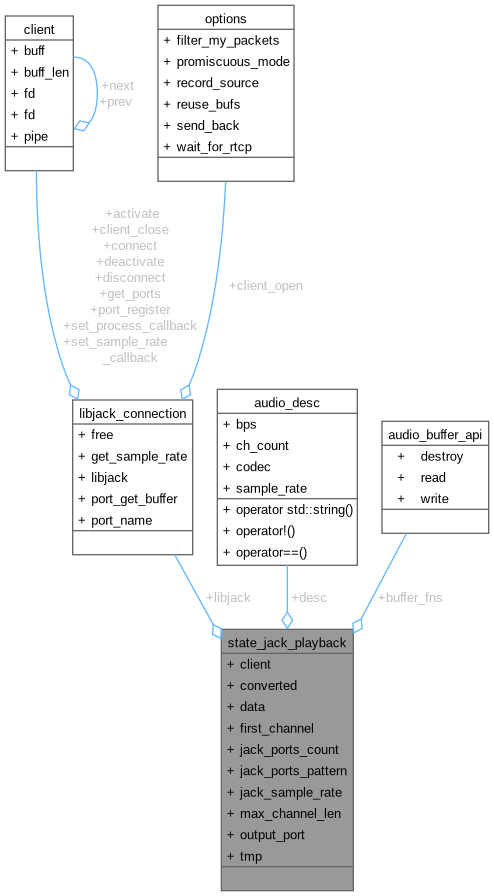

Collaboration diagram for state_jack_playback:

Public Attributes
struct audio_buffer_api *	buffer_fns
jack_client_t *	client
float *	converted
	temporery buffer for int2float (put_frame)
void *	data
struct audio_desc	desc
long int	first_channel
int	jack_ports_count
char *	jack_ports_pattern
int	jack_sample_rate
struct libjack_connection *	libjack
int	max_channel_len
	maximal length of channel data that is processed at once
jack_port_t *	output_port [MAX_PORTS]
char *	tmp
	temporary buffer used to demux data

Detailed Description

Definition at line 62 of file jack.c.

Member Data Documentation

buffer_fns

struct audio_buffer_api* state_jack_playback::buffer_fns

Definition at line 75 of file jack.c.

Referenced by audio_play_jack_done(), audio_play_jack_put_frame(), audio_play_jack_reconfigure(), and jack_process_callback().

client

jack_client_t* state_jack_playback::client

Definition at line 67 of file jack.c.

Referenced by audio_play_jack_done(), audio_play_jack_init(), and audio_play_jack_reconfigure().

converted

float* state_jack_playback::converted

temporery buffer for int2float (put_frame)

Definition at line 71 of file jack.c.

Referenced by audio_play_jack_done(), audio_play_jack_put_frame(), and audio_play_jack_reconfigure().

data

void* state_jack_playback::data

Definition at line 74 of file jack.c.

Referenced by audio_play_jack_ctl(), audio_play_jack_done(), audio_play_jack_put_frame(), audio_play_jack_reconfigure(), and jack_process_callback().

desc

struct audio_desc state_jack_playback::desc

Definition at line 69 of file jack.c.

Referenced by audio_play_jack_reconfigure(), and jack_process_callback().

first_channel

long int state_jack_playback::first_channel

Definition at line 78 of file jack.c.

Referenced by audio_play_jack_init().

jack_ports_count

int state_jack_playback::jack_ports_count

Definition at line 73 of file jack.c.

Referenced by audio_play_jack_init(), audio_play_jack_query_format(), and audio_play_jack_reconfigure().

jack_ports_pattern

char* state_jack_playback::jack_ports_pattern

Definition at line 65 of file jack.c.

Referenced by audio_play_jack_done(), audio_play_jack_init(), and audio_play_jack_reconfigure().

jack_sample_rate

int state_jack_playback::jack_sample_rate

Definition at line 66 of file jack.c.

Referenced by audio_play_jack_init(), audio_play_jack_query_format(), audio_play_jack_reconfigure(), and jack_samplerate_changed_callback().

libjack

struct libjack_connection* state_jack_playback::libjack

Definition at line 63 of file jack.c.

Referenced by audio_play_jack_done(), audio_play_jack_init(), audio_play_jack_reconfigure(), and jack_process_callback().

max_channel_len

int state_jack_playback::max_channel_len

maximal length of channel data that is processed at once

Definition at line 70 of file jack.c.

Referenced by audio_play_jack_put_frame(), and audio_play_jack_reconfigure().

output_port

jack_port_t* state_jack_playback::output_port[MAX_PORTS]

Definition at line 68 of file jack.c.

Referenced by audio_play_jack_init(), audio_play_jack_reconfigure(), and jack_process_callback().

tmp

char* state_jack_playback::tmp

temporary buffer used to demux data

Definition at line 76 of file jack.c.

Referenced by audio_play_jack_done(), audio_play_jack_init(), audio_play_jack_reconfigure(), and jack_process_callback().

---

The documentation for this struct was generated from the following file:

• src/audio/playback/jack.c
