WidgetUi Class Reference

#include <widget_ui.hpp>

Inheritance diagram for WidgetUi:

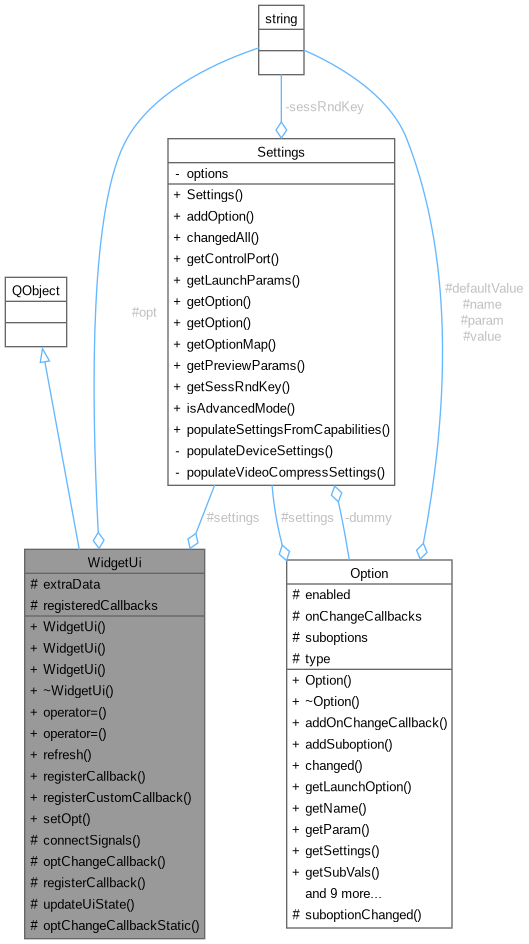

Collaboration diagram for WidgetUi:

Signals
void	changed ()

Public Member Functions
	WidgetUi (const WidgetUi &)=delete
	WidgetUi (Settings *settings, const std::string &opt)
	WidgetUi (WidgetUi &&)=delete
virtual	~WidgetUi ()
WidgetUi &	operator= (const WidgetUi &)=delete
WidgetUi &	operator= (WidgetUi &&)=delete
virtual void	refresh ()
void	registerCallback (const std::string &option)
void	registerCustomCallback (const std::string &option, Option::Callback callback, std::unique_ptr< ExtraCallbackData > &&extraDataPtr=nullptr)
void	setOpt (const std::string &opt)

Protected Member Functions
virtual void	connectSignals ()=0
virtual void	optChangeCallback (Option &opt, bool suboption)=0
void	registerCallback ()
virtual void	updateUiState ()=0

Static Protected Member Functions
static void	optChangeCallbackStatic (Option &, bool, void *)

Protected Attributes
std::vector< std::unique_ptr< ExtraCallbackData > >	extraData
std::string	opt
std::vector< std::pair< std::string, Option::Callback > >	registeredCallbacks
Settings *	settings

Detailed Description

Definition at line 10 of file widget_ui.hpp.

Constructor & Destructor Documentation

WidgetUi() [1/3]

WidgetUi::WidgetUi	(	Settings *	settings,
		const std::string &	opt )

Definition at line 3 of file widget_ui.cpp.

                                                           :
        settings(settings),
        opt(opt)
{
}

WidgetUi() [2/3]

WidgetUi::WidgetUi ( const WidgetUi & )

delete

WidgetUi() [3/3]

WidgetUi::WidgetUi ( WidgetUi && )

delete

~WidgetUi()

WidgetUi::~WidgetUi ( )

virtual

Definition at line 9 of file widget_ui.cpp.

                   {
        for(auto& i : registeredCallbacks){
                settings->getOption(i.first).removeOnChangeCallback(i.second);
        }
}

References Settings::getOption(), registeredCallbacks, Option::removeOnChangeCallback(), and settings.

Here is the call graph for this function:

Member Function Documentation

changed

void WidgetUi::changed ( )

signal

Referenced by SettingsUi::addControl(), CheckableUi::boxClicked(), RadioButtonUi::btnClicked(), SettingsUi::buildCodecOptControls(), SettingsUi::fillFormOptions(), ComboBoxUi::itemSelected(), and TextOptUi::textEdited().

connectSignals()

virtual void WidgetUi::connectSignals ( )

protectedpure virtual

Implemented in ActionCheckableUi, CheckableUi, CheckboxUi, ComboBoxUi, GroupBoxUi, LineEditUi, RadioButtonUi, SpinBoxUi, and TextOptUi.

operator=() [1/2]

WidgetUi & WidgetUi::operator= ( const WidgetUi & )

delete

operator=() [2/2]

WidgetUi & WidgetUi::operator= ( WidgetUi && )

delete

optChangeCallback()

virtual void WidgetUi::optChangeCallback ( Option & opt, bool suboption )

protectedpure virtual

Implemented in CheckableUi, ComboBoxUi, RadioButtonUi, and TextOptUi.

Referenced by optChangeCallbackStatic().

optChangeCallbackStatic()

void WidgetUi::optChangeCallbackStatic ( Option & opt, bool subopt, void * opaque )

staticprotected

Definition at line 21 of file widget_ui.cpp.

                                                                            {
        static_cast<WidgetUi *>(opaque)->optChangeCallback(opt, subopt);
}

References opt, and optChangeCallback().

Referenced by registerCallback().

Here is the call graph for this function:

refresh()

virtual void WidgetUi::refresh ( )

inlinevirtual

Reimplemented in ComboBoxUi.

Definition at line 25 of file widget_ui.hpp.

{  }

registerCallback() [1/2]

void WidgetUi::registerCallback ( )

protected

Definition at line 57 of file widget_ui.cpp.

                               {
        registerCallback(opt);
}

References opt, and registerCallback().

Referenced by CheckableUi::CheckableUi(), ComboBoxUi::ComboBoxUi(), RadioButtonUi::RadioButtonUi(), TextOptUi::TextOptUi(), ComboBoxUi::refresh(), registerCallback(), and setOpt().

Here is the call graph for this function:

registerCallback() [2/2]

void WidgetUi::registerCallback

(

const std::string &

option

)

Definition at line 49 of file widget_ui.cpp.

                                                      {
        if(option == "")
                return;

        Option::Callback callback(&WidgetUi::optChangeCallbackStatic, this);
        registerCustomCallback(option, callback);
}

References callback, optChangeCallbackStatic(), and registerCustomCallback().

Referenced by SettingsUi::initMainWin().

Here is the call graph for this function:

registerCustomCallback()

void WidgetUi::registerCustomCallback	(	const std::string &	option,
		Option::Callback	callback,
		std::unique_ptr< ExtraCallbackData > &&	extraDataPtr = nullptr )

Definition at line 25 of file widget_ui.cpp.

{
        if(option == "")
                return;

        std::pair<std::string, Option::Callback> elToInsert(option, callback);

        auto it = std::find(registeredCallbacks.begin(),
                        registeredCallbacks.end(), elToInsert);
        if(it != registeredCallbacks.end()){
                return;
        }


        settings->getOption(option).addOnChangeCallback(callback);
        registeredCallbacks.push_back(elToInsert);

        if(extraDataPtr)
                extraData.emplace_back(std::move(extraDataPtr));

}

References Option::addOnChangeCallback(), callback, extraData, Settings::getOption(), registeredCallbacks, and settings.

Referenced by SettingsUi::initMainWin(), and registerCallback().

Here is the call graph for this function:

setOpt()

void WidgetUi::setOpt

(

const std::string &

opt

)

Definition at line 15 of file widget_ui.cpp.

                                         {
        this->opt = opt;
        updateUiState();
        registerCallback();
}

References opt, registerCallback(), and updateUiState().

Referenced by videoCompressBitrateCallback().

Here is the call graph for this function:

updateUiState()

virtual void WidgetUi::updateUiState ( )

protectedpure virtual

Implemented in ActionCheckableUi, CheckableUi, CheckboxUi, ComboBoxUi, GroupBoxUi, LineEditUi, RadioButtonUi, SpinBoxUi, and TextOptUi.

Referenced by setOpt().

Member Data Documentation

extraData

std::vector<std::unique_ptr<ExtraCallbackData> > WidgetUi::extraData

protected

Definition at line 36 of file widget_ui.hpp.

Referenced by registerCustomCallback().

opt

std::string WidgetUi::opt

protected

Definition at line 34 of file widget_ui.hpp.

Referenced by CheckableUi::boxClicked(), RadioButtonUi::btnClicked(), CheckableUi::getOptValue(), TextOptUi::getOptValue(), CheckableUi::optChangeCallback(), ComboBoxUi::optChangeCallback(), RadioButtonUi::optChangeCallback(), TextOptUi::optChangeCallback(), optChangeCallbackStatic(), ComboBoxUi::refresh(), registerCallback(), setOpt(), TextOptUi::textEdited(), and RadioButtonUi::updateUiState().

registeredCallbacks

std::vector<std::pair<std::string, Option::Callback> > WidgetUi::registeredCallbacks

protected

Definition at line 35 of file widget_ui.hpp.

Referenced by ~WidgetUi(), and registerCustomCallback().

settings

Settings* WidgetUi::settings

protected

Definition at line 33 of file widget_ui.hpp.

Referenced by ~WidgetUi(), CheckableUi::boxClicked(), RadioButtonUi::btnClicked(), CheckableUi::getOptValue(), TextOptUi::getOptValue(), ComboBoxUi::itemSelected(), RadioButtonUi::optChangeCallback(), registerCustomCallback(), ComboBoxUi::selectOption(), TextOptUi::textEdited(), ComboBoxUi::updateUiItems(), and RadioButtonUi::updateUiState().

---

The documentation for this class was generated from the following files:

• gui/QT/option/widget_ui.hpp
• gui/QT/option/widget_ui.cpp
