image_pattern_smpte_bars Class Reference

Inheritance diagram for image_pattern_smpte_bars:

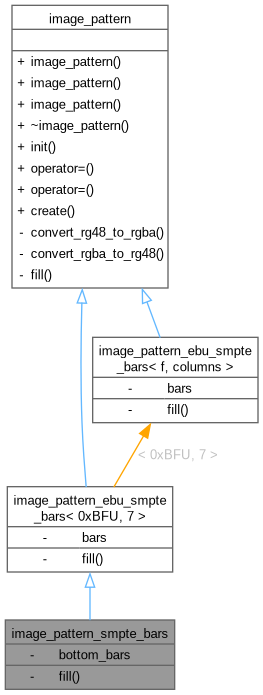

Collaboration diagram for image_pattern_smpte_bars:

Private Member Functions
enum generator_depth	fill (int width, int height, unsigned char *data) override

Static Private Attributes
static constexpr uint32_t	bottom_bars []

Additional Inherited Members
Public Member Functions inherited from image_pattern
	image_pattern ()=default
	image_pattern (const image_pattern &)=delete
	image_pattern (image_pattern &&)=delete
virtual	~image_pattern ()=default
auto	init (int width, int height, enum generator_depth depth) noexcept
image_pattern &	operator= (const image_pattern &)=delete
image_pattern &&	operator= (image_pattern &&)=delete
Static Public Member Functions inherited from image_pattern
static unique_ptr< image_pattern >	create (string const &pattern, string const &params)

Detailed Description

Definition at line 258 of file video_pattern_generator.cpp.

Member Function Documentation

fill()

enum generator_depth image_pattern_smpte_bars::fill ( int width, int height, unsigned char * data )

inlineoverrideprivatevirtual

Return values

bit	depth used by the generator (either 8 or 16)

Reimplemented from image_pattern_ebu_smpte_bars< 0xBFU, 7 >.

Definition at line 267 of file video_pattern_generator.cpp.

                                                                                       {
                auto ret = image_pattern_ebu_smpte_bars<0xBFU, 7>::fill(width, height, data); // upper 2 3rds
                assert(ret == generator_depth::bits8);
                int columns = 7;
                struct testcard_pixmap pixmap{ .w = width, .h = height, .data = data };
                const int mid_strip_height = height / 3 - width / 6;
                struct testcard_rect r{ .x = 0, .y = height / 3 * 2, .w = (width + columns - 1) / columns, .h = mid_strip_height};
                for (int i = 0; i < columns; i += 1) {
                        r.x = i * r.w;
                        log_msg(LOG_LEVEL_DEBUG, MOD_NAME "Fill rect at %d,%d\n", r.x, r.y);
                        if (i % 2 == 1) {
                                testcard_fillRect(&pixmap, &r, 0);
                        } else {
                                testcard_fillRect(
                                    &pixmap, &r,
                                    image_pattern_ebu_smpte_bars<
                                        0xBFU, 7>::bars[columns - 1 - i]);
                        }
                }
                columns = 6;
                r.w = (width + columns - 1) / columns;
                r.h = width / 6;
                r.y += mid_strip_height;
                for (int i = 0; i < columns; i += 1) {
                        r.x = i * r.w;
                        log_msg(LOG_LEVEL_DEBUG, MOD_NAME "Fill rect at %d,%d\n", r.x, r.y);
                        testcard_fillRect(&pixmap, &r,
                                        bottom_bars[i]);
                }
                // pluge - skipping a "superblack" and black bar
                r.x = 5 * (width / 7);
                r.w = (width / 7) / 3;
                r.x += 2 * r.w;
                log_msg(LOG_LEVEL_DEBUG, MOD_NAME "Fill rect at %d,%d\n", r.x, r.y);
                testcard_fillRect(&pixmap, &r,
                                0xFFU << 24 | 0x0A0A0A);
                return generator_depth::bits8;
        }

References image_pattern_ebu_smpte_bars< 0xBFU, 7 >::bars, bits8, bottom_bars, image_pattern_ebu_smpte_bars< f, columns >::fill(), testcard_rect::h, LOG_LEVEL_DEBUG, log_msg(), MOD_NAME, testcard_fillRect(), testcard_pixmap::w, testcard_rect::w, testcard_rect::x, and testcard_rect::y.

Here is the call graph for this function:

Member Data Documentation

bottom_bars

uint32_t image_pattern_smpte_bars::bottom_bars[]

staticconstexprprivate

Initial value:

= {
                uint32_t{0xFFU << 24U | 105 << 16U | 63 << 8U | 0U  },
                uint32_t{0xFFFFFFFFU },
                uint32_t{0xFFU << 24U | 119U << 16U | 0U << 8U | 0U },
                uint32_t{0xFF000000U },
                uint32_t{0xFF000000U },
                uint32_t{0xFF000000U },
        }

Definition at line 259 of file video_pattern_generator.cpp.

                                                  {
                uint32_t{0xFFU << 24U | 105 << 16U | 63 << 8U | 0U  },
                uint32_t{0xFFFFFFFFU },
                uint32_t{0xFFU << 24U | 119U << 16U | 0U << 8U | 0U },
                uint32_t{0xFF000000U },
                uint32_t{0xFF000000U },
                uint32_t{0xFF000000U },
        };

Referenced by fill().

---

The documentation for this class was generated from the following file:

• src/utils/video_pattern_generator.cpp
