image_pattern_ebu_smpte_bars< f, columns > Class Template Reference

Inheritance diagram for image_pattern_ebu_smpte_bars< f, columns >:

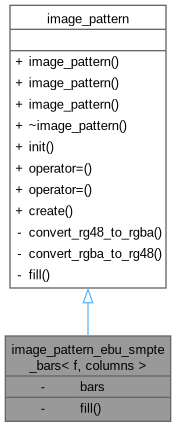

Collaboration diagram for image_pattern_ebu_smpte_bars< f, columns >:

Private Member Functions
enum generator_depth	fill (int width, int height, unsigned char *data) override

Static Private Attributes
static constexpr uint32_t	bars []

Friends
class	image_pattern_smpte_bars

Additional Inherited Members
Public Member Functions inherited from image_pattern
	image_pattern ()=default
	image_pattern (const image_pattern &)=delete
	image_pattern (image_pattern &&)=delete
virtual	~image_pattern ()=default
auto	init (int width, int height, enum generator_depth depth) noexcept
image_pattern &	operator= (const image_pattern &)=delete
image_pattern &&	operator= (image_pattern &&)=delete
Static Public Member Functions inherited from image_pattern
static unique_ptr< image_pattern >	create (string const &pattern, string const &params)

Detailed Description

template<uint8_t f, int columns>
class image_pattern_ebu_smpte_bars< f, columns >

Todo

Proper SMPTE test pattern has different in bottom third.

Definition at line 222 of file video_pattern_generator.cpp.

Member Function Documentation

fill()

template<uint8_t f, int columns>

enum generator_depth image_pattern_ebu_smpte_bars< f, columns >::fill ( int width, int height, unsigned char * data )

inlineoverrideprivatevirtual

Return values

bit	depth used by the generator (either 8 or 16)

Implements image_pattern.

Reimplemented in image_pattern_smpte_bars.

Definition at line 233 of file video_pattern_generator.cpp.

                                                                                       {
                int col_num = 0;
                const int rect_size = (width + columns - 1) / columns;
                struct testcard_rect r{};
                struct testcard_pixmap pixmap{};
                pixmap.w = width;
                pixmap.h = height;
                pixmap.data = data;
                for (int j = 0; j < height; j += rect_size) {
                        for (int i = 0; i < width; i += rect_size) {
                                r.x = i;
                                r.y = j;
                                r.w = rect_size;
                                r.h = min<int>(rect_size, height - r.y);
                                log_msg(LOG_LEVEL_DEBUG, MOD_NAME "Fill rect at %d,%d\n", r.x, r.y);
                                testcard_fillRect(&pixmap, &r,
                                                bars[col_num]);
                                col_num = (col_num + 1) % columns;
                        }
                }
                return generator_depth::bits8;
        }

References image_pattern_ebu_smpte_bars< f, columns >::bars, bits8, testcard_pixmap::data, testcard_pixmap::h, testcard_rect::h, LOG_LEVEL_DEBUG, log_msg(), min, MOD_NAME, testcard_fillRect(), testcard_pixmap::w, testcard_rect::w, testcard_rect::x, and testcard_rect::y.

Referenced by image_pattern_smpte_bars::fill().

Here is the call graph for this function:

Friends And Related Symbol Documentation

image_pattern_smpte_bars

template<uint8_t f, int columns>

friend class image_pattern_smpte_bars

friend

Definition at line 255 of file video_pattern_generator.cpp.

Member Data Documentation

bars

template<uint8_t f, int columns>

uint32_t image_pattern_ebu_smpte_bars< f, columns >::bars[]

staticconstexprprivate

Initial value:

= {
                uint32_t{0xFFU << 24U | f  << 16U | f  << 8U | f  },
                        uint32_t{0xFFU << 24U | 0U << 16U | f  << 8U | f  },
                        uint32_t{0xFFU << 24U | f  << 16U | f  << 8U | 0U },
                        uint32_t{0xFFU << 24U | 0U << 16U | f  << 8U | 0U },
                        uint32_t{0xFFU << 24U | f  << 16U | 0U << 8U | f  },
                        uint32_t{0xFFU << 24U | 0U << 16U | 0U << 8U | f  },
                        uint32_t{0xFFU << 24U | f  << 16U | 0U << 8U | 0U },
                        uint32_t{0xFFU << 24U | 0U << 16U | 0U << 8U | 0U },
        }

Definition at line 223 of file video_pattern_generator.cpp.

                                           {
                uint32_t{0xFFU << 24U | f  << 16U | f  << 8U | f  },
                        uint32_t{0xFFU << 24U | 0U << 16U | f  << 8U | f  },
                        uint32_t{0xFFU << 24U | f  << 16U | f  << 8U | 0U },
                        uint32_t{0xFFU << 24U | 0U << 16U | f  << 8U | 0U },
                        uint32_t{0xFFU << 24U | f  << 16U | 0U << 8U | f  },
                        uint32_t{0xFFU << 24U | 0U << 16U | 0U << 8U | f  },
                        uint32_t{0xFFU << 24U | f  << 16U | 0U << 8U | 0U },
                        uint32_t{0xFFU << 24U | 0U << 16U | 0U << 8U | 0U },
        };

Referenced by image_pattern_ebu_smpte_bars< f, columns >::fill().

---

The documentation for this class was generated from the following file:

• src/utils/video_pattern_generator.cpp
