#include <GL/glew.h>
#include <GLFW/glfw3.h>
#include "spout_sender.h"
#include "syphon_server.h"
#include <algorithm>
#include <cassert>
#include <climits>
#include <cmath>
#include <condition_variable>
#include <cstdint>
#include <fstream>
#include <iostream>
#include <mutex>
#include <queue>
#include <string>
#include <string_view>
#include <unordered_map>
#include "color.h"
#include "debug.h"
#include "gl_context.h"
#include "host.h"
#include "keyboard_control.h"
#include "lib_common.h"
#include "messaging.h"
#include "module.h"
#include "types.h"
#include "utils/color_out.h"
#include "utils/macros.h"
#include "utils/ref_count.hpp"
#include "video.h"
#include "video_display.h"
#include "gl_vdpau.hpp"

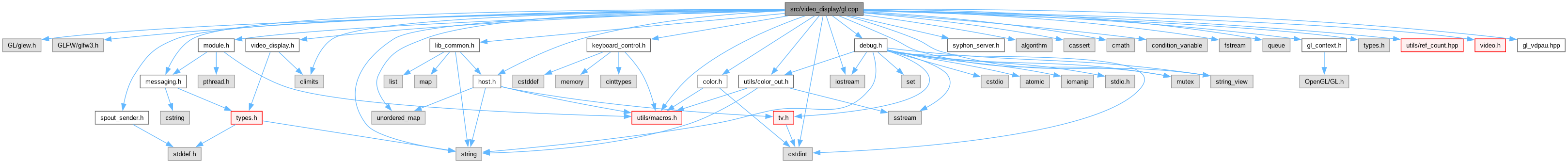

Include dependency graph for gl.cpp:

Classes
struct	state_gl

struct	state_gl::current_display_desc

Macros
#define	ADAPTIVE_VSYNC -1

#define	BAR_GREY_COL (0.9)

#define	BAR_WIDTH (.01)

#define	BARS_BOTTOM (.8)

#define	BARS_TOP (.9)

#define	DEFAULT_WIN_NAME "Ultragrid - OpenGL Display"

#define	FEATURE_PRESENT(x)

#define	GL_DEINTERLACE_IMPOSSIBLE_MSG_ID 0x38e52705

#define	GL_DISABLE_10B_OPT_PARAM_NAME "gl-disable-10b"

#define	GL_WINDOW_HINT_OPT_PARAM_NAME "glfw-window-hint"

#define	LEFT_BAR_LEFT (-.9)

#define	LEFT_BAR_RIGHT (LEFT_BAR_LEFT + BAR_WIDTH)

#define	MAGIC_GL 0x1331018e

#define	MAX_BUFFER_SIZE 1

#define	MOD_NAME "[GL] "

#define	RIGHT_BAR_LEFT (LEFT_BAR_RIGHT + BAR_WIDTH)

#define	RIGHT_BAR_RIGHT (RIGHT_BAR_LEFT + BAR_WIDTH)

#define	SINGLE_BUF 0xFF

#define	SYSTEM_VSYNC 0xFE

Functions
	ADD_TO_PARAM (GL_DISABLE_10B_OPT_PARAM_NAME, "* " GL_DISABLE_10B_OPT_PARAM_NAME "\n" " Disable 10 bit codec processing to improve performance\n")

	ADD_TO_PARAM (GL_WINDOW_HINT_OPT_PARAM_NAME, "* " GL_WINDOW_HINT_OPT_PARAM_NAME "=<k>=<v>[:<k2>=<v2>...]\n" " Set window hint <k> to value <v> (deprecated, use option)\n")

static bool	check_rpi_pbo_quirks ()

static bool	display_gl_check_gl_version ()

static void	display_gl_cleanup_opengl (struct state_gl *s)

static void	display_gl_done (void *state)

static bool	display_gl_get_property (void state, int property, void val, size_t *len)

static struct video_frame *	display_gl_getf (void *state)

static void *	display_gl_init (struct module parent, const char fmt, unsigned int flags)

static bool	display_gl_init_opengl (struct state_gl *s)

static void *	display_gl_parse_fmt (struct state_gl s, char ptr)

static void	display_gl_print_depth ()

static bool	display_gl_process_key (struct state_gl *s, long long int key)

static bool	display_gl_putf (void state, struct video_frame frame, long long timeout)

static bool	display_gl_reconfigure (void *state, struct video_desc desc)

static void	display_gl_render_last (GLFWwindow *win)

static void	display_gl_run (void *arg)

static void	display_gl_set_sync_on_vblank (int value)

static void	display_gl_set_window_hints (struct state_gl *s)

static void	draw_pause ()
	draw pause symbol (2 vertical bars) to the lefttop part of the frame

static int	get_refresh_rate (enum state_gl::modeset_t modeset, GLFWmonitor *mon, double video_refresh_rate)

static void	gl_change_aspect (struct state_gl *s, int width, int height)

static void	gl_draw (double ratio, double bottom_offset, bool double_buf)

static void	gl_load_splashscreen (struct state_gl *s)

static void	gl_print_monitors (bool fullhelp)

static void	gl_process_frames (struct state_gl *s)

static void	gl_reconfigure_screen (struct state_gl *s, struct video_desc desc)

static void	gl_render (struct state_gl s, char data)

static void	gl_render_glsl (struct state_gl s, char data)

static void	gl_resize (GLFWwindow *win, int width, int height)

static void	gl_show_help (bool full)

static GLuint	gl_substitute_compile_link (const char vprogram, const char fprogram)

static void	glfw_close_callback (GLFWwindow *win)

static void	glfw_key_callback (GLFWwindow *win, int key, int scancode, int action, int mods)

static void	glfw_mouse_callback (GLFWwindow *win, double x, double y)

static void	glfw_print_error (int error_code, const char *description)

static void	glfw_print_video_mode (struct state_gl *s)

static void	glfw_resize_window (GLFWwindow *win, bool fs, int height, double aspect, double fps, double window_size_factor)

static void	list_hints ()

static void	parse_hints (struct state_gl s, bool window_hints, char hints)

static void	pop_frame (struct state_gl *s, unique_lock< mutex > &lk)

static void	print_gamma_ramp (GLFWmonitor *monitor)

	REGISTER_MODULE (gl, &display_gl_info, LIBRARY_CLASS_VIDEO_DISPLAY, VIDEO_DISPLAY_ABI_VERSION)

static void	screenshot (struct video_frame *frame)

static void	set_gamma (struct state_gl *s)

static void	set_mac_color_space (void)

static bool	set_size (struct state_gl s, const char tok)

static int64_t	translate_glfw_to_ug (int key, int mods)

static void	upload_compressed_texture (struct state_gl s, char data)

static void	upload_texture (struct state_gl s, char data)

static bool	vdp_interop_supported ()

Variables
static const char *	deinterlace_fp

static const struct video_display_info	display_gl_info

static const char *	fp_display_dxt1_yuv

static const char	fp_display_dxt5ycocg []

static constexpr codec_t	gl_supp_codecs []

unordered_map< codec_t, const char * >	glsl_programs

static const map< string, int >	hint_map

static constexpr pair< int64_t, string_view >	keybindings []

static const char *	uyvy_to_rgb_fp

static const char *	v210_to_rgb_fp

static const char *	vert

static const char *	yuva_to_rgb_fp

Detailed Description

Author: Lukas Hejtmanek xhejt.nosp@m.man@.nosp@m.ics.m.nosp@m.uni..nosp@m.cz; Milos Liska xlisk.nosp@m.a@fi.nosp@m..muni.nosp@m..cz; Martin Piatka 44559.nosp@m.7@ma.nosp@m.il.mu.nosp@m.ni.c.nosp@m.z; Martin Pulec pulec.nosp@m.@ces.nosp@m.net.c.nosp@m.z

Definition in file gl.cpp.

Macro Definition Documentation

◆ ADAPTIVE_VSYNC

#define ADAPTIVE_VSYNC -1

Definition at line 92 of file gl.cpp.

◆ BAR_GREY_COL

#define BAR_GREY_COL (0.9)

Referenced by draw_pause().

◆ BAR_WIDTH

#define BAR_WIDTH (.01)

◆ BARS_BOTTOM

#define BARS_BOTTOM (.8)

Referenced by draw_pause().

◆ BARS_TOP

#define BARS_TOP (.9)

Referenced by draw_pause().

◆ DEFAULT_WIN_NAME

#define DEFAULT_WIN_NAME "Ultragrid - OpenGL Display"

Definition at line 87 of file gl.cpp.

Referenced by display_gl_init_opengl().

◆ FEATURE_PRESENT

#define FEATURE_PRESENT ( x )

Value:

(strcmp(STRINGIFY(x), "1") == 0 ? "on" : "off")

STRINGIFY

#define STRINGIFY(A)

Definition macros.h:48

Definition at line 517 of file gl.cpp.

Referenced by gl_show_help().

◆ GL_DEINTERLACE_IMPOSSIBLE_MSG_ID

#define GL_DEINTERLACE_IMPOSSIBLE_MSG_ID 0x38e52705

Definition at line 88 of file gl.cpp.

◆ GL_DISABLE_10B_OPT_PARAM_NAME

#define GL_DISABLE_10B_OPT_PARAM_NAME "gl-disable-10b"

Definition at line 89 of file gl.cpp.

Referenced by display_gl_get_property(), display_gl_init_opengl(), display_gl_reconfigure(), and gl_show_help().

◆ GL_WINDOW_HINT_OPT_PARAM_NAME

#define GL_WINDOW_HINT_OPT_PARAM_NAME "glfw-window-hint"

Todo: TOREMOVE

Definition at line 90 of file gl.cpp.

Referenced by display_gl_set_window_hints().

◆ LEFT_BAR_LEFT

#define LEFT_BAR_LEFT (-.9)

Referenced by draw_pause().

◆ LEFT_BAR_RIGHT

#define LEFT_BAR_RIGHT (LEFT_BAR_LEFT + BAR_WIDTH)

Referenced by draw_pause().

◆ MAGIC_GL

#define MAGIC_GL 0x1331018e

Definition at line 85 of file gl.cpp.

Referenced by display_gl_done(), display_gl_getf(), display_gl_putf(), and gl_reconfigure_screen().

◆ MAX_BUFFER_SIZE

#define MAX_BUFFER_SIZE 1

Definition at line 91 of file gl.cpp.

Referenced by display_gl_putf().

◆ MOD_NAME

#define MOD_NAME "[GL] "

◆ RIGHT_BAR_LEFT

#define RIGHT_BAR_LEFT (LEFT_BAR_RIGHT + BAR_WIDTH)

Referenced by draw_pause().

◆ RIGHT_BAR_RIGHT

#define RIGHT_BAR_RIGHT (RIGHT_BAR_LEFT + BAR_WIDTH)

Referenced by draw_pause().

◆ SINGLE_BUF

#define SINGLE_BUF 0xFF

Definition at line 94 of file gl.cpp.

Referenced by display_gl_init_opengl(), display_gl_parse_fmt(), gl_process_frames(), and gl_resize().

◆ SYSTEM_VSYNC

#define SYSTEM_VSYNC 0xFE

Definition at line 93 of file gl.cpp.

Referenced by display_gl_parse_fmt(), and display_gl_set_sync_on_vblank().

Function Documentation

◆ ADD_TO_PARAM() [1/2]

ADD_TO_PARAM	(	GL_DISABLE_10B_OPT_PARAM_NAME	,
		"* " GL_DISABLE_10B_OPT_PARAM_NAME "\n" " Disable 10 bit codec processing to improve performance\n"	)

◆ ADD_TO_PARAM() [2/2]

ADD_TO_PARAM ( GL_WINDOW_HINT_OPT_PARAM_NAME )

◆ check_rpi_pbo_quirks()

static bool check_rpi_pbo_quirks ( )

static

Definition at line 1939 of file gl.cpp.

{
#if ! defined __linux__
        return false;
#else
        std::ifstream cpuinfo("/proc/cpuinfo");
        if (!cpuinfo)
                return false;

        bool detected_rpi = false;
        bool detected_bcm2835 = false;
        std::string line;
        while (std::getline(cpuinfo, line) && !detected_rpi) {
                detected_bcm2835 |= line.find("BCM2835") != std::string::npos;
                detected_rpi |= line.find("Raspberry Pi") != std::string::npos;
        }

        return detected_rpi || detected_bcm2835;
#endif
}

Referenced by display_gl_init().

◆ display_gl_check_gl_version()

static bool display_gl_check_gl_version ( )

static

Definition at line 1446 of file gl.cpp.

                                          {
        auto version = (const char *) glGetString(GL_VERSION);
        if (!version) {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "Unable to get OpenGL version!\n");
                return false;
        }
        if (atof(version) < 2.0) {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "ERROR: OpenGL 2.0 is not supported, try updating your drivers...\n");
                return false;
        }
        log_msg(LOG_LEVEL_INFO, MOD_NAME "OpenGL 2.0 is supported...\n");
        MSG(VERBOSE, "Supported OpenGL version is %s.\n", version);
        return true;
}

References LOG_LEVEL_ERROR, LOG_LEVEL_INFO, log_msg(), MOD_NAME, and MSG.

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ display_gl_cleanup_opengl()

static void display_gl_cleanup_opengl ( struct state_gl * s )

static

Releases resources allocated with display_gl_init_opengl. After this function, the resource references are invalid.

Definition at line 1778 of file gl.cpp.

                                                         {
        glfwMakeContextCurrent(s->window);

        for (auto &it : s->PHandles) {
                glDeleteProgram(it.second);
        }
        glDeleteTextures(1, &s->texture_display);
        glDeleteTextures(1, &s->texture_raw);
        glDeleteFramebuffersEXT(1, &s->fbo_id);
        glDeleteBuffersARB(1, &s->pbo_id);
        glfwDestroyWindow(s->window);

        if (s->syphon_spout) {
#ifdef HAVE_SYPHON
                syphon_server_unregister(s->syphon_spout);
#elif defined HAVE_SPOUT
                spout_sender_unregister(s->syphon_spout);
#endif
        }
}

References state_gl::fbo_id, state_gl::pbo_id, state_gl::PHandles, spout_sender_unregister(), syphon_server_unregister(), state_gl::syphon_spout, state_gl::texture_display, state_gl::texture_raw, and state_gl::window.

Referenced by display_gl_done().

Here is the call graph for this function:

◆ display_gl_done()

static void display_gl_done ( void * state )

static

Definition at line 2108 of file gl.cpp.

{
        struct state_gl *s = (struct state_gl *) state;

        assert(s->magic == MAGIC_GL);

        display_gl_cleanup_opengl(s);

        while (s->free_frame_queue.size() > 0) {
                struct video_frame *buffer = s->free_frame_queue.front();
                s->free_frame_queue.pop();
                vf_free(buffer);
        }

        while (s->frame_queue.size() > 0) {
                struct video_frame *buffer = s->frame_queue.front();
                s->frame_queue.pop();
                vf_free(buffer);
        }

        vf_free(s->current_frame);

        delete s;
}

References state_gl::current_frame, display_gl_cleanup_opengl(), state_gl::frame_queue, state_gl::free_frame_queue, state_gl::magic, MAGIC_GL, state, and vf_free().

Here is the call graph for this function:

◆ display_gl_get_property()

static bool display_gl_get_property	(	void *	state,
		int	property,
		void *	val,
		size_t *	len )

static

Definition at line 2054 of file gl.cpp.

{
        auto *s = (struct state_gl *) state;
        enum interlacing_t supported_il_modes[] = {PROGRESSIVE, INTERLACED_MERGED, SEGMENTED_FRAME};
        int rgb_shift[] = {0, 8, 16};

        switch (property) {
        case DISPLAY_PROPERTY_CODECS: {
                UG_ASSERT(*len >= sizeof gl_supp_codecs);
                auto filter_codecs = [s](codec_t c) {
                        if (get_bits_per_component(c) > DEPTH8 &&
                            commandline_params.find(
                                GL_DISABLE_10B_OPT_PARAM_NAME) !=
                                commandline_params.end()) { // option to disable
                                                            // 10-bit processing
                                return false;
                        }
                        if (glsl_programs.find(c) != glsl_programs.end() &&
                            s->PHandles.find(c) ==
                                s->PHandles.end()) { // GLSL shader needed but
                                                     // compilation failed
                                return false;
                        }
                        if (c == HW_VDPAU && !s->vdp_interop) {
                                return false;
                        }
                        return true;
                };
                const codec_t *endptr =
                    copy_if(begin(gl_supp_codecs), end(gl_supp_codecs),
                            (codec_t *) val, filter_codecs);
                *len = (const char *) endptr - (char *) val;
                return true;
        }
        case DISPLAY_PROPERTY_RGB_SHIFT:
                UG_ASSERT(*len >= sizeof rgb_shift);
                memcpy(val, rgb_shift, sizeof(rgb_shift));
                *len = sizeof(rgb_shift);
                return true;
        case DISPLAY_PROPERTY_BUF_PITCH:
                UG_ASSERT(*len >= sizeof(int));
                *(int *) val = PITCH_DEFAULT;
                *len         = sizeof(int);
                return true;
        case DISPLAY_PROPERTY_SUPPORTED_IL_MODES:
                UG_ASSERT(*len >= sizeof supported_il_modes);
                memcpy(val, supported_il_modes, sizeof(supported_il_modes));
                *len = sizeof(supported_il_modes);
                return true;
        default:
                return false;
        }
}

References commandline_params, DEPTH8, DISPLAY_PROPERTY_BUF_PITCH, DISPLAY_PROPERTY_CODECS, DISPLAY_PROPERTY_RGB_SHIFT, DISPLAY_PROPERTY_SUPPORTED_IL_MODES, get_bits_per_component(), GL_DISABLE_10B_OPT_PARAM_NAME, gl_supp_codecs, glsl_programs, HW_VDPAU, INTERLACED_MERGED, len, PITCH_DEFAULT, PROGRESSIVE, property, SEGMENTED_FRAME, state, UG_ASSERT, and val.

Here is the call graph for this function:

◆ display_gl_getf()

static struct video_frame * display_gl_getf ( void * state )

static

Definition at line 2133 of file gl.cpp.

{
        struct state_gl *s = (struct state_gl *) state;
        assert(s->magic == MAGIC_GL);

        lock_guard<mutex> lock(s->lock);

        while (s->free_frame_queue.size() > 0) {
                struct video_frame *buffer = s->free_frame_queue.front();
                s->free_frame_queue.pop();
                if (video_desc_eq(video_desc_from_frame(buffer), s->current_desc)) {
                        return buffer;
                }
                vf_free(buffer);
        }

        struct video_frame *buffer = vf_alloc_desc_data(s->current_desc);
        vf_clear(buffer);
        return buffer;
}

References state_gl::current_desc, state_gl::free_frame_queue, state_gl::lock, state_gl::magic, MAGIC_GL, state, vf_alloc_desc_data(), vf_clear(), vf_free(), video_desc_eq(), and video_desc_from_frame().

Here is the call graph for this function:

◆ display_gl_init()

static void * display_gl_init	(	struct module *	parent,
		const char *	fmt,
		unsigned int	flags )

static

Definition at line 782 of file gl.cpp.

                                                                                          {
        UNUSED(flags);

        struct state_gl *s = nullptr;
        try {
                s = new state_gl(parent);
        } catch (...) {
                return nullptr;
        }

        if (fmt != NULL) {
                char *tmp = strdup(fmt);
                void *ret = nullptr;
                try {
                        ret = display_gl_parse_fmt(s, tmp);
                } catch (std::invalid_argument &e) {
                        LOG(LOG_LEVEL_ERROR) << MOD_NAME << "Invalid numeric value for an option!\n";
                }
                free(tmp);
                if (ret != s) { // ret is either nullptr or INIT_NOERR (help requested)
                        delete s;
                        return ret;
                }
        }

        s->use_pbo = s->use_pbo == -1 ? !check_rpi_pbo_quirks() : s->use_pbo; // don't use PBO for Raspberry Pi (better performance)

        log_msg(LOG_LEVEL_INFO,"GL setup: fullscreen: %s, deinterlace: %s\n",
                        s->fs ? "ON" : "OFF", state_gl::deint_to_string(s->deinterlace));

        gl_load_splashscreen(s);
        for (auto const &i : keybindings) {
                if (i.first == 'q') { // don't report 'q' to avoid accidental close - user can use Ctrl-c there
                        continue;
                }
                char msg[18];
                snprintf(msg, sizeof msg, "%" PRIx64, i.first);
                keycontrol_register_key(&s->mod, i.first, msg, i.second.data());
        }

#if GLFW_VERSION_MAJOR < 3 || (GLFW_VERSION_MAJOR == 3 && GLFW_VERSION_MINOR < 3)
        if(!s->init_hints.empty()){
                log_msg(LOG_LEVEL_WARNING, "GLFW version < 3.3 doesn't support init hints. Ignoring them.\n");
        }
#else
        for (auto const &hint : s->init_hints) {
                glfwInitHint(hint.first, hint.second);
        }
#endif

        if (!display_gl_init_opengl(s)) {
                delete s;
                return nullptr;
        }

        return (void*)s;
}

References state_gl::state_gl(), check_rpi_pbo_quirks(), state_gl::deint_to_string(), state_gl::deinterlace, display_gl_init_opengl(), display_gl_parse_fmt(), flags, fmt, state_gl::fs, gl_load_splashscreen(), state_gl::init_hints, keybindings, keycontrol_register_key(), LOG, LOG_LEVEL_ERROR, LOG_LEVEL_INFO, LOG_LEVEL_WARNING, log_msg(), state_gl::mod, MOD_NAME, parent, UNUSED, and state_gl::use_pbo.

Here is the call graph for this function:

◆ display_gl_init_opengl()

static bool display_gl_init_opengl ( struct state_gl * s )

static

Initializes OpenGL stuff. If this function succeeds, display_gl_cleanup_opengl() needs to be called to release resources.

Todo: remove/revert when no needed (see particular commit message

Definition at line 1638 of file gl.cpp.

{
        glfwSetErrorCallback(glfw_print_error);

        if (ref_count_init_once<int>()(glfwInit, glfw_init_count)
                .value_or(GLFW_TRUE) == GLFW_FALSE) {
                LOG(LOG_LEVEL_ERROR) << "Cannot initialize GLFW!\n";
                return false;
        }

        if (s->req_monitor_idx != -1) {
                int           count = 0;
                GLFWmonitor **mon   = glfwGetMonitors(&count);
                if (s->req_monitor_idx < 0 || s->req_monitor_idx >= count) {
                        MSG(ERROR, "Wrong monitor index: %d (max %d)\n",
                            s->req_monitor_idx, count - 1);
                        return false;
                }
                s->monitor = mon[s->req_monitor_idx];
        }

        if (s->monitor == nullptr) {
                s->monitor = glfwGetPrimaryMonitor();
                if (s->monitor == nullptr) {
                        LOG(LOG_LEVEL_WARNING) << MOD_NAME << "No monitor found! Continuing but full-screen will be disabled.\n";
                }
        }

        if (commandline_params.find(GL_DISABLE_10B_OPT_PARAM_NAME) == commandline_params.end()) {
                for (auto const & bits : {GLFW_RED_BITS, GLFW_GREEN_BITS, GLFW_BLUE_BITS}) {
                        glfwWindowHint(bits, 10);
                }
        }

        set_mac_color_space();
        glfwWindowHint(GLFW_DOUBLEBUFFER, s->vsync == SINGLE_BUF ? GLFW_FALSE : GLFW_TRUE);
        struct video_frame *splash = get_splashscreen();
        int width = splash->tiles[0].width;
        int height = splash->tiles[0].height;
        vf_free(splash);
        GLFWmonitor *mon = s->fs ? s->monitor : nullptr;
        if (s->fixed_size && s->fixed_w && s->fixed_h) {
                width = s->fixed_w;
                height = s->fixed_h;
        } else if (mon != nullptr && s->modeset == state_gl::modeset_t::NOMODESET) {
                const GLFWvidmode* mode = glfwGetVideoMode(mon);
                width = mode->width;
                height = mode->height;
                glfwWindowHint(GLFW_REFRESH_RATE, mode->refreshRate);
        }
        display_gl_set_window_hints(s);
        if ((s->window = glfwCreateWindow(width, height, IF_NOT_NULL_ELSE(get_commandline_param("window-title"), DEFAULT_WIN_NAME), nullptr, nullptr)) == nullptr) {
                return false;
        }
        if (s->pos_x != INT_MIN) {
                const int y = s->pos_y == INT_MIN ? 0 : s->pos_y;
                glfwSetWindowPos(s->window, s->pos_x, y);
        }
        if (s->noresizable) {
                glfwSetWindowSizeLimits(s->window, width, height, width,
                                        height);
        }
        if (mon != nullptr) {
                glfwSetWindowMonitor(s->window, mon, GLFW_DONT_CARE, GLFW_DONT_CARE, width, height, get_refresh_rate(s->modeset, mon, GLFW_DONT_CARE));
        }
        glfw_print_video_mode(s);
        glfwSetWindowUserPointer(s->window, s);
        set_gamma(s);
        glfwSetInputMode(s->window, GLFW_CURSOR, s->show_cursor == state_gl::SC_TRUE ?  GLFW_CURSOR_NORMAL : GLFW_CURSOR_HIDDEN);
        glfwMakeContextCurrent(s->window);
        glfwSetKeyCallback(s->window, glfw_key_callback);
        glfwSetCursorPosCallback(s->window, glfw_mouse_callback);
        glfwSetWindowCloseCallback(s->window, glfw_close_callback);
        glfwSetFramebufferSizeCallback(s->window, gl_resize);
        glfwSetWindowRefreshCallback(s->window, display_gl_render_last);

#if defined __linux__ || defined _WIN32
        if (GLenum err = glewInit()) {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "GLEW Error: %s (err %d)\n", glewGetError(err), err);
                if (err != GLEW_ERROR_NO_GLX_DISPLAY) { // do not fail on error 4 (on Wayland), which can be suppressed
                        return false;
                }
        }
#endif
        if (!display_gl_check_gl_version()) {
                glfwDestroyWindow(s->window);
                s->window = nullptr;
                return false;
        }
        display_gl_print_depth();

        glClearColor( 0.0f, 0.0f, 0.0f, 1.0f );
        glEnable( GL_TEXTURE_2D );

        glGenTextures(1, &s->texture_display);
        glBindTexture(GL_TEXTURE_2D, s->texture_display);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);

        glGenTextures(1, &s->texture_raw);
        glBindTexture(GL_TEXTURE_2D, s->texture_raw);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);

        for (auto &it : glsl_programs) {
                GLuint prog = gl_substitute_compile_link(vert, it.second);
                if (prog == 0U) {
                        log_msg(LOG_LEVEL_ERROR, MOD_NAME "Unable to link program for %s!\n", get_codec_name(it.first));
                        handle_error(1);
                        continue;
                }
                s->PHandles[it.first] = prog;
        }

        if ((s->PHandle_deint = gl_substitute_compile_link(vert, deinterlace_fp)) == 0) {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "Unable to compile deinterlace program!\n");
                handle_error(1);
        }

        glPixelStorei(GL_UNPACK_ALIGNMENT, 1); // set row alignment to 1 byte instead of default
                                               // 4 bytes which won't work on row-unaligned RGB

        // Create fbo
        glGenFramebuffersEXT(1, &s->fbo_id);

        glGenBuffersARB(1, &s->pbo_id);

        s->vdp_interop = vdp_interop_supported();

        glfwMakeContextCurrent(nullptr);

        return true;
}

References commandline_params, count, DEFAULT_WIN_NAME, deinterlace_fp, display_gl_check_gl_version(), display_gl_print_depth(), display_gl_render_last(), display_gl_set_window_hints(), state_gl::fbo_id, state_gl::fixed_h, state_gl::fixed_size, state_gl::fixed_w, state_gl::fs, get_codec_name(), get_commandline_param(), get_refresh_rate(), get_splashscreen(), GL_DISABLE_10B_OPT_PARAM_NAME, gl_resize(), gl_substitute_compile_link(), glfw_close_callback(), glfw_init_count, glfw_key_callback(), glfw_mouse_callback(), glfw_print_error(), glfw_print_video_mode(), glsl_programs, handle_error(), tile::height, IF_NOT_NULL_ELSE, LOG, LOG_LEVEL_ERROR, LOG_LEVEL_WARNING, log_msg(), MOD_NAME, mode, state_gl::modeset, state_gl::monitor, MSG, state_gl::NOMODESET, state_gl::noresizable, state_gl::pbo_id, state_gl::PHandle_deint, state_gl::PHandles, state_gl::pos_x, state_gl::pos_y, state_gl::req_monitor_idx, state_gl::SC_TRUE, set_gamma(), set_mac_color_space(), state_gl::show_cursor, SINGLE_BUF, state_gl::texture_display, state_gl::texture_raw, video_frame::tiles, state_gl::vdp_interop, vdp_interop_supported(), vert, vf_free(), state_gl::vsync, tile::width, and state_gl::window.

Referenced by display_gl_init().

Here is the call graph for this function:

◆ display_gl_parse_fmt()

static void * display_gl_parse_fmt	(	struct state_gl *	s,
		char *	ptr )

static

Definition at line 692 of file gl.cpp.

                                                                 {
        if (strstr(ptr, "help") != 0) {
                gl_show_help(strcmp(ptr, "fullhelp") == 0);
                return INIT_NOERR;
        }

        char *tok, *save_ptr = NULL;

        while((tok = strtok_r(ptr, ":", &save_ptr)) != NULL) {
                if (!strcmp(tok, "d") || !strcmp(tok, "dforce")) {
                        s->deinterlace = !strcmp(tok, "d") ? state_gl::deint::on : state_gl::deint::force;
                } else if(!strncmp(tok, "fs", 2)) {
                        s->fs = true;
                        if (char *val = strchr(tok, '=')) {
                                s->req_monitor_idx = stoi(val + 1);
                        }
                } else if(strstr(tok, "modeset") != nullptr) {
                        if (strcmp(tok, "nomodeset") != 0) {
                                if (char *val = strchr(tok, '=')) {
                                        val += 1;
                                        s->modeset = strcmp(val, "size") == 0 ? state_gl::MODESET_SIZE_ONLY : (enum state_gl::modeset_t) stoi(val);
                                } else {
                                        s->modeset = state_gl::MODESET;
                                }
                        }
                } else if(!strncmp(tok, "aspect=", strlen("aspect="))) {
                        s->video_aspect = atof(tok + strlen("aspect="));
                        char *pos = strchr(tok,'/');
                        if(pos) s->video_aspect /= atof(pos + 1);
                } else if(!strcasecmp(tok, "nodecorate")) {
                        s->window_hints[GLFW_DECORATED] =  GLFW_FALSE;
                } else if(!strcasecmp(tok, "novsync")) {
                        s->vsync = 0;
                } else if(!strcasecmp(tok, "single")) {
                        LOG(LOG_LEVEL_WARNING) << MOD_NAME "Single-buffering is not recommended and may not work, also GLFW discourages its use.\n";
                        s->vsync = SINGLE_BUF;
                } else if (!strncmp(tok, "vsync=", strlen("vsync="))) {
                        if (toupper((tok + strlen("vsync="))[0]) == 'D') {
                                s->vsync = SYSTEM_VSYNC;
                        } else {
                                s->vsync = atoi(tok + strlen("vsync="));
                        }
                } else if (!strcasecmp(tok, "cursor")) {
                        s->show_cursor = state_gl::SC_TRUE;
                } else if (strstr(tok, "syphon") == tok || strstr(tok, "spout") == tok) {
#if defined HAVE_SYPHON || defined HAVE_SPOUT
                        if (strchr(tok, '=')) {
                                s->syphon_spout_srv_name = strchr(tok, '=') + 1;
                        } else {
                                s->syphon_spout_srv_name = "UltraGrid";
                        }
#else
                        log_msg(LOG_LEVEL_ERROR, MOD_NAME "Syphon/Spout support not compiled in.\n");
                        return nullptr;
#endif
                } else if (strstr(tok, "gamma=") == tok) {
                        s->gamma = stof(strchr(tok, '=') + 1);
                        if (strchr(tok, '/')) {
                                s->gamma /= stof(strchr(tok, '/') + 1);
                        }
                } else if (!strcasecmp(tok, "hide-window")) {
                        s->window_hints[GLFW_VISIBLE] = GLFW_FALSE;
                } else if (strcasecmp(tok, "pbo") == 0 || strcasecmp(tok, "nopbo") == 0) {
                        s->use_pbo = strcasecmp(tok, "pbo") == 0 ? 1 : 0;
                } else if (strstr(tok, "size=") == tok ||
                           strstr(tok, "fixed_size=") == tok) {
                        if (!set_size(s, tok)) {
                                return nullptr;
                        }
                } else if (strcmp(tok, "fixed_size") == 0) {
                        s->fixed_size = true;
                } else if (strcmp(tok, "noresizable") == 0) {
                        s->noresizable = true;
                } else if (strstr(tok, "window_hint=") == tok) {
                        parse_hints(s, true, strchr(tok, '=') + 1);
                } else if (strstr(tok, "init_hint=") == tok) {
                        parse_hints(s, false, strchr(tok, '=') + 1);
                } else if (strcmp(tok, "list_hints") == 0) {
                        list_hints();
                        return nullptr;
                } else {
                        log_msg(LOG_LEVEL_ERROR, MOD_NAME "Unknown option: %s\n", tok);
                        return nullptr;
                }
                ptr = NULL;
        }

        return s;
}

References state_gl::deinterlace, state_gl::fixed_size, state_gl::force, state_gl::fs, state_gl::gamma, gl_show_help(), INIT_NOERR, list_hints(), LOG, LOG_LEVEL_ERROR, LOG_LEVEL_WARNING, log_msg(), MOD_NAME, state_gl::MODESET, state_gl::modeset, state_gl::MODESET_SIZE_ONLY, state_gl::noresizable, state_gl::on, parse_hints(), state_gl::req_monitor_idx, state_gl::SC_TRUE, set_size(), state_gl::show_cursor, SINGLE_BUF, state_gl::syphon_spout_srv_name, SYSTEM_VSYNC, state_gl::use_pbo, val, state_gl::video_aspect, state_gl::vsync, and state_gl::window_hints.

Referenced by display_gl_init().

Here is the call graph for this function:

◆ display_gl_print_depth()

static void display_gl_print_depth ( )

static

Definition at line 1461 of file gl.cpp.

                                     {
        int bits[3];
        glGetIntegerv(GL_RED_BITS, &bits[0]);
        glGetIntegerv(GL_GREEN_BITS, &bits[1]);
        glGetIntegerv(GL_BLUE_BITS, &bits[2]);
        LOG(LOG_LEVEL_INFO) << MOD_NAME << "Buffer depth - R: " << bits[0] << "b, G: " << bits[1] << "b, B: " << bits[2] << "b\n";
}

References LOG, LOG_LEVEL_INFO, and MOD_NAME.

Referenced by display_gl_init_opengl().

◆ display_gl_process_key()

static bool display_gl_process_key	(	struct state_gl *	s,
		long long int	key )

static

Definition at line 1353 of file gl.cpp.

{
        verbose_msg(MOD_NAME "Key %lld pressed\n", key);
        switch (key) {
                case 'f':
                        {
                                s->fs = !s->fs;
                                int width = s->current_display_desc.width;
                                int height = s->current_display_desc.height;
                                GLFWmonitor *mon = s->fs ? s->monitor : nullptr;
                                if (mon && s->modeset == state_gl::modeset_t::NOMODESET) {
                                        const GLFWvidmode* mode = glfwGetVideoMode(mon);
                                        width = mode->width;
                                        height = mode->height;
                                }
                                int refresh_rate = get_refresh_rate(s->modeset, mon, s->current_display_desc.fps);
                                glfwSetWindowMonitor(s->window, mon, GLFW_DONT_CARE, GLFW_DONT_CARE, width, height, refresh_rate);
                                LOG(LOG_LEVEL_NOTICE) << MOD_NAME << "Setting fullscreen: " << (s->fs ? "ON" : "OFF") << "\n";
                                set_gamma(s);
                                glfw_print_video_mode(s);
                                break;
                        }
                case 'q':
                        exit_uv(0);
                        break;
                case K_ALT('d'):
                        s->deinterlace = s->deinterlace == state_gl::deint::off ? state_gl::deint::on : state_gl::deint::off;
                        MSG(NOTICE, "Deinterlacing: %s\n",
                            state_gl::deint_to_string(s->deinterlace));
                        break;
                case K_ALT('p'):
                        s->paused = !s->paused;
                        MSG(NOTICE, "%s\n",
                            s->paused ? "Paused (press 'Alt-p' to unpause)"
                                      : "Unpaused");
                        break;
                case K_ALT('s'):
                        screenshot(s->current_frame);
                        break;
                case K_ALT('m'):
                        s->show_cursor = (state_gl::show_cursor_t) (((int) s->show_cursor + 1) % 3);
                        LOG(LOG_LEVEL_NOTICE) << MOD_NAME << "Show cursor (0 - on, 1 - off, 2 - autohide): " << s->show_cursor << "\n";
                        glfwSetInputMode(s->window, GLFW_CURSOR, s->show_cursor == state_gl::SC_TRUE ? GLFW_CURSOR_NORMAL : GLFW_CURSOR_HIDDEN);
                        break;
                case K_CTRL_UP:
                        s->window_size_factor *= 1.1;
                        glfw_resize_window(s->window, s->fs, s->current_display_desc.height, s->aspect, s->current_display_desc.fps, s->window_size_factor);
                        break;
                case K_CTRL_DOWN:
                        s->window_size_factor /= 1.1;
                        glfw_resize_window(s->window, s->fs, s->current_display_desc.height, s->aspect, s->current_display_desc.fps, s->window_size_factor);
                        break;
                default:
                        return false;
        }

        return true;
}

References state_gl::aspect, state_gl::current_frame, state_gl::deint_to_string(), state_gl::deinterlace, exit_uv(), state_gl::fs, get_refresh_rate(), glfw_print_video_mode(), glfw_resize_window(), K_ALT, K_CTRL_DOWN, K_CTRL_UP, key, LOG, LOG_LEVEL_NOTICE, MOD_NAME, mode, state_gl::modeset, state_gl::monitor, MSG, state_gl::NOMODESET, state_gl::off, state_gl::on, state_gl::paused, state_gl::SC_TRUE, screenshot(), set_gamma(), state_gl::show_cursor, verbose_msg, state_gl::window, and state_gl::window_size_factor.

Referenced by gl_process_frames(), and glfw_key_callback().

Here is the call graph for this function:

◆ display_gl_putf()

static bool display_gl_putf	(	void *	state,
		struct video_frame *	frame,
		long long	timeout )

static

Definition at line 2154 of file gl.cpp.

{
        struct state_gl *s = (struct state_gl *) state;

        assert(s->magic == MAGIC_GL);

        unique_lock<mutex> lk(s->lock);

        if(!frame) {
                glfwSetWindowShouldClose(s->window, GLFW_TRUE);
                s->frame_queue.push(frame);
                lk.unlock();
                s->new_frame_ready_cv.notify_one();
                return true;
        }

        switch (timeout_ns) {
                case PUTF_DISCARD:
                        vf_recycle(frame);
                        s->free_frame_queue.push(frame);
                        return 0;
                case PUTF_BLOCKING:
                        s->frame_consumed_cv.wait(lk, [s]{return s->frame_queue.size() < MAX_BUFFER_SIZE;});
                        break;
                case PUTF_NONBLOCK:
                        break;
                default:
                        s->frame_consumed_cv.wait_for(lk, timeout_ns * 1ns, [s]{return s->frame_queue.size() < MAX_BUFFER_SIZE;});
                        break;
        }
        if (s->frame_queue.size() >= MAX_BUFFER_SIZE) {
                LOG(LOG_LEVEL_INFO) << MOD_NAME << "1 frame(s) dropped!\n";
                vf_recycle(frame);
                s->free_frame_queue.push(frame);
                return false;
        }
        s->frame_queue.push(frame);

        lk.unlock();
        s->new_frame_ready_cv.notify_one();

        return !s->paused;
}

References frame, state_gl::frame_consumed_cv, state_gl::frame_queue, state_gl::free_frame_queue, state_gl::lock, LOG, LOG_LEVEL_INFO, state_gl::magic, MAGIC_GL, MAX_BUFFER_SIZE, MOD_NAME, state_gl::new_frame_ready_cv, state_gl::paused, PUTF_BLOCKING, PUTF_DISCARD, PUTF_NONBLOCK, state, vf_recycle(), and state_gl::window.

Referenced by display_gl_render_last().

Here is the call graph for this function:

◆ display_gl_reconfigure()

static bool display_gl_reconfigure	(	void *	state,
		struct video_desc	desc )

static

This function just sets new video description.

Definition at line 871 of file gl.cpp.

{
        struct state_gl *s = (struct state_gl *) state;

        assert(find(begin(gl_supp_codecs), end(gl_supp_codecs),
                    desc.color_spec) != end(gl_supp_codecs));
        if (get_bits_per_component(desc.color_spec) > 8) {
                LOG(LOG_LEVEL_WARNING) << MOD_NAME "Displaying 10+ bits - performance degradation may occur, consider '--param " GL_DISABLE_10B_OPT_PARAM_NAME "'\n";
        }
        if (desc.interlacing == INTERLACED_MERGED && s->deinterlace == state_gl::deint::off) {
                LOG(LOG_LEVEL_WARNING) << MOD_NAME "Receiving interlaced video but deinterlacing is off - suggesting toggling it on (press 'd' or pass cmdline option)\n";
        }

        s->current_desc = desc;

        return true;
}

References video_desc::color_spec, state_gl::current_desc, state_gl::deinterlace, desc, get_bits_per_component(), GL_DISABLE_10B_OPT_PARAM_NAME, gl_supp_codecs, INTERLACED_MERGED, video_desc::interlacing, LOG, LOG_LEVEL_WARNING, MOD_NAME, state_gl::off, and state.

Referenced by gl_load_splashscreen().

Here is the call graph for this function:

◆ display_gl_render_last()

static void display_gl_render_last ( GLFWwindow * win )

static

Definition at line 1469 of file gl.cpp.

                                                    {
        auto *s = (struct state_gl *) glfwGetWindowUserPointer(win);
        unique_lock<mutex> lk(s->lock);
        auto *f = s->current_frame;
        s->current_frame = nullptr;
        lk.unlock();
        if (!f) {
                return;
        }
        // redraw last frame
        display_gl_putf(s, f, PUTF_NONBLOCK);
}

References display_gl_putf(), and PUTF_NONBLOCK.

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ display_gl_run()

static void display_gl_run ( void * arg )

static

Definition at line 1799 of file gl.cpp.

{
        struct state_gl *s =
                (struct state_gl *) arg;

        glfwMakeContextCurrent(s->window);
        while (!glfwWindowShouldClose(s->window)) {
                glfwPollEvents();
                gl_process_frames(s);
        }
        glfwMakeContextCurrent(nullptr);
}

References gl_process_frames(), and state_gl::window.

Here is the call graph for this function:

◆ display_gl_set_sync_on_vblank()

static void display_gl_set_sync_on_vblank ( int value )

static

Definition at line 940 of file gl.cpp.

                                                     {
        if (value == SYSTEM_VSYNC) {
                return;
        }
        glfwSwapInterval(value);
}

References SYSTEM_VSYNC.

Referenced by gl_reconfigure_screen().

◆ display_gl_set_window_hints()

static void display_gl_set_window_hints ( struct state_gl * s )

static

Todo: TOREMOVE

Definition at line 1548 of file gl.cpp.

{
        for (auto const &hint : s->window_hints) {
                glfwWindowHint(hint.first, hint.second);
        }
#ifndef _WIN32
        if (s->noresizable) {
                glfwWindowHint(GLFW_RESIZABLE, GLFW_FALSE);
        }
#endif

        const char *hints = get_commandline_param(GL_WINDOW_HINT_OPT_PARAM_NAME);
        if (hints == nullptr) {
                return;
        }
        vector<char> data(strlen(hints) + 1);
        copy(hints, hints + strlen(hints) + 1, data.begin());
        char *hints_c = data.data();
        char *tmp = hints_c;
        char *tok = nullptr;
        char *save_ptr = nullptr;
        while ((tok = strtok_r(tmp, ":", &save_ptr)) != nullptr) {
                tmp = nullptr;
                if (strchr(tok, '=') == nullptr) {
                        LOG(LOG_LEVEL_ERROR) << MOD_NAME << "Malformed window hint - missing value (expected <k>=<v>).\n";
                        continue;
                }
                int key = stoi(tok, 0, 0);
                int val = stoi(strchr(tok, '=') + 1, 0, 0);
                glfwWindowHint(key, val);
        }
}

References get_commandline_param(), GL_WINDOW_HINT_OPT_PARAM_NAME, key, LOG, LOG_LEVEL_ERROR, MOD_NAME, state_gl::noresizable, val, and state_gl::window_hints.

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ draw_pause()

static void draw_pause ( )

static

draw pause symbol (2 vertical bars) to the lefttop part of the frame

Definition at line 1184 of file gl.cpp.

{
#define BAR_WIDTH       (.01)
#define LEFT_BAR_LEFT   (-.9)
#define LEFT_BAR_RIGHT  (LEFT_BAR_LEFT + BAR_WIDTH)
#define RIGHT_BAR_LEFT  (LEFT_BAR_RIGHT + BAR_WIDTH)
#define RIGHT_BAR_RIGHT (RIGHT_BAR_LEFT + BAR_WIDTH)
#define BARS_TOP        (.9)
#define BARS_BOTTOM     (.8)
#define BAR_GREY_COL    (0.9)
        glBindTexture(GL_TEXTURE_2D, 0);
        glColor3f(BAR_GREY_COL, BAR_GREY_COL, BAR_GREY_COL);
        glMatrixMode(GL_MODELVIEW);
        glPushMatrix();
        glLoadIdentity();
        glMatrixMode(GL_PROJECTION);
        glPushMatrix();
        glLoadIdentity();
        glBegin(GL_QUADS);
        glVertex2f(LEFT_BAR_LEFT, BARS_BOTTOM);  // bottom left
        glVertex2f(LEFT_BAR_RIGHT, BARS_BOTTOM); // bottom right
        glVertex2f(LEFT_BAR_RIGHT, BARS_TOP);    // top right
        glVertex2f(LEFT_BAR_LEFT, BARS_TOP);     // top left
        glEnd();
        glBegin(GL_QUADS);
        glVertex2f(RIGHT_BAR_LEFT, BARS_BOTTOM);
        glVertex2f(RIGHT_BAR_RIGHT, BARS_BOTTOM);
        glVertex2f(RIGHT_BAR_RIGHT, BARS_TOP);
        glVertex2f(RIGHT_BAR_LEFT, BARS_TOP);
        glEnd();
        glColor4f(1, 1, 1, 1);
        glMatrixMode(GL_PROJECTION);
        glPopMatrix();
        glMatrixMode(GL_MODELVIEW);
        glPopMatrix();
        gl_check_error();
}

References BAR_GREY_COL, BARS_BOTTOM, BARS_TOP, gl_check_error, LEFT_BAR_LEFT, LEFT_BAR_RIGHT, RIGHT_BAR_LEFT, and RIGHT_BAR_RIGHT.

Referenced by gl_process_frames().

◆ get_refresh_rate()

static int get_refresh_rate	(	enum state_gl::modeset_t	modeset,
		GLFWmonitor *	mon,
		double	video_refresh_rate )

static

Definition at line 897 of file gl.cpp.

                                                                                                         {
        if (!mon) {
                return GLFW_DONT_CARE;
        }
        switch (modeset) {
                case state_gl::modeset_t::MODESET:
                        return round(video_refresh_rate);
                case state_gl::modeset_t::MODESET_SIZE_ONLY:
                        return GLFW_DONT_CARE;
                case state_gl::modeset_t::NOMODESET: {
                        const GLFWvidmode* mode = glfwGetVideoMode(mon);
                        return mode->refreshRate;
                }
                default:
                        return static_cast<int>(modeset);
        }
}

References mode, state_gl::MODESET, state_gl::modeset, state_gl::MODESET_SIZE_ONLY, state_gl::NOMODESET, and round().

Referenced by display_gl_init_opengl(), display_gl_process_key(), and glfw_resize_window().

Here is the call graph for this function:

◆ gl_change_aspect()

static void gl_change_aspect	(	struct state_gl *	s,
		int	width,
		int	height )

static

Definition at line 1812 of file gl.cpp.

{
        double x = 1.0,
               y = 1.0;

        glViewport( 0, 0, ( GLint )width, ( GLint )height );

        glMatrixMode( GL_PROJECTION );
        glLoadIdentity( );

        double screen_ratio = (double) width / height;
        if(screen_ratio > s->aspect) {
                x = (double) height * s->aspect / width;
        } else {
                y = (double) width / (height * s->aspect);
        }
        glScalef(x, y, 1);

        glOrtho(-1,1,-1/s->aspect,1/s->aspect,10,-10);
}

References state_gl::aspect.

Referenced by gl_reconfigure_screen(), and gl_resize().

◆ gl_draw()

static void gl_draw	(	double	ratio,
		double	bottom_offset,
		bool	double_buf )

static

Definition at line 2012 of file gl.cpp.

{
        float bottom;
        gl_check_error();

        glDrawBuffer(double_buf ? GL_BACK : GL_FRONT);
        if (double_buf) {
                glClear(GL_COLOR_BUFFER_BIT);
        }

        glMatrixMode( GL_MODELVIEW );
        glLoadIdentity( );
        glTranslatef( 0.0f, 0.0f, -1.35f );

        /* Reflect that we may have higher texture than actual data
         * if we use DXT and source height was not divisible by 4
         * In normal case, there would be 1.0 */
        bottom = 1.0f - bottom_offset;

        gl_check_error();
        glBegin(GL_QUADS);
        /* Front Face */
        /* Bottom Left Of The Texture and Quad */
        glTexCoord2f( 0.0f, bottom ); glVertex2f( -1.0f, -1/ratio);
        /* Bottom Right Of The Texture and Quad */
        glTexCoord2f( 1.0f, bottom ); glVertex2f(  1.0f, -1/ratio);
        /* Top Right Of The Texture and Quad */
        glTexCoord2f( 1.0f, 0.0f ); glVertex2f(  1.0f,  1/ratio);
        /* Top Left Of The Texture and Quad */
        glTexCoord2f( 0.0f, 0.0f ); glVertex2f( -1.0f,  1/ratio);
        glEnd( );

        gl_check_error();
}

References gl_check_error.

Referenced by gl_process_frames().

◆ gl_load_splashscreen()

static void gl_load_splashscreen ( struct state_gl * s )

static

Definition at line 589 of file gl.cpp.

{
        struct video_frame *frame = get_splashscreen();
        display_gl_reconfigure(s, video_desc_from_frame(frame));
        s->frame_queue.push(frame);
}

References display_gl_reconfigure(), frame, state_gl::frame_queue, get_splashscreen(), and video_desc_from_frame().

Referenced by display_gl_init().

Here is the call graph for this function:

◆ gl_print_monitors()

static void gl_print_monitors ( bool fullhelp )

static

Definition at line 477 of file gl.cpp.

                                             {
        if (ref_count_init_once<int>()(glfwInit, glfw_init_count).value_or(GLFW_TRUE) == GLFW_FALSE) {
                LOG(LOG_LEVEL_ERROR) << "Cannot initialize GLFW!\n";
                return;
        }
        printf("\nmonitors:\n");
        int count = 0;
        GLFWmonitor **mon = glfwGetMonitors(&count);
        if (count <= 0) {
                LOG(LOG_LEVEL_ERROR) << MOD_NAME "No monitors found!\n";
        }
        GLFWmonitor *primary = glfwGetPrimaryMonitor();
        for (int i = 0; i < count; ++i) {
                col() << "\t" << (mon[i] == primary ? "*" : " ") << TBOLD(<< i <<) << ") " << glfwGetMonitorName(mon[i]);
#if GLFW_VERSION_MAJOR > 3 || (GLFW_VERSION_MAJOR == 3 && GLFW_VERSION_MINOR >= 3)
                int xpos, ypos, width, height;
                glfwGetMonitorWorkarea(mon[i], &xpos, &ypos, &width, &height);
                cout << " - " << width << "x" << height << "+" << xpos << "+" << ypos << "\n";
#else
                cout << "\n";
#endif
                if (!fullhelp) {
                        continue;
                }
                int mod_count = 0;
                const GLFWvidmode *modes = glfwGetVideoModes(mon[i], &mod_count);
                for (int mod = 0; mod < mod_count; ++mod) {
                        cout << "\t\t- " << modes[mod].width << "x" << modes[mod].height << "@" << modes[mod].refreshRate << ", bits: " <<
                                modes[mod].redBits << ", " <<
                                modes[mod].greenBits << ", " <<
                                modes[mod].blueBits << "\n";
                }
        }
        if (!fullhelp) {
                cout << "(use \"fullhelp\" to see modes)\n";
        }

        ref_count_terminate_last()(glfwTerminate, glfw_init_count);
}

References count, glfw_init_count, LOG, LOG_LEVEL_ERROR, MOD_NAME, and TBOLD.

Referenced by gl_show_help().

◆ gl_process_frames()

static void gl_process_frames ( struct state_gl * s )

static

Definition at line 1222 of file gl.cpp.

{
        struct video_frame *frame;

        struct message *msg;
        while ((msg = check_message(&s->mod))) {
                auto msg_univ = reinterpret_cast<struct msg_universal *>(msg);
                log_msg(LOG_LEVEL_VERBOSE, MOD_NAME "Received message: %s\n", msg_univ->text);
                struct response *r;
                if (strncasecmp(msg_univ->text, "win-title ", strlen("win-title ")) == 0) {
                        glfwSetWindowTitle(s->window, msg_univ->text + strlen("win-title "));
                        r = new_response(RESPONSE_OK, NULL);
                } else {
                        if (strlen(msg_univ->text) == 0) {
                                r = new_response(RESPONSE_BAD_REQUEST, "Wrong message - neither win-title nor key");
                        } else {
                                int64_t key;
                                int ret = sscanf(msg_univ->text, "%" SCNx64, &key);
                                if (ret != 1 || !display_gl_process_key(s, key)) {
                                        log_msg(LOG_LEVEL_WARNING, MOD_NAME "Unknown key received: %s\n", msg_univ->text);
                                        r = new_response(RESPONSE_BAD_REQUEST, "Wrong key received");
                                } else {
                                        r = new_response(RESPONSE_OK, NULL);
                                }
                        }
                }
                free_message(msg, r);
        }


        if (s->show_cursor == state_gl::SC_AUTOHIDE) {
                if (s->cursor_shown_from != steady_clock::time_point()) {
                        const auto now = steady_clock::now();
                        if (duration_cast<seconds>(now - s->cursor_shown_from).count() > 2) {
                                glfwSetInputMode(s->window, GLFW_CURSOR, GLFW_CURSOR_HIDDEN);
                                s->cursor_shown_from = steady_clock::time_point();
                        }
                }
        }

        {
                unique_lock<mutex> lk(s->lock);
                double timeout = min(2.0 / s->current_display_desc.fps, 0.1);
                s->new_frame_ready_cv.wait_for(lk, duration<double>(timeout), [s] {
                                return s->frame_queue.size() > 0;});
                if (s->frame_queue.size() == 0) {
                        return;
                }
                frame = s->frame_queue.front();
                if (!frame) {
                        pop_frame(s, lk);
                        return;
                }

                glfwMakeContextCurrent(s->window);

                if (s->current_frame) {
                        if (s->paused) {
                                swap(frame, s->current_frame);
                        }
                        vf_recycle(s->current_frame);
                        s->free_frame_queue.push(s->current_frame);
                }
                s->current_frame = frame;
        }

        if (!video_desc_eq(video_desc_from_frame(frame), s->current_display_desc)) {
                gl_reconfigure_screen(s, video_desc_from_frame(frame));
        }
        glBindTexture(GL_TEXTURE_2D, s->texture_display);

        gl_render(s, frame->tiles[0].data);
        if (s->deinterlace == state_gl::deint::force || (s->deinterlace == state_gl::deint::on && s->current_display_desc.interlacing == INTERLACED_MERGED)) {
                glUseProgram(s->PHandle_deint);
        }
        gl_draw(s->aspect, (s->dxt_height - s->current_display_desc.height) / (float) s->dxt_height * 2, s->vsync != SINGLE_BUF);
        glUseProgram(0);
        if (s->paused) {
                draw_pause();
        }

        // publish to Syphon/Spout
        if (s->syphon_spout) {
#ifdef HAVE_SYPHON
                syphon_server_publish(s->syphon_spout, frame->tiles[0].width, frame->tiles[0].height, s->texture_display);
#elif defined HAVE_SPOUT
                spout_sender_sendframe(s->syphon_spout, frame->tiles[0].width, frame->tiles[0].height, s->texture_display);
                glBindTexture(GL_TEXTURE_2D, s->texture_display);
#endif // HAVE_SPOUT
        }

        if (s->vsync == SINGLE_BUF) {
                glFlush();
        } else {
                glfwSwapBuffers(s->window);
        }
        log_msg(LOG_LEVEL_DEBUG, "Render buffer %dx%d\n", frame->tiles[0].width, frame->tiles[0].height);
        {
                unique_lock<mutex> lk(s->lock);
                pop_frame(s, lk);
        }
}

References state_gl::aspect, check_message(), state_gl::current_frame, state_gl::cursor_shown_from, tile::data, state_gl::deinterlace, display_gl_process_key(), draw_pause(), state_gl::dxt_height, state_gl::force, frame, state_gl::frame_queue, state_gl::free_frame_queue, free_message(), gl_draw(), gl_reconfigure_screen(), gl_render(), tile::height, INTERLACED_MERGED, key, state_gl::lock, LOG_LEVEL_DEBUG, LOG_LEVEL_VERBOSE, LOG_LEVEL_WARNING, log_msg(), min, state_gl::mod, MOD_NAME, msg, state_gl::new_frame_ready_cv, new_response(), state_gl::on, state_gl::paused, state_gl::PHandle_deint, pop_frame(), RESPONSE_BAD_REQUEST, RESPONSE_OK, state_gl::SC_AUTOHIDE, state_gl::show_cursor, SINGLE_BUF, spout_sender_sendframe(), swap(), syphon_server_publish(), state_gl::syphon_spout, state_gl::texture_display, video_frame::tiles, vf_recycle(), video_desc_eq(), video_desc_from_frame(), state_gl::vsync, tile::width, and state_gl::window.

Referenced by display_gl_run().

Here is the call graph for this function:

◆ gl_reconfigure_screen()

static void gl_reconfigure_screen	(	struct state_gl *	s,
		struct video_desc	desc )

static

This function does the actual reconfiguration of GL state.

This function must be called only from GL thread.

Definition at line 976 of file gl.cpp.

{
        assert(s->magic == MAGIC_GL);

        s->dxt_height = desc.color_spec == DXT1 || desc.color_spec == DXT1_YUV || desc.color_spec == DXT5 ?
                (desc.height + 3) / 4 * 4 : desc.height;

        s->aspect = s->video_aspect ? s->video_aspect : (double) desc.width / desc.height;

        log_msg(LOG_LEVEL_INFO, "Setting GL size %dx%d (%dx%d).\n", (int) round(s->aspect * desc.height),
                        desc.height, desc.width, desc.height);

        s->current_program = 0;

        gl_check_error();

        if(desc.color_spec == DXT1 || desc.color_spec == DXT1_YUV) {
                if (desc.color_spec == DXT1) {
                        glActiveTexture(GL_TEXTURE0 + 0);
                        glBindTexture(GL_TEXTURE_2D,s->texture_display);
                } else {
                        glActiveTexture(GL_TEXTURE0 + 2);
                        glBindTexture(GL_TEXTURE_2D,s->texture_raw);
                }
                size_t data_len = ((desc.width + 3) / 4 * 4* s->dxt_height)/2;
                char *buffer = (char *) malloc(data_len);
                glCompressedTexImage2D(GL_TEXTURE_2D, 0,
                                GL_COMPRESSED_RGBA_S3TC_DXT1_EXT,
                                (desc.width + 3) / 4 * 4, s->dxt_height, 0, data_len,
                                /* passing NULL here isn't allowed and some rigid implementations
                                 * will crash here. We just pass some egliable buffer to fulfil
                                 * this requirement. glCompressedSubTexImage2D works as expected.
                                 */
                                buffer);
                free(buffer);
                if(desc.color_spec == DXT1_YUV) {
                        glActiveTexture(GL_TEXTURE0 + 0);
                        glBindTexture(GL_TEXTURE_2D,s->texture_display);
                        glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                        desc.width, desc.height, 0,
                                        GL_RGBA, GL_UNSIGNED_BYTE,
                                        NULL);
                        s->current_program = s->PHandles.at(DXT1_YUV);
                }
        } else if (desc.color_spec == UYVY) {
                glActiveTexture(GL_TEXTURE0 + 2);
                glBindTexture(GL_TEXTURE_2D,s->texture_raw);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                (desc.width + 1) / 2, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_BYTE,
                                NULL);
                glActiveTexture(GL_TEXTURE0 + 0);
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_BYTE,
                                NULL);
                s->current_program = s->PHandles.at(UYVY);
        } else if (desc.color_spec == v210) {
                glActiveTexture(GL_TEXTURE0 + 2);
                glBindTexture(GL_TEXTURE_2D,s->texture_raw);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB10_A2,
                                vc_get_linesize(desc.width, v210) / 4, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_INT_2_10_10_10_REV,
                                NULL);
                glActiveTexture(GL_TEXTURE0 + 0);
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_SHORT,
                                NULL);
                s->current_program = s->PHandles.at(v210);
        } else if (desc.color_spec == Y416) {
                s->current_program = s->PHandles.at(Y416);
                glActiveTexture(GL_TEXTURE0 + 2);
                glBindTexture(GL_TEXTURE_2D,s->texture_raw);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_SHORT,
                                NULL);
                glActiveTexture(GL_TEXTURE0 + 0);
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_SHORT,
                                NULL);
        } else if (desc.color_spec == RGBA) {
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_BYTE,
                                NULL);
        } else if (desc.color_spec == RGB) {
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB,
                                desc.width, desc.height, 0,
                                GL_RGB, GL_UNSIGNED_BYTE,
                                NULL);
        } else if (desc.color_spec == R10k) {
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB10_A2,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_INT_2_10_10_10_REV,
                                nullptr);
        } else if (desc.color_spec == RG48) {
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB,
                                desc.width, desc.height, 0,
                                GL_RGB, GL_UNSIGNED_SHORT,
                                nullptr);
        } else if (desc.color_spec == DXT5) {
                glActiveTexture(GL_TEXTURE0 + 2);
                glBindTexture(GL_TEXTURE_2D,s->texture_raw);
                glCompressedTexImage2D(GL_TEXTURE_2D, 0,
                                GL_COMPRESSED_RGBA_S3TC_DXT5_EXT,
                                (desc.width + 3) / 4 * 4, s->dxt_height, 0,
                                (desc.width + 3) / 4 * 4 * s->dxt_height,
                                NULL);
                glActiveTexture(GL_TEXTURE0 + 0);
                glBindTexture(GL_TEXTURE_2D,s->texture_display);
                glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA,
                                desc.width, desc.height, 0,
                                GL_RGBA, GL_UNSIGNED_BYTE,
                                NULL);
                s->current_program = s->PHandles.at(DXT5);
        }
#ifdef HWACC_VDPAU
        else if (desc.color_spec == HW_VDPAU) {
                s->vdp.init();
        }
#endif
        if (s->current_program) {
                glUseProgram(s->current_program);
                if (GLint l = glGetUniformLocation(s->current_program, "image"); l != -1) {
                        glUniform1i(l, 2);
                }
                if (GLint l = glGetUniformLocation(s->current_program, "imageWidth"); l != -1) {
                        glUniform1f(l, (GLfloat) desc.width);
                }
                glUseProgram(0);
        }
        if (s->PHandle_deint) {
                glUseProgram(s->PHandle_deint);
                glUniform1i(glGetUniformLocation(s->PHandle_deint, "image"), 0);
                glUniform1f(glGetUniformLocation(s->PHandle_deint, "lineOff"), 1.0f / desc.height);
                glUseProgram(0);
        }
        gl_check_error();

        glBindBufferARB(GL_PIXEL_UNPACK_BUFFER_ARB, s->pbo_id);
        glBufferDataARB(GL_PIXEL_UNPACK_BUFFER_ARB, vc_get_linesize(desc.width, desc.color_spec) * desc.height, 0, GL_STREAM_DRAW_ARB);
        glBindBufferARB(GL_PIXEL_UNPACK_BUFFER_ARB, 0);

        gl_check_error();

        if (!s->fixed_size) {
                glfw_resize_window(s->window, s->fs, desc.height, s->aspect, desc.fps, s->window_size_factor);
                //gl_resize(s->window, desc.width, desc.height);
        }
        int width, height;
        glfwGetFramebufferSize(s->window, &width, &height);
        gl_change_aspect(s, width, height);

        gl_check_error();

        display_gl_set_sync_on_vblank(s->vsync);
        gl_check_error();

#ifdef HAVE_SYPHON
        if (!s->syphon_spout && !s->syphon_spout_srv_name.empty()) {
                s->syphon_spout = syphon_server_register(CGLGetCurrentContext(), s->syphon_spout_srv_name.c_str());
        }
#endif
#ifdef HAVE_SPOUT
        if (!s->syphon_spout_srv_name.empty()) {
                if (!s->syphon_spout) {
                        s->syphon_spout = spout_sender_register(s->syphon_spout_srv_name.c_str());
                }
        }
#endif

        s->scratchpad.resize(desc.width * desc.height * 8);
        s->current_display_desc = desc;
}

References state_gl::aspect, video_desc::color_spec, state_gl::current_program, desc, display_gl_set_sync_on_vblank(), DXT1, DXT1_YUV, DXT5, state_gl::dxt_height, state_gl::fixed_size, video_desc::fps, state_gl::fs, gl_change_aspect(), gl_check_error, glfw_resize_window(), video_desc::height, HW_VDPAU, LOG_LEVEL_INFO, log_msg(), state_gl::magic, MAGIC_GL, state_gl::pbo_id, state_gl::PHandle_deint, state_gl::PHandles, R10k, RG48, RGB, RGBA, round(), state_gl::scratchpad, spout_sender_register(), syphon_server_register(), state_gl::syphon_spout, state_gl::syphon_spout_srv_name, state_gl::texture_display, state_gl::texture_raw, UYVY, v210, vc_get_linesize(), state_gl::video_aspect, state_gl::vsync, video_desc::width, state_gl::window, state_gl::window_size_factor, and Y416.

Referenced by gl_process_frames().

Here is the call graph for this function:

◆ gl_render()

static void gl_render	(	struct state_gl *	s,
		char *	data )

static

Definition at line 1161 of file gl.cpp.

{
        gl_check_error();

        if (s->current_program) {
                gl_render_glsl(s, data);
        } else {
                upload_texture(s, data);
        }

        gl_check_error();
}

References state_gl::current_program, gl_check_error, gl_render_glsl(), and upload_texture().

Referenced by gl_process_frames().

Here is the call graph for this function:

◆ gl_render_glsl()

static void gl_render_glsl	(	struct state_gl *	s,
		char *	data )

static

Definition at line 1960 of file gl.cpp.

{
        int status;
        glBindTexture(GL_TEXTURE_2D, 0);
        glBindFramebufferEXT(GL_FRAMEBUFFER_EXT, s->fbo_id);
        gl_check_error();
        glFramebufferTexture2DEXT(GL_FRAMEBUFFER_EXT, GL_COLOR_ATTACHMENT0_EXT, GL_TEXTURE_2D, s->texture_display, 0);
        status = glCheckFramebufferStatusEXT(GL_FRAMEBUFFER_EXT);
        assert(status == GL_FRAMEBUFFER_COMPLETE_EXT);
        glActiveTexture(GL_TEXTURE0 + 2);
        glBindTexture(GL_TEXTURE_2D, s->texture_raw);

        glMatrixMode( GL_PROJECTION );
        glPushMatrix();
        glLoadIdentity( );

        glMatrixMode( GL_MODELVIEW );
        glPushMatrix();
        glLoadIdentity( );

        glPushAttrib(GL_VIEWPORT_BIT);

        glViewport( 0, 0, s->current_display_desc.width, s->current_display_desc.height);

        upload_texture(s, data);
        gl_check_error();

        glUseProgram(s->current_program);

        glDrawBuffer(GL_COLOR_ATTACHMENT0_EXT);
        gl_check_error();

        glBegin(GL_QUADS);
        glTexCoord2f(0.0, 0.0); glVertex2f(-1.0, -1.0);
        glTexCoord2f(1.0, 0.0); glVertex2f(1.0, -1.0);
        glTexCoord2f(1.0, 1.0); glVertex2f(1.0, 1.0);
        glTexCoord2f(0.0, 1.0); glVertex2f(-1.0, 1.0);
        glEnd();

        glPopAttrib();

        glMatrixMode( GL_PROJECTION );
        glPopMatrix();
        glMatrixMode( GL_MODELVIEW );
        glPopMatrix();

        glUseProgram(0);
        glBindFramebufferEXT(GL_FRAMEBUFFER_EXT, 0);
        glActiveTexture(GL_TEXTURE0 + 0);
        glBindTexture(GL_TEXTURE_2D, s->texture_display);
}

References state_gl::current_program, state_gl::fbo_id, gl_check_error, state_gl::texture_display, state_gl::texture_raw, and upload_texture().

Referenced by gl_render().

Here is the call graph for this function:

◆ gl_resize()

static void gl_resize	(	GLFWwindow *	win,
		int	width,
		int	height )

static

Definition at line 1833 of file gl.cpp.

{
        auto *s = (struct state_gl *) glfwGetWindowUserPointer(win);
        debug_msg("Resized to: %dx%d\n", width, height);

        gl_change_aspect(s, width, height);

        if (s->vsync == SINGLE_BUF) {
                glDrawBuffer(GL_FRONT);
                /* Clear the screen */
                glClear(GL_COLOR_BUFFER_BIT);
        }
}

References debug_msg, gl_change_aspect(), and SINGLE_BUF.

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ gl_show_help()

static void gl_show_help ( bool full )

static

Show help

Definition at line 522 of file gl.cpp.

                                    {
        col() << "usage:\n";
        col() << SBOLD(SRED("\t-d gl[:<options>]")
                       << (full ? " [--param " GL_DISABLE_10B_OPT_PARAM_NAME "]"
                                : ""))
              << "\n";
        col() << SBOLD("\t-d gl:[full]help") "\n\n";
        col() << "options:\n";
        col() << TBOLD("\taspect=<w>/<h>") << "\trequested video aspect (eg. 16/9). Leave unset if PAR = 1.\n";
        col() << TBOLD("\tcursor")      << "\t\tshow visible cursor\n";
        col() << TBOLD("\td[force]")    << "\tdeinterlace (optionally forcing deinterlace of progressive video)\n";
        col() << TBOLD("\tfs[=<monitor>]") << "\tfullscreen with optional display specification\n";
        col() << TBOLD("\tgamma[=<val>]")
              << "\tgamma value to be added _in addition_ to the hardware "
                 "gamma correction\n";
        col() << TBOLD("\thide-window") << "\tdo not show OpenGL window (useful with Syphon/SPOUT)\n";
        col() << TBOLD("\tmodeset[=<fps>]")
              << "\tset received video mode as display mode (in fullscreen)\n"
                 "\t\t\t"
              << SUNDERLINE("fps") " - override FPS; "
              << SUNDERLINE("modeset=size") << " - set only size\n";
        col() << TBOLD("\tnodecorate") << "\tdisable window decorations\n";
        col() << TBOLD("\tnovsync")     << "\t\tdo not turn sync on VBlank\n";
        col() << TBOLD("\t[no]pbo")     << "\t\tWhether or not use PBO (ignore if not sure)\n";
        col() << TBOLD("\tsingle")      << "\t\tuse single buffer (instead of double-buffering)\n";
        col() << TBOLD("\tsize=<ratio>%")
              << "\tspecifies desired size of window relative\n"
                 "\t\t\tto native resolution (in percents)\n";
        col() << TBOLD("\tsize=<W>x<H>")
              << "\twindow size in pixels, with optional position; full\n"
              << "\t\t\tsyntax: " TBOLD("[<W>x<H>][{+-}<X>[{+-}<Y>]]")
              << (full ? " [1]" : "") << "\n";
        col() << TBOLD("\tfixed_size") << "\tdo not resize window on new stream\n";
        col() << TBOLD("\tnoresizable") << "\twindow won't be resizable (useful with size=)\n";
#ifdef SPOUT
        col() << TBOLD("\tspout")       << "\t\tuse Spout (optionally with name)\n";
#endif
#ifdef SYPHON
        col() << TBOLD("\tsyphon")      << "\t\tuse Syphon (optionally with name)\n";
#endif
        col() << TBOLD("\tvsync=<x>")   << "\tsets vsync to: 0 - disable; 1 - enable; -1 - adaptive vsync; D - leaves system default\n";
        if (full) {
                col() << TBOLD("\tinit_hint=<k>=<v>[,<k2>=<v2>]")" set GLFW "
                        "init hint key\n"
                         "\t\t\t<k> to value <v> (" TBOLD("list_hints")" to enumerate)\n";
                col() << TBOLD("\twindow_hint=<k>=<v>[,<k2>=<v2>]")" set GLFW "
                        "window hint key\n"
                         "\t\t\t<k> to value <v>,  (" TBOLD("list_hints")" to enumerate)\n";
                col() << TBOLD("\t--param " GL_DISABLE_10B_OPT_PARAM_NAME)     << "\tdo not set 10-bit framebuffer (performance issues)\n";
                col() << "\n" TBOLD(
                    "[1]") " position doesn't work in Wayland\n";
        }

        printf("\nkeyboard shortcuts:\n");
        for (auto const &i : keybindings) {
                char keyname[50];
                get_keycode_name(i.first, keyname, sizeof keyname);
                col() << "\t" << TBOLD(<< keyname <<) << "\t\t" << i.second << "\n";
        }

        gl_print_monitors(full);
        col() << "\nCompiled " << SBOLD("features: ") << "SPOUT - "
              << FEATURE_PRESENT(SPOUT) << ", Syphon - "
              << FEATURE_PRESENT(SYPHON) << ", VDPAU - "
              << FEATURE_PRESENT(HWACC_VDPAU) << "\n";
}

References FEATURE_PRESENT, get_keycode_name(), GL_DISABLE_10B_OPT_PARAM_NAME, gl_print_monitors(), keybindings, SBOLD, SRED, SUNDERLINE, and TBOLD.

Referenced by display_gl_parse_fmt().

Here is the call graph for this function:

◆ gl_substitute_compile_link()

static GLuint gl_substitute_compile_link	(	const char *	vprogram,
		const char *	fprogram )

static

Definition at line 1515 of file gl.cpp.

{
        char *fp = strdup(fprogram);
        int index = 1;
        const char *col = get_commandline_param("color");
        if (col) {
                int color = stol(col, nullptr, 16) >> 4; // first nibble
                if (color > 0 && color <= 3) {
                        index = color;
                } else {
                        LOG(LOG_LEVEL_WARNING) << MOD_NAME "Wrong chromicities index " << color << "\n";
                }
        }
        double cs_coeffs[2*4] = { 0, 0, KR_709, KB_709, KR_2020, KB_2020, KR_P3, KB_P3 };
        double kr = cs_coeffs[2 * index];
        double kb = cs_coeffs[2 * index + 1];
        const char *placeholders[] = { "Y_SCALED_PLACEHOLDER", "R_CR_PLACEHOLDER", "G_CB_PLACEHOLDER", "G_CR_PLACEHOLDER", "B_CB_PLACEHOLDER" };
        double values[] =            {  Y_LIMIT_INV(8),         R_CR(8,kr,kb),      G_CB(8,kr,kb),      G_CR(8,kr,kb),      B_CB(8,kr,kb)};

        for (size_t i = 0; i < sizeof placeholders / sizeof placeholders[0]; ++i) {
                char *tok = fp;
                while ((tok = strstr(fp, placeholders[i])) != nullptr) {
                        memset(tok, ' ', strlen(placeholders[i]));
                        int written = snprintf(tok, sizeof placeholders - 1, "%.6f", values[i]);
                        tok[written] = ' ';
                }
        }
        GLuint ret = glsl_compile_link(vprogram, fp);
        free(fp);
        return ret;
}

References B_CB, G_CB, G_CR, get_commandline_param(), glsl_compile_link(), KB_2020, KB_709, KB_P3, KR_2020, KR_709, KR_P3, LOG, LOG_LEVEL_WARNING, MOD_NAME, R_CR, vprogram, and Y_LIMIT_INV.

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ glfw_close_callback()

static void glfw_close_callback ( GLFWwindow * win )

static

Definition at line 2047 of file gl.cpp.

{
        glfwSetWindowShouldClose(win, GLFW_TRUE);
        exit_uv(0);
}

References exit_uv().

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ glfw_key_callback()

static void glfw_key_callback	(	GLFWwindow *	win,
		int	key,
		int	scancode,
		int	action,
		int	mods )

static

Definition at line 1412 of file gl.cpp.

{
        if (action != GLFW_PRESS) {
                return;
        }
        auto *s = (struct state_gl *) glfwGetWindowUserPointer(win);
        char name[MAX_KEYCODE_NAME_LEN];
        int64_t ugk = translate_glfw_to_ug(key, mods);
        get_keycode_name(ugk, name, sizeof name);
        log_msg(LOG_LEVEL_VERBOSE, MOD_NAME "%d pressed, modifiers: %d (UG name: %s)\n",
                        key, mods,
                        ugk > 0 ? name : "unknown");
        if (ugk == -1) {
                log_msg(LOG_LEVEL_WARNING, MOD_NAME "Cannot translate key %d (modifiers: %d)!\n", key, mods);
        }
        if (ugk <= 0) {
                return;
        }
        if (!display_gl_process_key(s, ugk)) { // keybinding not found -> pass to control
                keycontrol_send_key(get_root_module(&s->mod), ugk);
        }
}

References display_gl_process_key(), get_keycode_name(), get_root_module(), key, keycontrol_send_key(), LOG_LEVEL_VERBOSE, LOG_LEVEL_WARNING, log_msg(), MAX_KEYCODE_NAME_LEN, MOD_NAME, name, and translate_glfw_to_ug().

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ glfw_mouse_callback()

static void glfw_mouse_callback	(	GLFWwindow *	win,
		double	x,
		double	y )

static

Definition at line 1435 of file gl.cpp.

{
        auto *s = (struct state_gl *) glfwGetWindowUserPointer(win);
        if (s->show_cursor == state_gl::SC_AUTOHIDE) {
                if (s->cursor_shown_from == steady_clock::time_point()) {
                        glfwSetInputMode(s->window, GLFW_CURSOR, GLFW_CURSOR_NORMAL);
                }
                s->cursor_shown_from = steady_clock::now();
        }
}

References state_gl::SC_AUTOHIDE.

Referenced by display_gl_init_opengl().

◆ glfw_print_error()

static void glfw_print_error	(	int	error_code,
		const char *	description )

static

Definition at line 1497 of file gl.cpp.

                                                                      {
        LOG(LOG_LEVEL_ERROR) << "GLFW error " << error_code << ": " << description << "\n";
}

References description, LOG, and LOG_LEVEL_ERROR.

Referenced by display_gl_init_opengl().

◆ glfw_print_video_mode()

static void glfw_print_video_mode ( struct state_gl * s )

static

Definition at line 889 of file gl.cpp.

                                                      {
        if (!s->fs || !s->modeset) {
                return;
        }
        const GLFWvidmode* mode = glfwGetVideoMode(s->monitor);
        LOG(LOG_LEVEL_NOTICE) << MOD_NAME << "Display mode set to: " << mode->width << "x" << mode->height << "@" << mode->refreshRate << "\n";
}

References state_gl::fs, LOG, LOG_LEVEL_NOTICE, MOD_NAME, mode, state_gl::modeset, and state_gl::monitor.

Referenced by display_gl_init_opengl(), and display_gl_process_key().

◆ glfw_resize_window()

static void glfw_resize_window	(	GLFWwindow *	win,
		bool	fs,
		int	height,
		double	aspect,
		double	fps,
		double	window_size_factor )

static

Definition at line 915 of file gl.cpp.

{
        log_msg(LOG_LEVEL_VERBOSE, MOD_NAME "glfw - fullscreen: %d, aspect: %lf, factor %lf\n",
                        (int) fs, aspect, window_size_factor);
        auto *s = (struct state_gl *) glfwGetWindowUserPointer(win);
        if (fs && s->monitor != nullptr) {
                int width = round(height * aspect);
                GLFWmonitor *mon = s->monitor;
                int refresh_rate = get_refresh_rate(s->modeset, mon, fps);
                if (s->modeset == state_gl::modeset_t::NOMODESET) {
                        const GLFWvidmode* mode = glfwGetVideoMode(mon);
                        width = mode->width;
                        height = mode->height;
                }
                glfwSetWindowMonitor(win, mon, GLFW_DONT_CARE, GLFW_DONT_CARE, width, height, refresh_rate);
        } else {
                glfwSetWindowSize(win, round(window_size_factor * height * aspect), window_size_factor * height);
        }
        glfwSwapBuffers(win);
}

References state_gl::aspect, state_gl::fs, get_refresh_rate(), LOG_LEVEL_VERBOSE, log_msg(), MOD_NAME, mode, state_gl::NOMODESET, round(), and state_gl::window_size_factor.

Referenced by display_gl_process_key(), and gl_reconfigure_screen().

Here is the call graph for this function:

◆ list_hints()

static void list_hints ( )

static

Definition at line 665 of file gl.cpp.

{
        color_printf(
            "Very " TBOLD("incomplete") " list of hints and its values.\n");
        color_printf("Keywords listed below can be passed to the options "
                     "instead of the numberic value.\n\n");

        color_printf("The list contains both keys and values for init and "
                     "window hints.\n");
        color_printf("Window hints start witn 0x20000, init with 0x50000, the "
                     "others are values.\n\n");

        color_printf("For commplete list refer to glfw3.h (eg. online "
                     "<https://github.com/glfw/glfw/blob/master/include/GLFW/"
                     "glfw3.h>).\n\n");

        color_printf("Available hints keys and values:\n");
        for (const auto &h : hint_map) {
                color_printf("\t" TBOLD("%s") " - %#x\n", h.first.c_str(),
                             h.second);
        }
        color_printf("\n");

        color_printf(
            "Example usage: " TBOLD("-d gl:init_hint=platform=x11") "\n\n");
}

References color_printf(), hint_map, and TBOLD.

Referenced by display_gl_parse_fmt().

Here is the call graph for this function:

◆ parse_hints()

static void parse_hints	(	struct state_gl *	s,
		bool	window_hints,
		char *	hints )

static

Parameters

window_hints true for window hints, otherwise init hints

Definition at line 636 of file gl.cpp.

{
        char *tok      = nullptr;
        char *save_ptr = nullptr;
        while ((tok = strtok_r(hints, ",", &save_ptr)) != nullptr) {
                hints = nullptr;
                if (strchr(tok, '=') == nullptr) {
                        MSG(ERROR, "Malformed window hint - missing value "
                                   "(expected <k>=<v>).\n");
                        continue;
                }
                const char *key_s = tok;
                const char *val_s = strchr(tok, '=') + 1;
                *strchr(tok, '=') = '\0';
                const int key     = hint_map.find(key_s) != hint_map.end()
                                        ? hint_map.at(key_s)
                                        : stoi(key_s, nullptr, 0);
                const int val     = hint_map.find(val_s) != hint_map.end()
                                        ? hint_map.at(val_s)
                                        : stoi(val_s, nullptr, 0);
                if (window_hints) {
                        s->window_hints[key] = val;
                } else {
                        s->init_hints[key] = val;
                }
        }
}

References hint_map, state_gl::init_hints, key, MSG, val, and state_gl::window_hints.

Referenced by display_gl_parse_fmt().

◆ pop_frame()

static void pop_frame	(	struct state_gl *	s,
		unique_lock< mutex > &	lk )

static

Note: lk will be unlocked!

Definition at line 1175 of file gl.cpp.

{
        s->frame_queue.pop();
        lk.unlock();
        s->frame_consumed_cv.notify_one();
}

References state_gl::frame_consumed_cv, and state_gl::frame_queue.

Referenced by gl_process_frames().

◆ print_gamma_ramp()

static void print_gamma_ramp ( GLFWmonitor * monitor )

static

Definition at line 1582 of file gl.cpp.

                                                   {
        const struct GLFWgammaramp *ramp = glfwGetGammaRamp(monitor);
        if (ramp == nullptr) {
                LOG(LOG_LEVEL_ERROR) << MOD_NAME << "Cannot get gamma ramp!\n";
                return;
        }
        ostringstream oss;
        oss << "Gamma ramp:\n";
        for (unsigned int i = 0; i < ramp->size; ++i) {
                oss << "r[" << i << "]=" << ramp->red[i] <<
                        ", g[" << i << "]=" << ramp->green[i] <<
                        ", b[" << i << "]=" << ramp->blue[i] << "\n";

        }
        LOG(LOG_LEVEL_VERBOSE) << MOD_NAME << oss.str();
}

References LOG, LOG_LEVEL_ERROR, LOG_LEVEL_VERBOSE, and MOD_NAME.

Referenced by set_gamma().

◆ REGISTER_MODULE()

REGISTER_MODULE	(	gl	,
		&	display_gl_info,
		LIBRARY_CLASS_VIDEO_DISPLAY	,
		VIDEO_DISPLAY_ABI_VERSION	)

◆ screenshot()

static void screenshot ( struct video_frame * frame )

static

Definition at line 947 of file gl.cpp.

{
        char name[128];
        time_t t;
        t = time(NULL);
        struct tm *time_ptr;

#ifdef _WIN32
        time_ptr = localtime(&t);
#else
        struct tm time_tmp;
        localtime_r(&t, &time_tmp);
        time_ptr = &time_tmp;
#endif

        strftime(name, sizeof(name), "screenshot-%a, %d %b %Y %H:%M:%S %z.pnm",
                                               time_ptr);
        if (save_video_frame_as_pnm(frame, name)) {
                log_msg(LOG_LEVEL_NOTICE, MOD_NAME "Generated screenshot \"%s\".\n", name);
        } else {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "Unable to generate screenshot!\n");
        }
}

References frame, LOG_LEVEL_ERROR, LOG_LEVEL_NOTICE, log_msg(), MOD_NAME, name, and save_video_frame_as_pnm().

Referenced by display_gl_process_key().

Here is the call graph for this function:

◆ set_gamma()

static void set_gamma ( struct state_gl * s )

static

Definition at line 1599 of file gl.cpp.

                                          {
        if (!s->gamma || !s->monitor) {
                return;
        }
        glfwSetGamma(s->monitor, s->gamma);
        if (log_level >= LOG_LEVEL_VERBOSE) {
                print_gamma_ramp(s->monitor);
        }
}

References state_gl::gamma, log_level, LOG_LEVEL_VERBOSE, state_gl::monitor, and print_gamma_ramp().

Referenced by display_gl_init_opengl(), and display_gl_process_key().

Here is the call graph for this function:

◆ set_mac_color_space()

static void set_mac_color_space ( void )

static

[mac specific] Sets user-specified color space.

Note: patched (by us) GLFW supporting GLFW_COCOA_NS_COLOR_SPACE required

Definition at line 1505 of file gl.cpp.

                                      {
#ifdef GLFW_COCOA_NS_COLOR_SPACE
        const char *col = get_commandline_param("color");
        if (!col) {
                return;
        }
        glfwWindowHint(GLFW_COCOA_NS_COLOR_SPACE, stoi(col, nullptr, 16));
#endif // defined GLFW_COCOA_NS_COLOR_SPACE
}

References get_commandline_param().

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

◆ set_size()

static bool set_size	(	struct state_gl *	s,
		const char *	tok )

static

Definition at line 596 of file gl.cpp.

{
        if (strstr(tok, "fixed_size=") == tok) {
                log_msg(LOG_LEVEL_WARNING,
                        MOD_NAME "fixed_size with dimensions is"
                                 " deprecated, use size"
                                 " instead\n");
        }
        tok = strchr(tok, '=') + 1;
        if (strchr(tok, '%') != NULL) {
                s->window_size_factor = atof(tok) / 100.0;
        } else if (strpbrk(tok, "x+-") == NULL) {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "Wrong size spec: %s\n", tok);
                return false;
        }
        if (strchr(tok, 'x') != NULL) {
                s->fixed_size = true;
                s->fixed_w = atoi(tok);
                s->fixed_h = atoi(strchr(tok, 'x') + 1);
        }
        tok = strpbrk(tok, "+-");
        if (tok != NULL) {
                s->pos_x = atoi(tok);
                tok = strpbrk(tok + 1, "+-");
        }
        if (tok != NULL) {
                s->pos_y = atoi(tok);
        }
        return true;
}

References state_gl::fixed_h, state_gl::fixed_size, state_gl::fixed_w, LOG_LEVEL_ERROR, LOG_LEVEL_WARNING, log_msg(), MOD_NAME, state_gl::pos_x, state_gl::pos_y, and state_gl::window_size_factor.

Referenced by display_gl_parse_fmt().

Here is the call graph for this function:

◆ translate_glfw_to_ug()

static int64_t translate_glfw_to_ug	(	int	key,
		int	mods )

static

Definition at line 1325 of file gl.cpp.

                                                       {
        key = tolower(key);
        if (mods == GLFW_MOD_CONTROL) {
                switch (key) {
                case GLFW_KEY_UP: return K_CTRL_UP;
                case GLFW_KEY_DOWN: return K_CTRL_DOWN;
                default:
                    return isalpha(key) ? K_CTRL(key) : -1;
                }
        } else if (mods == GLFW_MOD_ALT) {
                if (isalpha(key)) {
                        return K_ALT(key);
                }
                return -1;
        } else if (mods == 0) {
                switch (key) {
                case GLFW_KEY_LEFT: return K_LEFT;
                case GLFW_KEY_UP: return K_UP;
                case GLFW_KEY_RIGHT: return K_RIGHT;
                case GLFW_KEY_DOWN: return K_DOWN;
                case GLFW_KEY_PAGE_UP: return K_PGUP;
                case GLFW_KEY_PAGE_DOWN: return K_PGDOWN;
                default: return key;
                }
        }
        return -1;
}

References K_ALT, K_CTRL, K_CTRL_DOWN, K_CTRL_UP, K_DOWN, K_LEFT, K_PGDOWN, K_PGUP, K_RIGHT, K_UP, and key.

Referenced by glfw_key_callback().

◆ upload_compressed_texture()

static void upload_compressed_texture	(	struct state_gl *	s,
		char *	data )

static

Definition at line 1847 of file gl.cpp.

                                                                      {
        switch (s->current_display_desc.color_spec) {
                case DXT1:
                        glCompressedTexSubImage2D(GL_TEXTURE_2D, 0, 0, 0,
                                        (s->current_display_desc.width + 3) / 4 * 4, s->dxt_height,
                                        GL_COMPRESSED_RGBA_S3TC_DXT1_EXT,
                                        ((s->current_display_desc.width + 3) / 4 * 4 * s->dxt_height)/2,
                                        data);
                        break;
                case DXT1_YUV:
                        glCompressedTexSubImage2D(GL_TEXTURE_2D, 0, 0, 0,
                                        s->current_display_desc.width, s->current_display_desc.height,
                                        GL_COMPRESSED_RGBA_S3TC_DXT1_EXT,
                                        (s->current_display_desc.width * s->current_display_desc.height/16)*8,
                                        data);
                        break;
                case DXT5:
                        glCompressedTexSubImage2D(GL_TEXTURE_2D, 0, 0, 0,
                                        (s->current_display_desc.width + 3) / 4 * 4, s->dxt_height,
                                        GL_COMPRESSED_RGBA_S3TC_DXT5_EXT,
                                        (s->current_display_desc.width + 3) / 4 * 4 * s->dxt_height,
                                        data);
                        break;
                default:
                        abort();
        }
}

References DXT1, DXT1_YUV, DXT5, and state_gl::dxt_height.

Referenced by upload_texture().

◆ upload_texture()

static void upload_texture	(	struct state_gl *	s,
		char *	data )

static

swaps bytes and removes 256B padding

Definition at line 1875 of file gl.cpp.

{
#ifdef HWACC_VDPAU
        if (s->current_display_desc.color_spec == HW_VDPAU) {
                s->vdp.loadFrame(reinterpret_cast<hw_vdpau_frame *>(data));
                return;
        }
#endif
        if (s->current_display_desc.color_spec == DXT1 || s->current_display_desc.color_spec == DXT1_YUV || s->current_display_desc.color_spec == DXT5) {
                upload_compressed_texture(s, data);
                return;
        }
        GLuint format = s->current_display_desc.color_spec == RGB || s->current_display_desc.color_spec == RG48 ? GL_RGB : GL_RGBA;
        GLenum type = GL_UNSIGNED_BYTE;
        if (s->current_display_desc.color_spec == R10k || s->current_display_desc.color_spec == v210) {
                type = GL_UNSIGNED_INT_2_10_10_10_REV;
        } else if (s->current_display_desc.color_spec == Y416 || s->current_display_desc.color_spec == RG48) {
                type = GL_UNSIGNED_SHORT;
        }
        GLint width = s->current_display_desc.width;
        if (s->current_display_desc.color_spec == UYVY || s->current_display_desc.color_spec == v210) {
                width = vc_get_linesize(width, s->current_display_desc.color_spec) / 4;
        }
        auto process_r10k = [](uint32_t * __restrict out, const uint32_t *__restrict in, long width, long height) {
                DEBUG_TIMER_START(process_r10k);
                long line_padding_b = vc_get_linesize(width, R10k) - 4 * width;
                for (long i = 0; i < height; i += 1) {
                        OPTIMIZED_FOR (long j = 0; j < width; j += 1) {
                                uint32_t x = *in++;
                                *out++ = /* output is x2b8g8r8 little-endian */
                                        (x & 0xFFU) << 2U | (x & 0xC0'00U) >> 14U | // R
                                        (x & 0x3F'00U) << 6U | (x & 0xF0'00'00) >> 10U | // G
                                        (x & 0x0F'00'00U) << 10U | (x & 0xFC'00'00'00U) >> 6U; // B
                        }
                        in += line_padding_b / sizeof(uint32_t);
                }
                DEBUG_TIMER_STOP(process_r10k);
        };
        int data_size = vc_get_linesize(s->current_display_desc.width, s->current_display_desc.color_spec) * s->current_display_desc.height;
        if (s->use_pbo) {
                glBindBufferARB(GL_PIXEL_UNPACK_BUFFER_ARB, s->pbo_id); // current pbo
                glBufferDataARB(GL_PIXEL_UNPACK_BUFFER_ARB, data_size, 0, GL_STREAM_DRAW_ARB);
                if (void *ptr = glMapBufferARB(GL_PIXEL_UNPACK_BUFFER_ARB, GL_WRITE_ONLY_ARB)) {
                        // update data directly on the mapped buffer
                        if (s->current_display_desc.color_spec == R10k) { // perform byte swap
                                process_r10k(static_cast<uint32_t *>(ptr), reinterpret_cast<uint32_t *>(data), s->current_display_desc.width, s->current_display_desc.height);
                        } else {
                                memcpy(ptr, data, data_size);
                        }
                        glUnmapBufferARB(GL_PIXEL_UNPACK_BUFFER_ARB); // release pointer to mapping buffer
                }
                glTexSubImage2D(GL_TEXTURE_2D, 0, 0, 0, width, s->current_display_desc.height, format, type, nullptr);

                glBindBufferARB(GL_PIXEL_UNPACK_BUFFER_ARB, 0);
        } else {
                if (s->current_display_desc.color_spec == R10k) { // perform byte swap
                        process_r10k(reinterpret_cast<uint32_t *>(s->scratchpad.data()), reinterpret_cast<uint32_t *>(data), s->current_display_desc.width, s->current_display_desc.height);
                        data = s->scratchpad.data();
                }
                glTexSubImage2D(GL_TEXTURE_2D, 0, 0, 0, width, s->current_display_desc.height, format, type, data);
        }
}

References DEBUG_TIMER_START, DEBUG_TIMER_STOP, DXT1, DXT1_YUV, DXT5, HW_VDPAU, OPTIMIZED_FOR, state_gl::pbo_id, R10k, RG48, RGB, state_gl::scratchpad, type, upload_compressed_texture(), state_gl::use_pbo, UYVY, v210, vc_get_linesize(), and Y416.

Referenced by gl_render(), and gl_render_glsl().

Here is the call graph for this function:

◆ vdp_interop_supported()

static bool vdp_interop_supported ( )

static

Definition at line 1610 of file gl.cpp.

{
#ifdef HWACC_VDPAU
        const char *hwacc_param = get_commandline_param("use-hw-accel");
        if (hwacc_param != nullptr && strcmp(hwacc_param, "vdpau-copy") == 0) {
                return false;
        }
        if (strstr((const char *) glGetString(GL_EXTENSIONS),
                   "GL_NV_vdpau_interop") != nullptr) {
                return true;
        }
        log_msg(hwacc_param == nullptr ? LOG_LEVEL_VERBOSE : LOG_LEVEL_WARNING,
                MOD_NAME "VDPAU interop NOT supported!\n");
        MSG(DEBUG, "Available extensions:%s\n", glGetString(GL_EXTENSIONS));
#endif
        return false;
}

References DEBUG, get_commandline_param(), LOG_LEVEL_VERBOSE, LOG_LEVEL_WARNING, log_msg(), MOD_NAME, and MSG.

Referenced by display_gl_init_opengl().

Here is the call graph for this function:

Variable Documentation

◆ deinterlace_fp

const char* deinterlace_fp

static

Initial value:

= R"raw(
#version 110
uniform sampler2D image;
uniform float lineOff;
void main()
{
        vec4 pix;
        vec4 pix_down;
        pix = texture2D(image, gl_TexCoord[0].xy);
        pix_down = texture2D(image, vec2(gl_TexCoord[0].x, gl_TexCoord[0].y + lineOff));
        gl_FragColor = (pix + pix_down) / 2.0;
}
)raw"

Definition at line 127 of file gl.cpp.

Referenced by display_gl_init_opengl().

◆ display_gl_info

const struct video_display_info display_gl_info

static

Initial value:

= {
        [](struct device_info **available_cards, int *count, void (**deleter)(void *)) {
                UNUSED(deleter);
                *count = 1;
                *available_cards = (struct device_info *) calloc(1, sizeof(struct device_info));
                strcpy((*available_cards)[0].dev, "");
                strcpy((*available_cards)[0].name, "OpenGL SW display");

                dev_add_option(&(*available_cards)[0], "Deinterlace", "Deinterlace", "deinterlace", ":d", true);
                dev_add_option(&(*available_cards)[0], "Fullscreen", "Launch as fullscreen", "fullscreen", ":fs", true);
                dev_add_option(&(*available_cards)[0], "No decorate", "Disable window decorations", "nodecorate", ":nodecorate", true);
                dev_add_option(&(*available_cards)[0], "Show cursor", "Show visible cursor", "cursor", ":cursor", true);
                dev_add_option(&(*available_cards)[0], "Disable vsync", "Disable vsync", "novsync", ":novsync", true);
                dev_add_option(&(*available_cards)[0], "Aspect", "Requested video aspect <w>/<h>", "aspect", ":aspect=", false);

                (*available_cards)[0].repeatable = true;
        },
        display_gl_init,
        display_gl_run,
        display_gl_done,
        display_gl_getf,
        display_gl_putf,
        display_gl_reconfigure,
        display_gl_get_property,
        NULL,
        NULL,
        MOD_NAME,
}

Definition at line 2198 of file gl.cpp.

                                                         {
        [](struct device_info **available_cards, int *count, void (**deleter)(void *)) {
                UNUSED(deleter);
                *count = 1;
                *available_cards = (struct device_info *) calloc(1, sizeof(struct device_info));
                strcpy((*available_cards)[0].dev, "");
                strcpy((*available_cards)[0].name, "OpenGL SW display");

                dev_add_option(&(*available_cards)[0], "Deinterlace", "Deinterlace", "deinterlace", ":d", true);
                dev_add_option(&(*available_cards)[0], "Fullscreen", "Launch as fullscreen", "fullscreen", ":fs", true);
                dev_add_option(&(*available_cards)[0], "No decorate", "Disable window decorations", "nodecorate", ":nodecorate", true);
                dev_add_option(&(*available_cards)[0], "Show cursor", "Show visible cursor", "cursor", ":cursor", true);
                dev_add_option(&(*available_cards)[0], "Disable vsync", "Disable vsync", "novsync", ":novsync", true);
                dev_add_option(&(*available_cards)[0], "Aspect", "Requested video aspect <w>/<h>", "aspect", ":aspect=", false);

                (*available_cards)[0].repeatable = true;
        },
        display_gl_init,
        display_gl_run,
        display_gl_done,
        display_gl_getf,
        display_gl_putf,
        display_gl_reconfigure,
        display_gl_get_property,
        NULL,
        NULL,
        MOD_NAME,
};

◆ fp_display_dxt1_yuv

const char* fp_display_dxt1_yuv

static

Initial value:

= R"raw(
#version 110
uniform sampler2D image;

void main(void) {
        vec4 col = texture2D(image, gl_TexCoord[0].st);

        float Y = 1.1643 * (col[0] - 0.0625);
        float U = (col[1] - 0.5);
        float V = (col[2] - 0.5);

        float R = Y + 1.7926 * V;
        float G = Y - 0.2132 * U - 0.5328 * V;
        float B = Y + 2.1124 * U;

        gl_FragColor=vec4(R,G,B,1.0);
}
)raw"

Definition at line 283 of file gl.cpp.

Referenced by dxt_decoder_create().

◆ fp_display_dxt5ycocg

const char fp_display_dxt5ycocg[]

static

Initial value:

= R"raw(
#version 110
uniform sampler2D image;
void main()
{
        vec4 color;
        float Co;
        float Cg;
        float Y;
        float scale;
        color = texture2D(image, gl_TexCoord[0].xy);
        scale = (color.z * ( 255.0 / 8.0 )) + 1.0;
        Co = (color.x - (0.5 * 256.0 / 255.0)) / scale;
        Cg = (color.y - (0.5 * 256.0 / 255.0)) / scale;
        Y = color.w;
        gl_FragColor = vec4(Y + Co - Cg, Y + Cg, Y - Co - Cg, 1.0);
} // main end
)raw"

Definition at line 310 of file gl.cpp.

Referenced by dxt_decoder_create(), and dxt_display_init().

◆ gl_supp_codecs

codec_t gl_supp_codecs[]

staticconstexpr

Initial value:

= {



        UYVY,
        v210,
        R10k,
        RGBA,
        RGB,
        RG48,
        Y416,
        DXT1,
        DXT1_YUV,
        DXT5
}

Definition at line 461 of file gl.cpp.

                                            {
#ifdef HWACC_VDPAU
        HW_VDPAU,
#endif
        UYVY,
        v210,
        R10k,
        RGBA,
        RGB,
        RG48,
        Y416,
        DXT1,
        DXT1_YUV,
        DXT5
};

Referenced by display_gl_get_property(), and display_gl_reconfigure().

◆ glsl_programs

unordered_map<codec_t, const char *> glsl_programs

Initial value:

= {
        { UYVY, uyvy_to_rgb_fp },
        { Y416, yuva_to_rgb_fp },
        { v210, v210_to_rgb_fp },
        { DXT1_YUV, fp_display_dxt1_yuv },
        { DXT5, fp_display_dxt5ycocg },
}

Definition at line 329 of file gl.cpp.

                                                     {
        { UYVY, uyvy_to_rgb_fp },
        { Y416, yuva_to_rgb_fp },
        { v210, v210_to_rgb_fp },
        { DXT1_YUV, fp_display_dxt1_yuv },
        { DXT5, fp_display_dxt5ycocg },
};

Referenced by display_gl_get_property(), and display_gl_init_opengl().

◆ hint_map

const map<string, int> hint_map

static

Initial value:

= {
        {"autoiconify", 0x20006},
        { "platform",   0x50003},
        { "x11",        0x60003},
        { "wayland",    0x60004},
}

Definition at line 627 of file gl.cpp.

                                         {
        {"autoiconify", 0x20006},
        { "platform",   0x50003},
        { "x11",        0x60003},
        { "wayland",    0x60004},
};

Referenced by list_hints(), and parse_hints().

◆ keybindings

pair<int64_t, string_view> keybindings[]

staticconstexpr

Initial value:

= {
        pair<int64_t, string_view>{'f', "toggle fullscreen"},
        pair<int64_t, string_view>{'q', "quit"},
        pair<int64_t, string_view>{K_ALT('d'), "toggle deinterlace"},
        pair<int64_t, string_view>{K_ALT('p'), "pause video"},
        pair<int64_t, string_view>{K_ALT('s'), "screenshot"},
        pair<int64_t, string_view>{K_ALT('c'), "show/hide cursor"},
        pair<int64_t, string_view>{K_CTRL_DOWN, "make window 10% smaller"},
        pair<int64_t, string_view>{K_CTRL_UP, "make window 10% bigger"}
}

Definition at line 337 of file gl.cpp.

                                                            {
        pair<int64_t, string_view>{'f', "toggle fullscreen"},
        pair<int64_t, string_view>{'q', "quit"},
        pair<int64_t, string_view>{K_ALT('d'), "toggle deinterlace"},
        pair<int64_t, string_view>{K_ALT('p'), "pause video"},
        pair<int64_t, string_view>{K_ALT('s'), "screenshot"},
        pair<int64_t, string_view>{K_ALT('c'), "show/hide cursor"},
        pair<int64_t, string_view>{K_CTRL_DOWN, "make window 10% smaller"},
        pair<int64_t, string_view>{K_CTRL_UP, "make window 10% bigger"}
};

Referenced by display_gl_init(), and gl_show_help().

◆ uyvy_to_rgb_fp

const char* uyvy_to_rgb_fp

static

Initial value:

= R"raw(
#version 110
uniform sampler2D image;
uniform float imageWidth;
void main()
{
        float imageWidthRaw;
        imageWidthRaw = float((int(imageWidth) + 1) / 2 * 2);
        vec4 yuv;
        yuv.rgba  = texture2D(image, vec2(gl_TexCoord[0].x / imageWidthRaw * imageWidth, gl_TexCoord[0].y)).grba;
        if(gl_TexCoord[0].x * imageWidth / 2.0 - floor(gl_TexCoord[0].x * imageWidth / 2.0) > 0.5)
                yuv.r = yuv.a;
        yuv.r = Y_SCALED_PLACEHOLDER * (yuv.r - 0.0625);
        yuv.g = yuv.g - 0.5;
        yuv.b = yuv.b - 0.5;
        gl_FragColor.r = yuv.r + R_CR_PLACEHOLDER * yuv.b;
        gl_FragColor.g = yuv.r + G_CB_PLACEHOLDER * yuv.g + G_CR_PLACEHOLDER * yuv.b;
        gl_FragColor.b = yuv.r + B_CB_PLACEHOLDER * yuv.g;
        gl_FragColor.a = 1.0;
}
)raw"

Definition at line 141 of file gl.cpp.

◆ v210_to_rgb_fp

const char* v210_to_rgb_fp

static

with courtesy of https://stackoverflow.com/questions/20317882/how-can-i-correctly-unpack-a-v210-video-frame-using-glsl adapted to GLSL 1.1 with help of https://stackoverflow.com/questions/5879403/opengl-texture-coordinates-in-pixel-space/5879551#5879551

Definition at line 182 of file gl.cpp.

◆ vert

const char* vert

static

Initial value:

= R"raw(
#version 110
void main() {
        gl_TexCoord[0] = gl_MultiTexCoord0;
        gl_Position = ftransform();
}
)raw"

Definition at line 302 of file gl.cpp.

Referenced by display_gl_init_opengl().

◆ yuva_to_rgb_fp

const char* yuva_to_rgb_fp

static

Initial value:

= R"raw(
#version 110
uniform sampler2D image;
void main()
{
        vec4 yuv;
        yuv.rgba  = texture2D(image, gl_TexCoord[0].xy).grba;
        yuv.r = Y_SCALED_PLACEHOLDER * (yuv.r - 0.0625);
        yuv.g = yuv.g - 0.5;
        yuv.b = yuv.b - 0.5;
        gl_FragColor.r = yuv.r + R_CR_PLACEHOLDER * yuv.b;
        gl_FragColor.g = yuv.r + G_CB_PLACEHOLDER * yuv.g + G_CR_PLACEHOLDER * yuv.b;
        gl_FragColor.b = yuv.r + B_CB_PLACEHOLDER * yuv.g;
        gl_FragColor.a = yuv.a;
}
)raw"

Definition at line 163 of file gl.cpp.

Classes

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ ADAPTIVE_VSYNC

◆ BAR_GREY_COL

◆ BAR_WIDTH

◆ BARS_BOTTOM

◆ BARS_TOP

◆ DEFAULT_WIN_NAME

◆ FEATURE_PRESENT

◆ GL_DEINTERLACE_IMPOSSIBLE_MSG_ID

◆ GL_DISABLE_10B_OPT_PARAM_NAME

◆ GL_WINDOW_HINT_OPT_PARAM_NAME

◆ LEFT_BAR_LEFT

◆ LEFT_BAR_RIGHT

◆ MAGIC_GL

◆ MAX_BUFFER_SIZE

◆ MOD_NAME

◆ RIGHT_BAR_LEFT

◆ RIGHT_BAR_RIGHT

◆ SINGLE_BUF

◆ SYSTEM_VSYNC

Function Documentation

◆ ADD_TO_PARAM() [1/2]

◆ ADD_TO_PARAM() [2/2]

◆ check_rpi_pbo_quirks()

◆ display_gl_check_gl_version()

◆ display_gl_cleanup_opengl()

◆ display_gl_done()

◆ display_gl_get_property()

◆ display_gl_getf()

◆ display_gl_init()

◆ display_gl_init_opengl()

◆ display_gl_parse_fmt()

◆ display_gl_print_depth()

◆ display_gl_process_key()

◆ display_gl_putf()

◆ display_gl_reconfigure()

◆ display_gl_render_last()

◆ display_gl_run()

◆ display_gl_set_sync_on_vblank()

◆ display_gl_set_window_hints()

◆ draw_pause()

◆ get_refresh_rate()

◆ gl_change_aspect()

◆ gl_draw()

◆ gl_load_splashscreen()

◆ gl_print_monitors()

◆ gl_process_frames()

◆ gl_reconfigure_screen()

◆ gl_render()

◆ gl_render_glsl()

◆ gl_resize()

◆ gl_show_help()

◆ gl_substitute_compile_link()

◆ glfw_close_callback()

◆ glfw_key_callback()

◆ glfw_mouse_callback()

◆ glfw_print_error()

◆ glfw_print_video_mode()

◆ glfw_resize_window()

◆ list_hints()

◆ parse_hints()

◆ pop_frame()

◆ print_gamma_ramp()

◆ REGISTER_MODULE()

◆ screenshot()

◆ set_gamma()

◆ set_mac_color_space()

◆ set_size()

◆ translate_glfw_to_ug()

◆ upload_compressed_texture()

◆ upload_texture()

◆ vdp_interop_supported()

Variable Documentation

◆ deinterlace_fp

◆ display_gl_info
