module Struct Reference

#include <module.h>

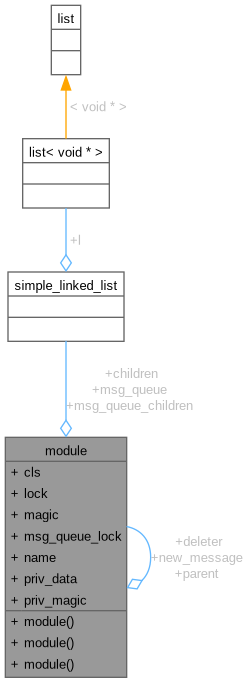

Collaboration diagram for module:

Public Member Functions
	module ()=default
	module (module &&)=delete
	module (module const &)=delete

Public Attributes
struct simple_linked_list *	children
enum module_class	cls
module_deleter_t	deleter
pthread_mutex_t	lock
uint32_t	magic
struct simple_linked_list *	msg_queue
struct simple_linked_list *	msg_queue_children
	messages for childern that were not delivered
pthread_mutex_t	msg_queue_lock
char *	name
notify_t	new_message
	if set, notifies module that new message is in queue, receiver lock is hold during the call
struct module *	parent
void *	priv_data
uint32_t	priv_magic
	optional magic number that can a module set

Detailed Description

Only members cls, deleter, priv_data and msg_queue may be directly touched by user. The others should be considered private.

Definition at line 111 of file module.h.

Constructor & Destructor Documentation

module() [1/3]

module::module ( )

default

module() [2/3]

module::module ( module const & )

delete

module() [3/3]

module::module ( module && )

delete

Member Data Documentation

children

struct simple_linked_list* module::children

Definition at line 117 of file module.h.

Referenced by dump_tree(), find_child(), module_done(), module_init_default(), and module_register().

cls

enum module_class module::cls

Definition at line 115 of file module.h.

Referenced by replica::replica(), state_gl::state_gl(), state_sdl::state_sdl(), state_video_decoder::state_video_decoder(), video_rxtx::video_rxtx(), audio_decoder_init(), capture_filter_init(), cineform_compress_init(), compress_init(), control_init(), display_sdl2_init(), dump_parents(), dump_tree(), export_init(), find_child(), get_exit_status(), get_module_identifier(), get_root_module(), init(), init_root_module(), initialize_import(), initialize_video_capture(), initialize_video_display(), module_done(), tx_init(), vidcap_file_init(), and vidcap_switcher_init().

deleter

module_deleter_t module::deleter

Definition at line 118 of file module.h.

Referenced by cineform_compress_init(), init_root_module(), module_done(), and tx_init().

lock

pthread_mutex_t module::lock

Definition at line 114 of file module.h.

Referenced by dump_tree(), extract_port(), get_module(), module_check_undelivered_messages(), module_done(), module_init_default(), module_register(), move_port_to_worker(), recompress_add_port(), recompress_get_num_active_ports(), recompress_get_port_ssrc(), recompress_port_change_compress(), recompress_port_set_active(), recompress_remove_port(), recompress_worker(), send_message_common(), and send_message_to_receiver().

magic

uint32_t module::magic

Definition at line 112 of file module.h.

Referenced by module_done(), and module_init_default().

msg_queue

struct simple_linked_list* module::msg_queue

Definition at line 122 of file module.h.

Referenced by check_message(), module_done(), module_init_default(), module_store_message(), send_message_common(), and send_message_to_receiver().

msg_queue_children

struct simple_linked_list* module::msg_queue_children

messages for childern that were not delivered

Definition at line 124 of file module.h.

Referenced by module_check_undelivered_messages(), module_done(), module_init_default(), and send_message_common().

msg_queue_lock

pthread_mutex_t module::msg_queue_lock

Definition at line 121 of file module.h.

Referenced by check_message(), module_init_default(), module_store_message(), send_message_common(), and send_message_to_receiver().

name

char* module::name

optional name of the module. May be used for indexing. Will be freed by module_done(). Must not start with a digit.

Definition at line 129 of file module.h.

Referenced by replica::replica(), find_child(), and module_done().

new_message

notify_t module::new_message

if set, notifies module that new message is in queue, receiver lock is hold during the call

Definition at line 119 of file module.h.

Referenced by state_video_decoder::state_video_decoder(), audio_decoder_init(), control_init(), display_sdl2_init(), export_init(), init_root_module(), initialize_import(), send_message_common(), send_message_to_receiver(), and vidcap_file_init().

parent

struct module* module::parent

Definition at line 116 of file module.h.

Referenced by get_parent_module(), get_root_module(), module_done(), module_get_path_str(), module_register(), and reconfigure_decoder().

priv_data

void* module::priv_data

Definition at line 126 of file module.h.

Referenced by replica::replica(), state_video_decoder::state_video_decoder(), audio_decoder_init(), audio_decoder_process_message(), change_replica_type(), cineform_compress_done(), cineform_compress_init(), compress_init(), control_init(), decoder_process_message(), state_root::deleter(), export_init(), get_exit_status(), init_root_module(), initialize_import(), j2k_compress_done(), keyboard_control::impl::msg_received_func(), new_message(), new_msg(), tx_done(), tx_init(), vidcap_file_init(), vidcap_file_new_message(), and vidcap_import_new_message().

priv_magic

uint32_t module::priv_magic

optional magic number that can a module set

Definition at line 113 of file module.h.

Referenced by display_sdl2_done(), display_sdl2_getf(), display_sdl2_init(), display_sdl2_putf(), vidcap_file_done(), vidcap_file_grab(), and vidcap_file_init().

---

The documentation for this struct was generated from the following file:

• src/module.h
