matrix-generator.cpp File Reference

#include <stdlib.h>
#include <unistd.h>
#include <time.h>
#include <stdio.h>
#include <string.h>
#include "ldpc-matrix.h"
#include "matrix-generator.h"
#include "rand_pmms.h"

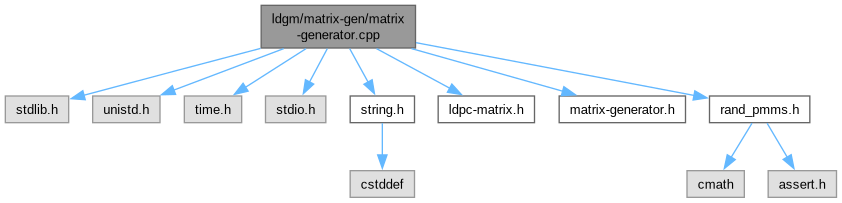

Include dependency graph for matrix-generator.cpp:

Go to the source code of this file.

Functions
int	generate_ldgm_matrix (char *fname, unsigned int k, unsigned int m, unsigned int column_weight, unsigned int seed, unsigned int extend_rows)

Function Documentation

generate_ldgm_matrix()

int generate_ldgm_matrix	(	char *	fname,
		unsigned int	k,
		unsigned int	m,
		unsigned int	column_weight,
		unsigned int	seed,
		unsigned int	extend_rows )

Definition at line 28 of file matrix-generator.cpp.

{

    int random = 0;
    int rfc = 1;

    if ( ! ( k > 0 && m > 0 && column_weight > 0 && (random > 0 || rfc > 0)  ) )
    {
        return EXIT_FAILURE;
    }

    char **pc_matrix;

    pc_matrix = (char**)malloc(m*sizeof(char*));
    for ( unsigned int i = 0; i < m; i++)
        pc_matrix[i] = (char*)calloc(k, sizeof(char));


    //Generate random 1's per column
    if (random)
    {
        srand(time(NULL));
        for ( unsigned int i = 0; i < k; ++i ) {
            for ( unsigned int j = 0; j < column_weight; ++j) {
                pc_matrix[rand()%m][i] = 1;
            }
        }
    }
    //Use algorithm from RFC 5170
    if (rfc)
    {
        left_matrix_init ( pc_matrix, k, k+m, column_weight, seed );
    }

    //Extend the matrix if necessary:
        //Each additional row is computed as follows: pseudorandomly choose a row of parity matrix
        //and shift it circularly one step to the right
        if (extend_rows > 0)
        {
            Rand_pmms rand_gen;
            rand_gen.seedi(seed);

                for ( unsigned int i = m; i < m + extend_rows; i++ )
                {
                        int row = rand_gen.pmms_rand(m - 1);
                        for ( unsigned int j = 1; j < k; j++)
                        {
                                if (pc_matrix[row][j - 1])
                                {
                                        pc_matrix[i][j] = 1;
                                }
                        }
                        if (pc_matrix[row][k - 1])
                        {
                                pc_matrix[i][0] = 1;
                        }
                }
        }

        m += extend_rows;

    int max_weight = 0;
    //Compute maximum row weight
    for ( unsigned int i = 0; i < m; i++)
    {
        int m = 0;
        for ( unsigned int j = 0; j < k; j++)
            if( pc_matrix[i][j])
                m++;
        if ( m > max_weight )
            max_weight = m;
    }

/*     for ( int i = 0; i < m; i++)
 *     {
 *      for ( int j = 0; j < k; j++)
 *          printf ( "[%3d]", pc_matrix[i][j] );
 *      printf ( "\n" );
 *     }
 *     printf ( "\n" );
 */

    int **pcm;
    pcm = (int**)malloc(m*sizeof(int*));
    for ( unsigned int i = 0; i < m; i++)
        pcm[i] = (int*)malloc((max_weight+2) * sizeof(int));


    int columns = max_weight + 2;
    int counter = 0;
    for ( unsigned int i = 0; i < m; i++ )
    {
        for ( unsigned int j = 0; j < k; j++)
            if( pc_matrix[i][j])
            {
                pcm[i][counter] = j;
                counter++;
            }
        //add indices from staircase matrix
        pcm[i][counter] = k + i;
        counter++;

        if ( i > 0 )
        {
            pcm[i][counter] = k + i - 1;
            counter++;
        }

        if ( counter < columns )
            for ( int j = counter; j < columns; j++)
                pcm[i][j] = -1;
        counter = 0;
    }

/*     for ( int i = 0; i < m; i++)
 *     {
 *      for ( int j = 0; j < columns; j++)
 *          printf ( "[%3d]", pcm[i][j] );
 *      printf ( "\n" );
 *     }
 */
    FILE *out;

    int tmp;

    out = fopen (fname, "wb");
    if(out)
    {
        fprintf( out, "%d ", k);
        fprintf( out, "%d ", m);
        fprintf( out, "%d\n", columns);
        for ( unsigned int i = 0; i < m; i++)
        {
            for ( int j = 0; j < columns; j++)
            {
                int t = pcm[i][j];
                tmp = fwrite(&t, sizeof(int), 1, out);
                if (tmp != 1)
                    fprintf(stderr, "Cannot write to output file!");
            }
//          printf ( "fwrite: %d\n", tmp );
        }
        fflush(out);
        fclose(out);
    } else
    {
        fprintf(stderr, "Cannot open file for writing.");
    }

/*     out = fopen(fname, "rb");
 *
 *     int k_f, m_f, w_f;
 *     fscanf(out, "%d %d %d", &k_f, &m_f, &w_f);
 *     printf ( "In matrix file: K %d M %d Columns %d\n", k_f, m_f, w_f );
 *
 *     fseek ( out , 1 , SEEK_CUR );
 *     int *p;
 *     p = (int*) malloc(columns*m*sizeof(int));
 *     memset(p, 99, columns*m*sizeof(int));
 *     for ( int i = 0; i < m; i++)
 *     {
 *      for ( int j = 0; j < columns; j++)
 *      {
 *          int t;
 *          tmp = fread ( &t, sizeof(int), 1, out);
 *          p[i*columns + j] = t;
 *      }
 *     }
 * //   printf ( "fread: %d\n", tmp );
 *     for ( int i = 0; i < m; i++)
 *     {
 *      for ( int j = 0; j < columns; j++)
 *          printf ( "[%3d]", (unsigned int)(p[i*columns+j]) );
 *      printf ( "\n" );
 *     }
 *
 */


//Print matrix
/*     for ( int i = 0; i < m; i++)
 *     {
 *      for ( int j = 0; j < k; j++)
 *          printf ( "%3d", pc_matrix[i][j] );
 *      printf ( "\n" );
 *     }
 *     printf ( "\n" );
 */


    for ( unsigned int i = 0; i < m; i++)
        free(pc_matrix[i]);
    free(pc_matrix);
    for ( unsigned int i = 0; i < m; i++)
        free(pcm[i]);
    free(pcm);

    return EXIT_SUCCESS;
}

References left_matrix_init(), Rand_pmms::pmms_rand(), and Rand_pmms::seedi().

Referenced by main(), and ldgm::set_params().

Here is the call graph for this function:
