state_sdl Struct Reference

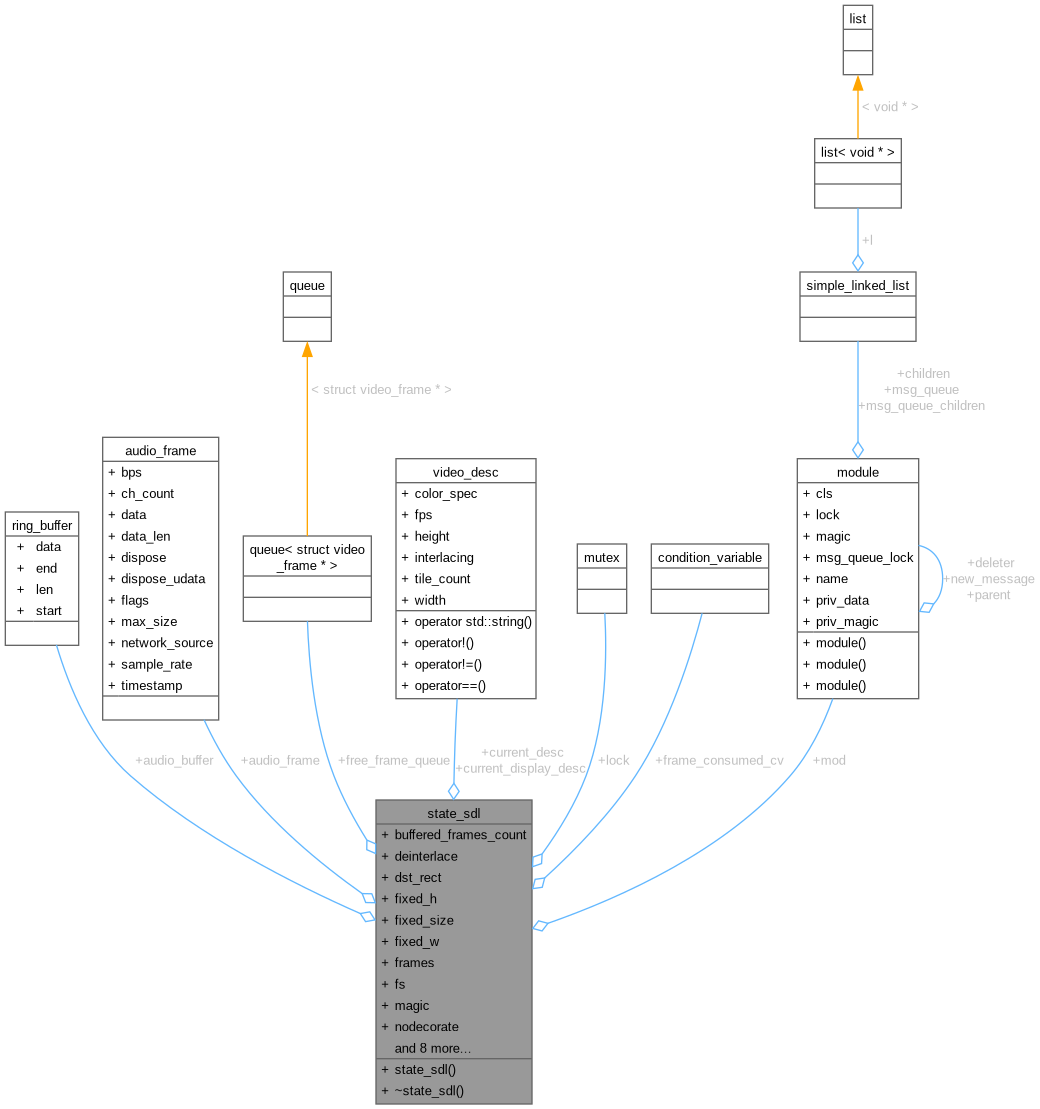

Collaboration diagram for state_sdl:

Public Member Functions
	state_sdl (struct module *parent)
	~state_sdl ()

Public Attributes
struct ring_buffer *	audio_buffer
struct audio_frame	audio_frame
int	buffered_frames_count
struct video_desc	current_desc
struct video_desc	current_display_desc
	with those desc new data frames will be generated (getf)
bool	deinterlace
SDL_Rect	dst_rect
int	fixed_h
bool	fixed_size
int	fixed_w
condition_variable	frame_consumed_cv
int	frames
queue< struct video_frame * >	free_frame_queue
bool	fs
mutex	lock
uint32_t	magic
struct module	mod
bool	nodecorate
bool	play_audio
int	screen_h
int	screen_w
uint32_t	sdl_flags_fs
uint32_t	sdl_flags_win
SDL_Surface *	sdl_screen
struct timeval	tv
SDL_Overlay *	yuv_image

Detailed Description

Definition at line 83 of file sdl.cpp.

Constructor & Destructor Documentation

state_sdl()

state_sdl::state_sdl ( struct module * parent )

inline

Definition at line 119 of file sdl.cpp.

                                         : magic(MAGIC_SDL), frames(0), yuv_image(nullptr), sdl_screen(nullptr), dst_rect(),
                      deinterlace(false), fs(false), nodecorate(false), fixed_size(false),
                      fixed_w(0), fixed_h(0),
                      screen_w(0), screen_h(0), audio_buffer(nullptr), audio_frame(), play_audio(false), buffered_frames_count(0),
                      current_desc(), current_display_desc(),
#ifdef __APPLE__
                      autorelease_pool(nullptr),
#endif
                      sdl_flags_win(0), sdl_flags_fs(0)
        {
                gettimeofday(&tv, NULL);
                module_init_default(&mod);
                mod.cls = MODULE_CLASS_DATA;
                module_register(&mod, parent);
        }

References module::cls, mod, MODULE_CLASS_DATA, module_init_default(), module_register(), parent, and tv.

Referenced by display_sdl_init().

Here is the call graph for this function:

~state_sdl()

state_sdl::~state_sdl ( )

inline

Definition at line 135 of file sdl.cpp.

                     {
                module_done(&mod);
        }

References mod, and module_done().

Here is the call graph for this function:

Member Data Documentation

audio_buffer

struct ring_buffer* state_sdl::audio_buffer

Definition at line 101 of file sdl.cpp.

Referenced by configure_audio(), display_sdl_put_audio_frame(), and sdl_audio_callback().

audio_frame

struct audio_frame state_sdl::audio_frame

Definition at line 102 of file sdl.cpp.

Referenced by configure_audio(), and display_sdl_reconfigure_audio().

buffered_frames_count

int state_sdl::buffered_frames_count

Definition at line 105 of file sdl.cpp.

Referenced by display_sdl_putf(), and display_sdl_run().

current_desc

struct video_desc state_sdl::current_desc

Definition at line 107 of file sdl.cpp.

Referenced by display_sdl_getf(), and display_sdl_reconfigure().

current_display_desc

struct video_desc state_sdl::current_display_desc

with those desc new data frames will be generated (getf)

Definition at line 108 of file sdl.cpp.

Referenced by cleanup_screen(), display_frame(), display_sdl_reconfigure_real(), display_sdl_run(), and update_size().

deinterlace

bool state_sdl::deinterlace

Definition at line 93 of file sdl.cpp.

Referenced by display_frame(), display_sdl_init(), and display_sdl_run().

dst_rect

SDL_Rect state_sdl::dst_rect

Definition at line 91 of file sdl.cpp.

Referenced by compute_dst_rect(), and display_frame().

fixed_h

int state_sdl::fixed_h

Definition at line 97 of file sdl.cpp.

Referenced by display_sdl_init().

fixed_size

bool state_sdl::fixed_size

Definition at line 96 of file sdl.cpp.

Referenced by display_sdl_init(), and display_sdl_reconfigure_real().

fixed_w

int state_sdl::fixed_w

Definition at line 97 of file sdl.cpp.

Referenced by display_sdl_init().

frame_consumed_cv

condition_variable state_sdl::frame_consumed_cv

Definition at line 110 of file sdl.cpp.

Referenced by display_sdl_putf(), and display_sdl_run().

frames

int state_sdl::frames

Definition at line 87 of file sdl.cpp.

Referenced by display_frame().

free_frame_queue

queue<struct video_frame *> state_sdl::free_frame_queue

Definition at line 106 of file sdl.cpp.

Referenced by display_frame(), display_sdl_done(), and display_sdl_getf().

fs

bool state_sdl::fs

Definition at line 94 of file sdl.cpp.

Referenced by display_sdl_init(), display_sdl_run(), and update_size().

lock

mutex state_sdl::lock

Definition at line 109 of file sdl.cpp.

Referenced by display_frame(), display_sdl_getf(), display_sdl_putf(), and display_sdl_run().

magic

uint32_t state_sdl::magic

Definition at line 84 of file sdl.cpp.

Referenced by display_sdl_done(), display_sdl_getf(), and display_sdl_putf().

mod

struct module state_sdl::mod

Definition at line 117 of file sdl.cpp.

Referenced by state_sdl(), ~state_sdl(), and display_sdl_run().

nodecorate

bool state_sdl::nodecorate

Definition at line 95 of file sdl.cpp.

Referenced by display_sdl_init(), and display_sdl_reconfigure_real().

play_audio

bool state_sdl::play_audio

Definition at line 103 of file sdl.cpp.

Referenced by configure_audio(), display_sdl_init(), display_sdl_put_audio_frame(), and display_sdl_reconfigure_audio().

screen_h

int state_sdl::screen_h

Definition at line 99 of file sdl.cpp.

Referenced by display_sdl_init(), and update_size().

screen_w

int state_sdl::screen_w

Definition at line 99 of file sdl.cpp.

Referenced by display_sdl_init(), and update_size().

sdl_flags_fs

uint32_t state_sdl::sdl_flags_fs

Definition at line 115 of file sdl.cpp.

Referenced by display_sdl_reconfigure_real(), and update_size().

sdl_flags_win

uint32_t state_sdl::sdl_flags_win

Definition at line 115 of file sdl.cpp.

Referenced by display_sdl_reconfigure_real(), and update_size().

sdl_screen

SDL_Surface* state_sdl::sdl_screen

Definition at line 90 of file sdl.cpp.

Referenced by cleanup_screen(), display_frame(), display_sdl_reconfigure_real(), and update_size().

tv

struct timeval state_sdl::tv

Definition at line 86 of file sdl.cpp.

Referenced by state_sdl(), and display_frame().

yuv_image

SDL_Overlay* state_sdl::yuv_image

Definition at line 89 of file sdl.cpp.

Referenced by cleanup_screen(), display_frame(), and display_sdl_reconfigure_real().

---

The documentation for this struct was generated from the following file:

• src/video_display/sdl.cpp
