ug_options Struct Reference

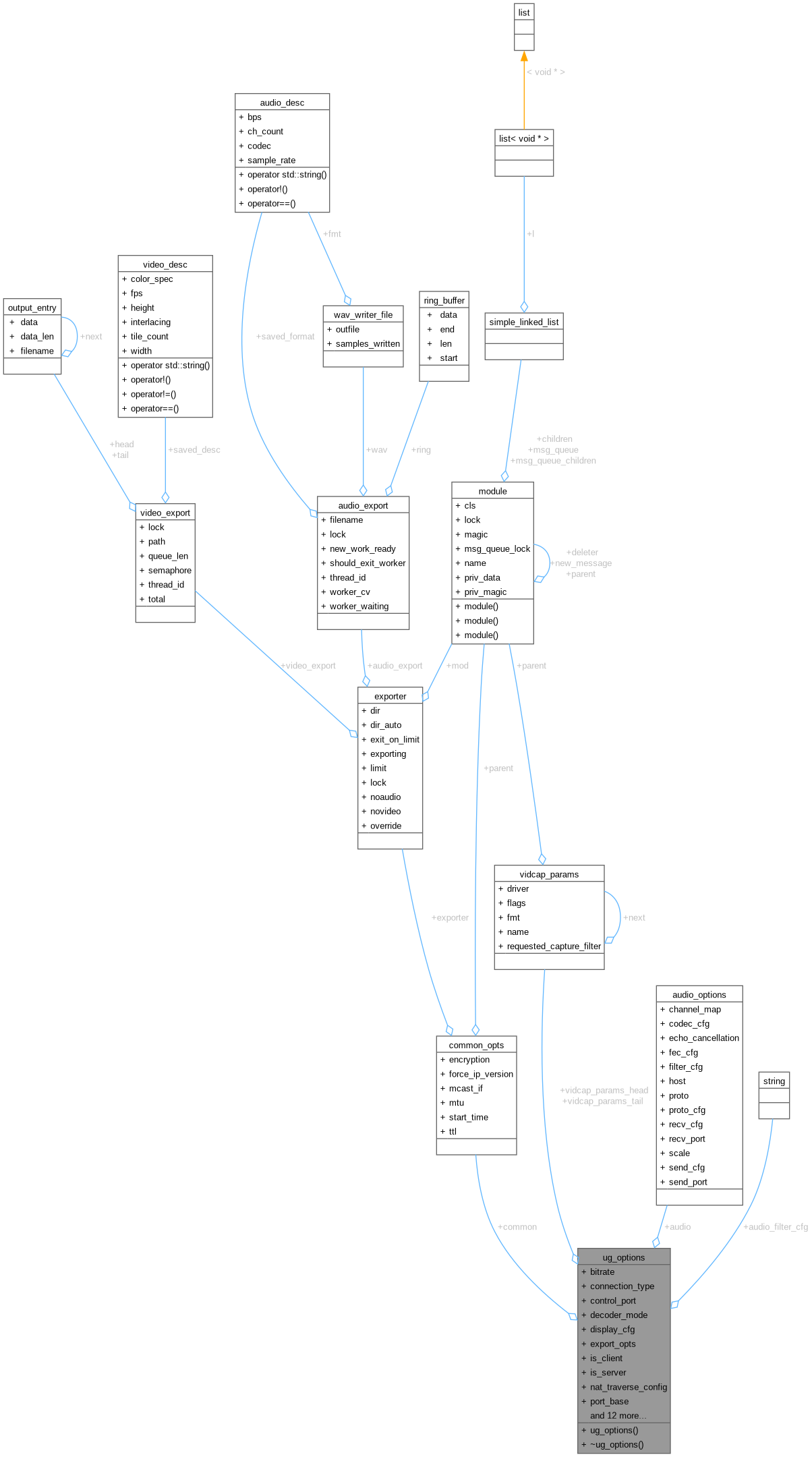

Collaboration diagram for ug_options:

Public Member Functions
	ug_options ()
	~ug_options ()

Public Attributes
struct audio_options	audio
std::string	audio_filter_cfg
long long int	bitrate = RATE_DEFAULT
struct common_opts	common = { COMMON_OPTS_INIT }
int	connection_type = 0
int	control_port = 0
enum video_mode	decoder_mode = VIDEO_NORMAL
const char *	display_cfg = ""
char *	export_opts = NULL
bool	is_client = false
bool	is_server = false
char *	nat_traverse_config = nullptr
int	port_base = PORT_BASE
const char *	postprocess = NULL
const char *	requested_capabilities = nullptr
const char *	requested_compression = nullptr
const char *	requested_display = "none"
const char *	requested_receiver = nullptr
const char *	requested_video_fec = "none"
bool	should_export = false
struct vidcap_params *	vidcap_params_head = vidcap_params_allocate()
struct vidcap_params *	vidcap_params_tail = vidcap_params_head
const char *	video_protocol = "ultragrid_rtp"
const char *	video_protocol_opts = ""
int	video_rx_port = -1
unsigned int	video_rxtx_mode = 0
int	video_tx_port = -1

Detailed Description

Definition at line 494 of file main.cpp.

Constructor & Destructor Documentation

ug_options()

ug_options::ug_options ( )

inline

Definition at line 495 of file main.cpp.

                     {
                vidcap_params_set_device(vidcap_params_head, "none");
                // will be adjusted later
                audio.recv_port = -1;
                audio.send_port = -1;
                audio.codec_cfg = "PCM";
                common.mtu = 0;
        }

References audio, audio_options::codec_cfg, common, common_opts::mtu, audio_options::recv_port, audio_options::send_port, vidcap_params_head, and vidcap_params_set_device().

Here is the call graph for this function:

~ug_options()

ug_options::~ug_options ( )

inline

Definition at line 503 of file main.cpp.

                      {
                while  (vidcap_params_head != nullptr) {
                        struct vidcap_params *next = vidcap_params_get_next(vidcap_params_head);
                        vidcap_params_free_struct(vidcap_params_head);
                        vidcap_params_head = next;
                }
        }

References vidcap_params_free_struct(), vidcap_params_get_next(), and vidcap_params_head.

Here is the call graph for this function:

Member Data Documentation

audio

struct audio_options ug_options::audio

Definition at line 512 of file main.cpp.

Referenced by ug_options(), adjust_params(), parse_audio_capture(), parse_options_internal(), parse_port(), and parse_protocol().

audio_filter_cfg

std::string ug_options::audio_filter_cfg

Definition at line 513 of file main.cpp.

Referenced by parse_options_internal().

bitrate

long long int ug_options::bitrate = RATE_DEFAULT

Definition at line 536 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

common

struct common_opts ug_options::common = { COMMON_OPTS_INIT }

Definition at line 510 of file main.cpp.

{ COMMON_OPTS_INIT };

Referenced by ug_options(), adjust_params(), and parse_options_internal().

connection_type

int ug_options::connection_type = 0

Definition at line 527 of file main.cpp.

Referenced by parse_control_port().

control_port

int ug_options::control_port = 0

Definition at line 526 of file main.cpp.

Referenced by parse_control_port().

decoder_mode

enum video_mode ug_options::decoder_mode = VIDEO_NORMAL

Definition at line 529 of file main.cpp.

Referenced by parse_options_internal().

display_cfg

const char* ug_options::display_cfg = ""

Definition at line 518 of file main.cpp.

Referenced by parse_options_internal().

export_opts

char* ug_options::export_opts = NULL

Definition at line 524 of file main.cpp.

Referenced by parse_options_internal().

is_client

bool ug_options::is_client = false

Definition at line 537 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

is_server

bool ug_options::is_server = false

Definition at line 538 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

nat_traverse_config

char* ug_options::nat_traverse_config = nullptr

Definition at line 545 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

port_base

int ug_options::port_base = PORT_BASE

Definition at line 520 of file main.cpp.

Referenced by adjust_params(), and parse_port().

postprocess

const char* ug_options::postprocess = NULL

Definition at line 532 of file main.cpp.

Referenced by parse_options_internal().

requested_capabilities

const char* ug_options::requested_capabilities = nullptr

Definition at line 540 of file main.cpp.

Referenced by parse_options_internal().

requested_compression

const char* ug_options::requested_compression = nullptr

Definition at line 530 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

requested_display

const char* ug_options::requested_display = "none"

Definition at line 533 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

requested_receiver

const char* ug_options::requested_receiver = nullptr

Definition at line 534 of file main.cpp.

Referenced by adjust_params(), and parse_options_internal().

requested_video_fec

const char* ug_options::requested_video_fec = "none"

Definition at line 519 of file main.cpp.

Referenced by parse_options_internal().

should_export

bool ug_options::should_export = false

Definition at line 523 of file main.cpp.

Referenced by parse_options_internal().

vidcap_params_head

struct vidcap_params* ug_options::vidcap_params_head = vidcap_params_allocate()

Definition at line 515 of file main.cpp.

Referenced by ug_options(), ~ug_options(), and adjust_params().

vidcap_params_tail

struct vidcap_params* ug_options::vidcap_params_tail = vidcap_params_head

Definition at line 516 of file main.cpp.

Referenced by adjust_params(), parse_audio_capture(), and parse_options_internal().

video_protocol

const char* ug_options::video_protocol = "ultragrid_rtp"

Definition at line 542 of file main.cpp.

Referenced by adjust_params(), parse_options_internal(), and parse_protocol().

video_protocol_opts

const char* ug_options::video_protocol_opts = ""

Definition at line 543 of file main.cpp.

Referenced by parse_options_internal(), and parse_protocol().

video_rx_port

int ug_options::video_rx_port = -1

Definition at line 521 of file main.cpp.

Referenced by adjust_params(), and parse_port().

video_rxtx_mode

unsigned int ug_options::video_rxtx_mode = 0

Definition at line 547 of file main.cpp.

Referenced by adjust_params().

video_tx_port

int ug_options::video_tx_port = -1

Definition at line 521 of file main.cpp.

Referenced by adjust_params(), and parse_port().

---

The documentation for this struct was generated from the following file:

• src/main.cpp
