video_capture_params.cpp File Reference

#include <string>
#include "utils/config_file.h"
#include "video_capture_params.h"

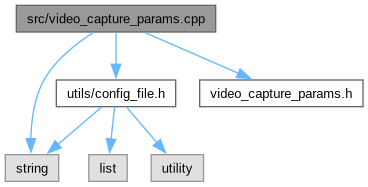

Include dependency graph for video_capture_params.cpp:

Go to the source code of this file.

Classes
struct	vidcap_params

Functions
static bool	vidcap_dispatch_alias (struct vidcap_params *params)
void	vidcap_params_add_flags (struct vidcap_params *params, unsigned int flags)
struct vidcap_params *	vidcap_params_allocate (void)
struct vidcap_params *	vidcap_params_allocate_next (struct vidcap_params *curr)
struct vidcap_params *	vidcap_params_copy (const struct vidcap_params *params)
void	vidcap_params_free_struct (struct vidcap_params *buf)
const char *	vidcap_params_get_capture_filter (const struct vidcap_params *params)
const char *	vidcap_params_get_driver (const struct vidcap_params *params)
unsigned int	vidcap_params_get_flags (const struct vidcap_params *params)
const char *	vidcap_params_get_fmt (const struct vidcap_params *params)
const char *	vidcap_params_get_name (const struct vidcap_params *params)
struct vidcap_params *	vidcap_params_get_next (const struct vidcap_params *curr)
struct vidcap_params *	vidcap_params_get_nth (struct vidcap_params *curr, int index)
struct module *	vidcap_params_get_parent (const struct vidcap_params *params)
void	vidcap_params_set_capture_filter (struct vidcap_params *params, const char *req_capture_filter)
void	vidcap_params_set_device (struct vidcap_params *params, const char *config)
void	vidcap_params_set_driver (struct vidcap_params *params, const char *driver)
void	vidcap_params_set_flags (struct vidcap_params *params, unsigned int flags)
void	vidcap_params_set_parent (struct vidcap_params *params, struct module *mod)

Detailed Description

Author

Martin Pulec pulec.nosp@m.@ces.nosp@m.net.c.nosp@m.z

Definition in file video_capture_params.cpp.

Function Documentation

vidcap_dispatch_alias()

static bool vidcap_dispatch_alias ( struct vidcap_params * params )

static

This function does 2 things:

• checks whether vidcap_params::name is not an alias
• tries to find capture filter for vidcap_params::name if not given

  Return values

  true	if alias dispatched successfully
  false	otherwise

Definition at line 75 of file video_capture_params.cpp.

{
        bool ret;
        char buf[1024];
        string real_capture;
        struct config_file *conf =
                config_file_open(default_config_file(buf,
                                        sizeof(buf)));
        if (conf == NULL)
                return false;
        real_capture = config_file_get_alias(conf, "capture", params->name);
        if (real_capture.empty()) {
                ret = false;
        } else {
                params->driver = strdup(real_capture.c_str());
                if (strchr(params->driver, ':')) {
                        char *delim = strchr(params->driver, ':');
                        params->fmt = strdup(delim + 1);
                        *delim = '\0';
                } else {
                        params->fmt = strdup("");
                }
                ret = true;
        }


        if (params->requested_capture_filter == NULL) {
                string matched_cap_filter = config_file_get_capture_filter_for_alias(conf,
                                        params->name);
                if (!matched_cap_filter.empty())
                        params->requested_capture_filter = strdup(matched_cap_filter.c_str());
        }

        config_file_close(conf);

        return ret;
}

References config_file_close(), config_file_get_alias(), config_file_get_capture_filter_for_alias(), config_file_open(), and default_config_file().

Referenced by vidcap_params_set_device().

Here is the call graph for this function:

vidcap_params_add_flags()

void vidcap_params_add_flags	(	struct vidcap_params *	params,
		unsigned int	flags )

Definition at line 208 of file video_capture_params.cpp.

{
        params->flags |= flags;
}

References flags.

Referenced by parse_audio_capture().

vidcap_params_allocate()

struct vidcap_params * vidcap_params_allocate

(

void

)

@brier Allocates blank vidcap_params structure.

Definition at line 117 of file video_capture_params.cpp.

{
        return (struct vidcap_params *) calloc(1, sizeof(struct vidcap_params));
}

Referenced by test_video_capture(), vidcap_params_allocate_next(), and vidcap_screen_win_init().

vidcap_params_allocate_next()

struct vidcap_params * vidcap_params_allocate_next

(

struct vidcap_params *

curr

)

@brier Allocates blank vidcap_params structure.

Follows curr struct in the virtual list.

Parameters

curr	structure to be appended after

Returns

pointer to newly created structure

Definition at line 129 of file video_capture_params.cpp.

{
        curr->next = vidcap_params_allocate();
        return curr->next;
}

References vidcap_params::next, and vidcap_params_allocate().

Referenced by adjust_params(), and parse_options_internal().

Here is the call graph for this function:

vidcap_params_copy()

struct vidcap_params * vidcap_params_copy

(

const struct vidcap_params *

params

)

Creates deep copy of vidcap_params structure.

Definition at line 255 of file video_capture_params.cpp.

{
        if (!params)
                return NULL;

        struct vidcap_params *ret = (struct vidcap_params *) calloc(1, sizeof(struct vidcap_params));

        if (params->driver)
                ret->driver = strdup(params->driver);
        if (params->fmt)
                ret->fmt = strdup(params->fmt);
        if (params->requested_capture_filter)
                ret->requested_capture_filter =
                        strdup(params->requested_capture_filter);
        if (params->name)
                ret->name = strdup(params->name);
        if (params->flags)
                ret->flags = params->flags;

        ret->next = NULL; // there is high probability that the pointer will be invalid

        return ret;
}

References vidcap_params::driver, vidcap_params::flags, vidcap_params::fmt, vidcap_params::name, vidcap_params::next, and vidcap_params::requested_capture_filter.

Referenced by parse(), and vidcap_screen_linux_init().

vidcap_params_free_struct()

void vidcap_params_free_struct

(

struct vidcap_params *

buf

)

Frees all members of the given structure as well as its members.

Parameters

[in]

buf

structure to be feed

Definition at line 284 of file video_capture_params.cpp.

{
        if (!buf)
                return;

        free(buf->driver);
        free(buf->fmt);
        free(buf->requested_capture_filter);
        free(buf->name);

        free(buf);
}

References vidcap_params::driver, vidcap_params::fmt, vidcap_params::name, and vidcap_params::requested_capture_filter.

Referenced by ug_options::~ug_options(), test_video_capture(), vidcap_screen_linux_init(), vidcap_screen_win_init(), and vidcap_swmix_done().

vidcap_params_get_capture_filter()

const char * vidcap_params_get_capture_filter

(

const struct vidcap_params *

params

)

Definition at line 198 of file video_capture_params.cpp.

{
        return params->requested_capture_filter;
}

Referenced by initialize_video_capture(), and parse_options_internal().

vidcap_params_get_driver()

const char * vidcap_params_get_driver

(

const struct vidcap_params *

params

)

Returns

capture driver name (eg. decklink), not NULL if vidcap_params_set_device() called

Definition at line 216 of file video_capture_params.cpp.

{
        return params->driver;
}

Referenced by adjust_params(), grab_worker(), initialize_video_capture(), main(), parse(), slave_worker(), vidcap_aggregate_init(), vidcap_gpustitch_init(), and vidcap_switcher_init().

vidcap_params_get_flags()

unsigned int vidcap_params_get_flags

(

const struct vidcap_params *

params

)

Definition at line 229 of file video_capture_params.cpp.

{
        return params->flags;
}

Referenced by initialize_video_capture(), vidcap_aggregate_init(), vidcap_aja_init(), vidcap_bitflow_init(), vidcap_bluefish444_init(), vidcap_decklink_init(), vidcap_deltacast_dvi_init(), vidcap_deltacast_init(), vidcap_dshow_init(), vidcap_dvs_init(), vidcap_file_init(), vidcap_gpustitch_init(), vidcap_import_init(), vidcap_ndi_init(), vidcap_null_init(), vidcap_pw_init(), vidcap_rtsp_init(), vidcap_screen_osx_init(), vidcap_screen_x11_init(), vidcap_spout_init(), vidcap_switcher_init(), vidcap_syphon_init(), vidcap_testcard2_init(), vidcap_testcard_init(), vidcap_ug_input_init(), vidcap_v4l2_init(), and vidcap_ximea_init().

vidcap_params_get_fmt()

const char * vidcap_params_get_fmt

(

const struct vidcap_params *

params

)

Returns

capture configuration, not NULL if vidcap_params_set_device() called

Definition at line 224 of file video_capture_params.cpp.

{
        return params->fmt;
}

Referenced by grab_worker(), parse_params(), slave_worker(), vidcap_aggregate_init(), vidcap_aja_init(), vidcap_bluefish444_init(), vidcap_decklink_init(), vidcap_deltacast_dvi_init(), vidcap_deltacast_init(), vidcap_dshow_init(), vidcap_dvs_init(), vidcap_file_init(), vidcap_gpustitch_init(), vidcap_import_init(), vidcap_ndi_init(), vidcap_rtsp_init(), vidcap_screen_linux_init(), vidcap_screen_osx_init(), vidcap_screen_win_init(), vidcap_screen_x11_init(), vidcap_spout_init(), vidcap_switcher_init(), vidcap_swmix_init(), vidcap_syphon_init(), vidcap_testcard2_init(), vidcap_testcard_init(), vidcap_ug_input_init(), vidcap_v4l2_init(), and vidcap_ximea_init().

vidcap_params_get_name()

const char * vidcap_params_get_name

(

const struct vidcap_params *

params

)

Returns

<driver>[:<configuration>] as given on command-line

See also

vidcap_params_get_driver, vidcap_params_get_fmt

Definition at line 238 of file video_capture_params.cpp.

{
        return params->name;
}

Referenced by init_slave_data(), and slave_worker().

vidcap_params_get_next()

struct vidcap_params * vidcap_params_get_next

(

const struct vidcap_params *

curr

)

@brier Returns next item in virtual vidcap_params list.

Definition at line 138 of file video_capture_params.cpp.

{
        return curr->next;
}

References vidcap_params::next.

Referenced by ug_options::~ug_options(), initialize_video_capture(), parse(), vidcap_aggregate_init(), vidcap_gpustitch_init(), and vidcap_switcher_init().

vidcap_params_get_nth()

struct vidcap_params * vidcap_params_get_nth	(	struct vidcap_params *	curr,
		int	index )

@brier Returns n-th item in vidcap_params list.

Definition at line 146 of file video_capture_params.cpp.

{
        struct vidcap_params *ret = curr;
        for (int i = 0; i < index; i++) {
                ret = ret->next;
                if (ret == NULL) {
                        return NULL;
                }
        }
        if (ret->driver == NULL) {
                // this is just the stopper of the list...
                return NULL;
        }
        return ret;
}

References vidcap_params::driver, and vidcap_params::next.

Referenced by vidcap_switcher_grab().

vidcap_params_get_parent()

struct module * vidcap_params_get_parent

(

const struct vidcap_params *

params

)

Definition at line 243 of file video_capture_params.cpp.

{
        return params->parent;
}

Referenced by vidcap_aggregate_init(), vidcap_dshow_init(), vidcap_file_init(), vidcap_import_init(), vidcap_screen_win_init(), vidcap_switcher_init(), vidcap_syphon_init(), and vidcap_ug_input_init().

vidcap_params_set_capture_filter()

void vidcap_params_set_capture_filter	(	struct vidcap_params *	params,
		const char *	req_capture_filter )

Definition at line 192 of file video_capture_params.cpp.

{
        params->requested_capture_filter = strdup(req_capture_filter);
}

Referenced by initialize_video_capture(), and parse_options_internal().

vidcap_params_set_device()

void vidcap_params_set_device	(	struct vidcap_params *	params,
		const char *	config )

Fills the structure with device config string in format either driver[:params] or alias.

Definition at line 166 of file video_capture_params.cpp.

{
        free(params->name);
        free(params->driver);
        free(params->fmt);

        params->name = strdup(config);

        if (!vidcap_dispatch_alias(params)) {
                params->driver = strdup(config);
                if (strchr(params->driver, ':')) {
                        char *delim = strchr(params->driver, ':');
                        *delim = '\0';
                        params->fmt = strdup(delim + 1);
                } else {
                        params->fmt = strdup("");
                }
        }
}

References vidcap_dispatch_alias().

Referenced by ug_options::ug_options(), adjust_params(), parse_options_internal(), test_video_capture(), and vidcap_screen_win_init().

Here is the call graph for this function:

vidcap_params_set_driver()

void vidcap_params_set_driver	(	struct vidcap_params *	params,
		const char *	driver )

Definition at line 186 of file video_capture_params.cpp.

{
        free(params->driver);
        params->driver = strdup(driver);
}

References vidcap_params::driver.

Referenced by vidcap_screen_linux_init().

vidcap_params_set_flags()

void vidcap_params_set_flags	(	struct vidcap_params *	params,
		unsigned int	flags )

Definition at line 203 of file video_capture_params.cpp.

{
        params->flags = flags;
}

References flags.

Referenced by initialize_video_capture(), vidcap_aggregate_init(), and vidcap_switcher_init().

vidcap_params_set_parent()

void vidcap_params_set_parent	(	struct vidcap_params *	params,
		struct module *	mod )

Definition at line 248 of file video_capture_params.cpp.

                                                                               {
       params->parent = mod;
}

Referenced by initialize_video_capture(), and vidcap_screen_win_init().
