audio.cpp File Reference

#include <array>
#include <cinttypes>
#include <cstdio>
#include <cstdlib>
#include <cstring>
#include <iomanip>
#include <memory>
#include <sstream>
#include <string>
#include "../export.h"
#include "audio/audio.h"
#include "audio/audio_capture.h"
#include "audio/audio_filter.h"
#include "audio/audio_playback.h"
#include "audio/capture/sdi.h"
#include "audio/codec.h"
#include "audio/echo.h"
#include "audio/filter_chain.hpp"
#include "audio/jack.h"
#include "audio/playback/sdi.h"
#include "audio/resampler.hpp"
#include "audio/utils.h"
#include "debug.h"
#include "host.h"
#include "module.h"
#include "pdb.h"
#include "rtp/audio_decoders.h"
#include "rtp/fec.h"
#include "rtp/pbuf.h"
#include "rtp/rtp.h"
#include "rtp/rtp_callback.h"
#include "transmit.h"
#include "tv.h"
#include "types.h"
#include "ug_runtime_error.hpp"
#include "utils/color_out.h"
#include "utils/net.h"
#include "utils/sdp.h"
#include "utils/string_view_utils.hpp"
#include "utils/thread.h"
#include "utils/worker.h"
#include "video_rxtx.hpp"

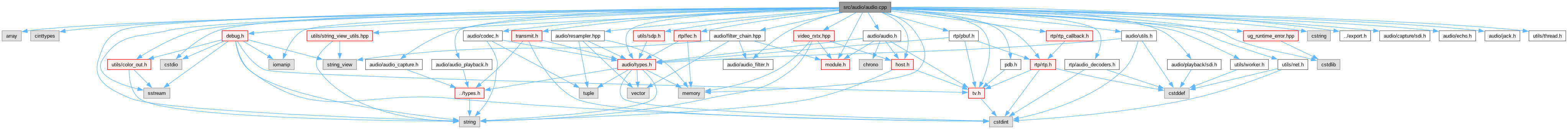

Include dependency graph for audio.cpp:

Go to the source code of this file.

Classes
struct	asend_stats_processing_data
struct	audio_decoder
struct	audio_network_parameters
struct	state_audio
struct	state_audio::audio_network_parameters
struct	state_audio::opts

Macros
#define	DEFAULT_AUDIO_RECV_BUF_SIZE   (256 * 1024)
#define	MOD_NAME   "[audio] "

Typedefs
typedef void(*	audio_device_help_t) (void)

Enumerations
enum	audio_transport_device { NET_NATIVE , NET_JACK , NET_STANDARD }

Functions
static void *	asend_compute_and_print_stats (void *arg)
static void	audio_channel_map_usage (void)
static struct audio_decoder *	audio_decoder_state_create (struct state_audio *s)
static void	audio_decoder_state_deleter (void *state)
void	audio_done (struct state_audio *s)
unsigned int	audio_get_display_flags (struct state_audio *s)
int	audio_init (struct state_audio **ret, const struct audio_options *opt, const struct common_opts *common)
void	audio_join (struct state_audio *s)
static struct response *	audio_receiver_process_message (struct state_audio *s, struct msg_receiver *msg)
static void *	audio_receiver_thread (void *arg)
void	audio_register_aux_data (struct state_audio *s, struct additional_audio_data data)
static void	audio_scale_usage (void)
void	audio_sdi_send (struct state_audio *s, struct audio_frame *frame)
static struct response *	audio_sender_process_message (struct state_audio *s, struct msg_sender *msg)
static void *	audio_sender_thread (void *arg)
void	audio_start (struct state_audio *s)
static void	audio_update_recv_buf (struct state_audio *s, size_t curr_frame_len)
static int	find_codec_sample_rate (int sample_rate, const int *supported)
static struct rtp *	initialize_audio_network (struct audio_network_parameters *params)
std::ostream &	operator<< (std::ostream &os, const audio_desc &desc)
static void	process_statistics (struct state_audio *s, audio_frame2 *buffer)
void	sdp_send_change_address_message (struct module *root, const enum module_class *path, const char *address)
static void	set_audio_spec_to_vrxtx (struct video_rxtx *vrxtx, audio_frame2 *compressed_frm, struct rtp *netdev, int tx_port, bool *audio_spec_to_vrxtx_set)
static void	should_exit_audio (void *state)

Macro Definition Documentation

DEFAULT_AUDIO_RECV_BUF_SIZE

#define DEFAULT_AUDIO_RECV_BUF_SIZE   (256 * 1024)

Definition at line 109 of file audio.cpp.

Referenced by initialize_audio_network().

MOD_NAME

#define MOD_NAME   "[audio] "

Definition at line 110 of file audio.cpp.

Referenced by ultragrid::aja::display::display(), audio_init(), audio_sender_thread(), check_reconf(), check_state_count(), debug_print_metadata_id(), display_conference_init(), display_conference_worker(), display_decklink_init(), display_decklink_put_audio_frame(), display_decklink_reconfigure_audio(), display_pw_init(), AudioDriftFixer::enable(), keyboard_control::impl::exec_local_command(), get_ansi_code(), bmd_option::get_flag(), bmd_option::get_int(), keyboard_control::impl::get_next_key(), get_utf8_code(), keycontrol_register_key(), keycontrol_send_key(), on_add_buffer(), on_param_changed(), on_state_changed(), print_output_modes(), ultragrid::aja::display::print_stats(), ultragrid::aja::display::process_frames(), ultragrid::aja::display::Putf(), ultragrid::aja::display::RouteOutputSignal(), keyboard_control::impl::run(), set_v4l2_buffers(), settings_init(), ultragrid::aja::display::SetUpVideo(), keyboard_control::impl::signal(), keyboard_control::impl::start(), try_open_v4l2_device(), and AudioDriftFixer::update().

Typedef Documentation

audio_device_help_t

typedef void(* audio_device_help_t) (void)

Copies one input channel into n output (interlaced).

Input and output data may overlap.

Definition at line 194 of file audio.cpp.

Enumeration Type Documentation

audio_transport_device

enum audio_transport_device

Enumerator
NET_NATIVE
NET_JACK
NET_STANDARD

Definition at line 103 of file audio.cpp.

                            {
        NET_NATIVE,
        NET_JACK,
        NET_STANDARD
};

Function Documentation

asend_compute_and_print_stats()

static void * asend_compute_and_print_stats ( void * arg )

static

Definition at line 979 of file audio.cpp.

                                                      {
        auto *d = (struct asend_stats_processing_data*) arg;

        log_msg(LOG_LEVEL_INFO, "[Audio sender] Sent %d samples in last %f seconds.\n",
                        d->frame.get_sample_count(),
                        d->seconds);

        char volume[STR_LEN];
        char *vol_start = volume;
        for (int i = 0; i < d->frame.get_channel_count(); ++i) {
                double rms = 0.0;
                double peak = 0.0;
                rms = calculate_rms(&d->frame, i, &peak);
                format_audio_channel_volume(
                    i, rms, peak, TERM_BOLD TERM_FG_GREEN, &vol_start,
                    volume + sizeof volume);
        }

        log_msg(LOG_LEVEL_INFO, "[Audio sender] Volume: %s dBFS RMS/peak%s\n",
                volume, d->muted_sender ? TBOLD(TRED(" (muted)")) : "");

        delete d;

        return NULL;
}

References calculate_rms(), format_audio_channel_volume(), LOG_LEVEL_INFO, log_msg(), STR_LEN, TBOLD, TERM_BOLD, TERM_FG_GREEN, and TRED.

Referenced by process_statistics().

Here is the call graph for this function:

audio_channel_map_usage()

static void audio_channel_map_usage ( void )

static

Definition at line 205 of file audio.cpp.

{
        printf("\t--audio-channel-map <mapping>   mapping of input audio channels\n");
        printf("\t                                to output audio channels comma-separated\n");
        printf("\t                                list of channel mapping (receiver only)\n");
        printf("\t                                eg. 0:0,1:0 - mixes first 2 channels\n");
        printf("\t                                    0:0    - play only first channel\n");
        printf("\t                                    0:0,:1 - sets second channel to\n");
        printf("\t                                             a silence, first one is\n");
        printf("\t                                             left as is\n");
        printf("\t                                    0:0,0:1 - splits mono into\n");
        printf("\t                                              2 channels\n");
}

Referenced by audio_init().

audio_decoder_state_create()

static struct audio_decoder * audio_decoder_state_create ( struct state_audio * s )

static

Definition at line 657 of file audio.cpp.

                                                                               {
        auto *dec_state = (struct audio_decoder *) calloc(1, sizeof(struct audio_decoder));
        assert(dec_state != NULL);
        dec_state->enabled = true;
        dec_state->pbuf_data.decoder =
            (struct state_audio_decoder *) audio_decoder_init(
                s->audio_channel_map, s->audio_scale, s->opts.encryption,
                (audio_playback_ctl_t) audio_playback_ctl,
                s->audio_playback_device, s->audio_receiver_module.get());
        if (!dec_state->pbuf_data.decoder) {
                free(dec_state);
                return NULL;
        }
        audio_decoder_set_volume(dec_state->pbuf_data.decoder, s->muted_receiver ? 0.0 : s->volume);
        return dec_state;
}

References state_audio::audio_channel_map, audio_decoder_init(), audio_decoder_set_volume(), audio_playback_ctl(), state_audio::audio_playback_device, state_audio::audio_receiver_module, state_audio::audio_scale, state_audio::muted_receiver, and state_audio::volume.

Referenced by audio_receiver_thread().

Here is the call graph for this function:

audio_decoder_state_deleter()

static void audio_decoder_state_deleter ( void * state )

static

Definition at line 674 of file audio.cpp.

{
        struct audio_decoder *s = (struct audio_decoder *) state;

        free(s->pbuf_data.buffer.data);
        audio_decoder_destroy(s->pbuf_data.decoder);

        free(s);
}

References audio_decoder_destroy(), pbuf_audio_data::buffer, audio_frame::data, pbuf_audio_data::decoder, audio_decoder::pbuf_data, and state.

Referenced by audio_receiver_thread().

Here is the call graph for this function:

audio_done()

void audio_done

(

struct state_audio *

s

)

Definition at line 512 of file audio.cpp.

{
        if (!s) {
                return;
        }
        audio_playback_done(s->audio_playback_device);
        audio_capture_done(s->audio_capture_device);
        // process remaining messages
        struct message *msg;
        while ((msg = check_message(s->audio_receiver_module.get()))) {
                struct response *r = audio_receiver_process_message(s, (struct msg_receiver *) msg);
                free_message(msg, r);
        }
        while ((msg = check_message(s->audio_sender_module.get()))) {
                struct response *r = audio_sender_process_message(s, (struct msg_sender *) msg);
                free_message(msg, r);
        }

        module_done(CAST_MODULE(s->tx_session));
        if(s->audio_network_device)
                rtp_done(s->audio_network_device);
        if(s->audio_participants) {
                pdb_destroy(&s->audio_participants);
        }

        free(s->audio_network_parameters.addr);

        audio_codec_done(s->audio_encoder);

        unregister_should_exit_callback(get_root_module(s->mod.get()),
                                        should_exit_audio, s);

        delete s;
}

References state_audio::audio_capture_device, audio_capture_done(), audio_codec_done(), state_audio::audio_encoder, state_audio::audio_network_device, state_audio::audio_participants, state_audio::audio_playback_device, audio_playback_done(), state_audio::audio_receiver_module, audio_receiver_process_message(), state_audio::audio_sender_module, audio_sender_process_message(), CAST_MODULE, check_message(), free_message(), get_root_module(), state_audio::mod, module_done(), msg, pdb_destroy(), rtp_done(), should_exit_audio(), state_audio::tx_session, and unregister_should_exit_callback().

Referenced by main(), and vidcap_ug_input_done().

Here is the call graph for this function:

audio_get_display_flags()

unsigned int audio_get_display_flags

(

struct state_audio *

s

)

Definition at line 1210 of file audio.cpp.

{
        return audio_playback_get_display_flags(s->audio_playback_device);
}

References state_audio::audio_playback_device, and audio_playback_get_display_flags().

Referenced by main().

Here is the call graph for this function:

audio_init()

int audio_init	(	struct state_audio **	ret,
		const struct audio_options *	opt,
		const struct common_opts *	common )

take care that addrs can also be comma-separated list of addresses !

Return values

0	state succesfully initialized
<0	error occured
>0	success but no state was created (eg. help printed)

Definition at line 272 of file audio.cpp.

{
        char *tmp, *unused = NULL;
        char *addr;
        int retval = -1;

        assert(opt->send_cfg != NULL);
        assert(opt->recv_cfg != NULL);

        if (opt->channel_map &&
                     strcmp("help", opt->channel_map) == 0) {
                audio_channel_map_usage();
                return 1;
        }

        if (opt->scale &&
                     strcmp("help", opt->scale) == 0) {
                audio_scale_usage();
                return 1;
        }

        struct state_audio *s =
            new state_audio(common->parent, common->start_time);

        s->audio_channel_map = opt->channel_map;
        s->audio_scale = opt->scale;

        s->audio_sender_thread_started = s->audio_receiver_thread_started = false;
        s->resample_to = parse_audio_codec_params(opt->codec_cfg).sample_rate;

        s->exporter = common->exporter;

        if (opt->echo_cancellation) {
#ifdef HAVE_SPEEXDSP
                s->echo_state = echo_cancellation_init();
                fprintf(stderr, "Echo cancellation is currently experimental "
                                "and may not work as expected.");
                goto error;
#else
                fprintf(stderr, "Speex not compiled in. Could not enable echo cancellation.\n");
                delete s;
                goto error;
#endif /* HAVE_SPEEXDSP */
        } else {
                s->echo_state = NULL;
        }

        if(opt->filter_cfg){
                std::string_view cfg_sv = opt->filter_cfg;;
                std::string_view item;
                while(item = tokenize(cfg_sv, '#'), !item.empty()) {
                        if(!s->filter_chain.emplace_new(item)) {
                                log_msg(LOG_LEVEL_ERROR, MOD_NAME "Failed to init audio filter\n");
                                goto error;
                        }
                }
        }

        s->opts = *common;

        assert(opt->host != nullptr);
        tmp = strdup(opt->host);
        s->audio_participants = pdb_init(&audio_offset);
        addr = strtok_r(tmp, ",", &unused);
        assert(addr != nullptr);

        s->audio_network_parameters.addr = strdup(addr);
        s->audio_network_parameters.recv_port = opt->recv_port;
        s->audio_network_parameters.send_port = opt->send_port;
        s->audio_network_parameters.participants = s->audio_participants;
        s->audio_network_parameters.force_ip_version = common->force_ip_version;
        s->audio_network_parameters.mcast_if =
            strlen(s->opts.mcast_if) > 0 ? s->opts.mcast_if : nullptr;
        s->audio_network_parameters.ttl = s->opts.ttl;
        free(tmp);

        if (strcmp(opt->send_cfg, "none") != 0) {
                const char *cfg = "";
                char *device = strdup(opt->send_cfg);
                if(strchr(device, ':')) {
                        char *delim = strchr(device, ':');
                        *delim = '\0';
                        cfg = delim + 1;
                }

                int ret = audio_capture_init(s->audio_sender_module.get(), device, cfg, &s->audio_capture_device);
                free(device);
                if (ret != 0) {
                        retval = ret;
                        goto error;
                }
                s->tx_session = tx_init(
                    s->audio_sender_module.get(), common->mtu, TX_MEDIA_AUDIO,
                    opt->fec_cfg, common->encryption, 0 /* unused */);
                if(!s->tx_session) {
                        fprintf(stderr, "Unable to initialize audio transmit.\n");
                        goto error;
                }

                s->audio_tx_mode |= MODE_SENDER;
        } else {
                s->audio_capture_device = audio_capture_init_null_device();
        }

        if (strcmp(opt->recv_cfg, "none") != 0) {
                const char *cfg = "";
                char *device = strdup(opt->recv_cfg);
                if(strchr(device, ':')) {
                        char *delim = strchr(device, ':');
                        *delim = '\0';
                        cfg = delim + 1;
                }

                int ret = audio_playback_init(device, cfg, &s->audio_playback_device);
                free(device);
                if (ret != 0) {
                        retval = ret;
                        goto error;
                }
                s->audio_tx_mode |= MODE_RECEIVER;
        } else {
                s->audio_playback_device = audio_playback_init_null_device();
        }

        if (s->audio_tx_mode != 0) {
                if ((s->audio_network_device = initialize_audio_network(
                                                &s->audio_network_parameters))
                                == nullptr) {
                        LOG(LOG_LEVEL_ERROR) << MOD_NAME << "Unable to open audio network\n";
                        goto error;
                }
        }
        if ((s->audio_tx_mode & MODE_RECEIVER) != 0U) {
                size_t len = sizeof(struct rtp *);
                audio_playback_ctl(s->audio_playback_device,
                                   AUDIO_PLAYBACK_PUT_NETWORK_DEVICE,
                                   &s->audio_network_device, &len);
        }

        if ((s->audio_tx_mode & MODE_SENDER) != 0U || "help"s == opt->codec_cfg) {
                if ((s->audio_encoder = audio_codec_init_cfg(opt->codec_cfg, AUDIO_CODER)) == nullptr) {
                        goto error;
                }
        }

        s->proto_cfg = opt->proto_cfg;

        if (strcasecmp(opt->proto, "ultragrid_rtp") == 0) {
                s->sender = NET_NATIVE;
                s->receiver = NET_NATIVE;
        } else if (strcasecmp(opt->proto, "rtsp") == 0 || strcasecmp(opt->proto, "sdp") == 0) {
                s->receiver = NET_STANDARD;
                s->sender = NET_STANDARD;
                if (strcasecmp(opt->proto, "sdp") == 0) {
                        if (sdp_set_options(opt->proto_cfg) != 0) {
                                goto error;
                        }
                }
        } else if (strcasecmp(opt->proto, "JACK") == 0) {
#ifndef HAVE_JACK_TRANS
                fprintf(stderr, "[Audio] JACK transport requested, "
                                "but JACK support isn't compiled.\n");
                goto error;
#else
                s->sender = NET_JACK;
                s->receiver = NET_JACK;
#endif
        } else if (s->audio_tx_mode != 0) {
                log_msg(LOG_LEVEL_ERROR, "Unknow audio protocol: %s\n", opt->proto);
                goto error;
        }

        register_should_exit_callback(common->parent, should_exit_audio, s);

        *ret = s;
        return 0;

error:
        if(s->tx_session)
                module_done(CAST_MODULE(s->tx_session));
        if(s->audio_participants) {
                pdb_destroy(&s->audio_participants);
        }

        audio_codec_done(s->audio_encoder);
        delete s;
        return retval;
}

References state_audio::state_audio(), state_audio::audio_capture_device, audio_capture_init(), audio_capture_init_null_device(), state_audio::audio_channel_map, audio_channel_map_usage(), audio_codec_done(), audio_codec_init_cfg(), AUDIO_CODER, state_audio::audio_encoder, state_audio::audio_network_device, audio_offset, state_audio::audio_participants, audio_playback_ctl(), state_audio::audio_playback_device, audio_playback_init(), audio_playback_init_null_device(), AUDIO_PLAYBACK_PUT_NETWORK_DEVICE, state_audio::audio_receiver_thread_started, state_audio::audio_scale, audio_scale_usage(), state_audio::audio_sender_module, state_audio::audio_sender_thread_started, state_audio::audio_tx_mode, CAST_MODULE, audio_options::channel_map, audio_options::codec_cfg, audio_options::echo_cancellation, echo_cancellation_init(), state_audio::echo_state, Filter_chain::emplace_new(), common_opts::encryption, common_opts::exporter, state_audio::exporter, audio_options::fec_cfg, audio_options::filter_cfg, state_audio::filter_chain, common_opts::force_ip_version, audio_options::host, initialize_audio_network(), len, LOG, LOG_LEVEL_ERROR, log_msg(), MOD_NAME, MODE_RECEIVER, MODE_SENDER, module_done(), common_opts::mtu, NET_JACK, NET_NATIVE, NET_STANDARD, rtp::opt, common_opts::parent, parse_audio_codec_params(), pdb_destroy(), pdb_init(), state_audio::proto_cfg, state_audio::receiver, audio_options::recv_cfg, audio_options::recv_port, register_should_exit_callback(), state_audio::resample_to, audio_codec_params::sample_rate, audio_options::scale, sdp_set_options(), audio_options::send_cfg, audio_options::send_port, state_audio::sender, should_exit_audio(), common_opts::start_time, tokenize(), tx_init(), TX_MEDIA_AUDIO, and state_audio::tx_session.

Referenced by main(), and vidcap_ug_input_init().

Here is the call graph for this function:

audio_join()

void audio_join

(

struct state_audio *

s

)

Definition at line 502 of file audio.cpp.

                                       {
        if (!s) {
                return;
        }
        if(s->audio_receiver_thread_started)
                pthread_join(s->audio_receiver_thread_id, NULL);
        if(s->audio_sender_thread_started)
                pthread_join(s->audio_sender_thread_id, NULL);
}

References state_audio::audio_receiver_thread_id, state_audio::audio_receiver_thread_started, state_audio::audio_sender_thread_id, and state_audio::audio_sender_thread_started.

Referenced by main(), and vidcap_ug_input_done().

audio_receiver_process_message()

static struct response * audio_receiver_process_message ( struct state_audio * s, struct msg_receiver * msg )

static

Definition at line 578 of file audio.cpp.

{
        switch (msg->type) {
        case RECEIVER_MSG_CHANGE_RX_PORT: {
                assert(s->audio_tx_mode == MODE_RECEIVER); // receiver only
                struct rtp *old_audio_network_device = s->audio_network_device;
                int         old_rx_port = s->audio_network_parameters.recv_port;
                s->audio_network_parameters.recv_port = msg->new_rx_port;
                s->audio_network_device =
                    initialize_audio_network(&s->audio_network_parameters);
                if (s->audio_network_device == nullptr) {
                        s->audio_network_parameters.recv_port = old_rx_port;
                        s->audio_network_device = old_audio_network_device;
                        string err = string("Changing audio RX port to ") +
                                     to_string(msg->new_rx_port) + "  failed!";
                        LOG(LOG_LEVEL_ERROR) << err << "\n";
                        return new_response(RESPONSE_INT_SERV_ERR, err.c_str());
                }
                rtp_done(old_audio_network_device);
                LOG(LOG_LEVEL_INFO) << "Successfully changed audio "
                                       "RX port to "
                                    << msg->new_rx_port << ".\n";
                break;
        }
        case RECEIVER_MSG_GET_AUDIO_STATUS: {
                double ret             = s->muted_receiver ? 0.0 : s->volume;
                char   volume_str[128] = "";
                snprintf(volume_str, sizeof volume_str, "%lf,%d", ret,
                         (int) s->muted_receiver);
                return new_response(RESPONSE_OK, volume_str);
                break;
        }
        case RECEIVER_MSG_INCREASE_VOLUME:
        case RECEIVER_MSG_DECREASE_VOLUME:
        case RECEIVER_MSG_MUTE:
        case RECEIVER_MSG_UNMUTE:
        case RECEIVER_MSG_MUTE_TOGGLE: {
                if (msg->type == RECEIVER_MSG_INCREASE_VOLUME) {
                        s->volume *= 1.1;
                } else if (msg->type == RECEIVER_MSG_DECREASE_VOLUME) {
                        s->volume /= 1.1;
                } else {
                        s->muted_receiver =
                            msg->type == RECEIVER_MSG_MUTE_TOGGLE
                                ? !s->muted_receiver
                                : msg->type == RECEIVER_MSG_MUTE;
                }
                double new_volume = s->muted_receiver ? 0.0 : s->volume;
                double db         = 20.0 * log10(new_volume);
                if (msg->type == RECEIVER_MSG_MUTE_TOGGLE) {
                        LOG(LOG_LEVEL_NOTICE)
                            << "Audio receiver "
                            << (s->muted_receiver ? "" : "un") << "muted.\n";
                } else {
                        log_msg(LOG_LEVEL_INFO,
                                "Playback volume: %.2f%% (%+.2f dB)\n",
                                new_volume * 100.0, db);
                }
                pdb_iter_t    it{};
                struct pdb_e *cp = pdb_iter_init(s->audio_participants, &it);
                while (cp != nullptr) {
                        auto *dec_state =
                            (struct audio_decoder *) cp->decoder_state;
                        if (dec_state != nullptr) {
                                audio_decoder_set_volume(
                                    dec_state->pbuf_data.decoder, new_volume);
                        }
                        cp = pdb_iter_next(&it);
                }
                pdb_iter_done(&it);
                break;
        }
        case RECEIVER_MSG_VIDEO_PROP_CHANGED:
                abort();
        }

        return new_response(RESPONSE_OK, nullptr);
}

References audio_decoder_set_volume(), state_audio::audio_network_device, state_audio::audio_participants, state_audio::audio_tx_mode, rtp::db, pdb_e::decoder_state, initialize_audio_network(), LOG, LOG_LEVEL_ERROR, LOG_LEVEL_INFO, LOG_LEVEL_NOTICE, log_msg(), MODE_RECEIVER, state_audio::muted_receiver, new_response(), pdb_iter_done(), pdb_iter_init(), pdb_iter_next(), RECEIVER_MSG_CHANGE_RX_PORT, RECEIVER_MSG_DECREASE_VOLUME, RECEIVER_MSG_GET_AUDIO_STATUS, RECEIVER_MSG_INCREASE_VOLUME, RECEIVER_MSG_MUTE, RECEIVER_MSG_MUTE_TOGGLE, RECEIVER_MSG_UNMUTE, RECEIVER_MSG_VIDEO_PROP_CHANGED, RESPONSE_INT_SERV_ERR, RESPONSE_OK, rtp_done(), and state_audio::volume.

Referenced by audio_done(), and audio_receiver_thread().

Here is the call graph for this function:

audio_receiver_thread()

static void * audio_receiver_thread ( void * arg )

static

Definition at line 695 of file audio.cpp.

{
        set_thread_name(__func__);
        struct state_audio *s = (struct state_audio *) arg;
        // rtp variables
        struct pdb_e *cp;
        struct audio_desc device_desc{};
        bool playback_supports_multiple_streams;

        struct pbuf_audio_data *current_pbuf = NULL;

#ifdef HAVE_JACK_TRANS
        struct pbuf_audio_data jack_pbuf{};
        current_pbuf = &jack_pbuf;
#endif

        size_t len = sizeof playback_supports_multiple_streams;
        if (!audio_playback_ctl(s->audio_playback_device, AUDIO_PLAYBACK_CTL_MULTIPLE_STREAMS,
                        &playback_supports_multiple_streams, &len)) {
                playback_supports_multiple_streams = false;
        }

        time_ns_t last_not_timeout = 0;
        printf("Audio receiving started.\n");
        while (!s->should_exit) {
                struct message *msg;
                while((msg= check_message(s->audio_receiver_module.get()))) {
                        struct response *r = audio_receiver_process_message(s, (struct msg_receiver *) msg);
                        free_message(msg, r);
                }

                bool decoded = false;

                if (s->receiver == NET_NATIVE || s->receiver == NET_STANDARD) {
                        time_ns_t curr_time = get_time_in_ns();
                        uint32_t ts = (curr_time - s->start_time) / 100'000 * 9; // at 90000 Hz
                        rtp_update(s->audio_network_device, curr_time);
                        rtp_send_ctrl(s->audio_network_device, ts, 0, curr_time);
                        struct timeval timeout;
                        timeout.tv_sec = 0;
                        // timeout.tv_usec = 999999 / 59.94; // audio goes almost always at the same rate
                                                             // as video frames
                        if ((curr_time - last_not_timeout) > NS_IN_SEC) {
                                timeout.tv_usec = 100000;
                        } else {
                                timeout.tv_usec = 1000; // this stuff really smells !!!
                        }
                        bool ret = rtp_recv_r(s->audio_network_device, &timeout, ts);
                        if (ret) {
                                last_not_timeout = curr_time;
                        }
                        pdb_iter_t it;
                        cp = pdb_iter_init(s->audio_participants, &it);

                        while (cp != NULL) {
                                if (cp->decoder_state == NULL &&
                                                !pbuf_is_empty(cp->playout_buffer)) { // the second check is need ed because we want to assign display to participant that really sends data
                                        // disable all previous sources
                                        if (!playback_supports_multiple_streams) {
                                                pdb_iter_t it;
                                                struct pdb_e *cp = pdb_iter_init(s->audio_participants, &it);
                                                while (cp != NULL) {
                                                        if(cp->decoder_state) {
                                                                ((struct audio_decoder *) cp->decoder_state)->enabled = false;
                                                        }
                                                        cp = pdb_iter_next(&it);
                                                }
                                                pdb_iter_done(&it);
                                        }

                                        if (get_commandline_param("low-latency-audio")) {
                                                pbuf_set_playout_delay(cp->playout_buffer, strcmp(get_commandline_param("low-latency-audio"), "ultra") == 0 ? 0.001 :0.005);
                                        }
                                        cp->decoder_state = audio_decoder_state_create(s);
                                        if (!cp->decoder_state) {
                                                exit_uv(1);
                                                break;
                                        }
                                        cp->decoder_state_deleter = audio_decoder_state_deleter;
                                }

                                struct audio_decoder *dec_state = (struct audio_decoder *) cp->decoder_state;
                                if (dec_state && dec_state->enabled) {
                                        dec_state->pbuf_data.buffer.data_len = 0;
                                        dec_state->pbuf_data.buffer.timestamp = -1;
                                        // We iterate in loop since there can be more than one frmae present in
                                        // the playout buffer and it would be discarded by following pbuf_remove()
                                        // call.
                                        while (pbuf_decode(cp->playout_buffer, curr_time, s->receiver == NET_NATIVE ? decode_audio_frame : decode_audio_frame_mulaw, &dec_state->pbuf_data)) {

                                                current_pbuf = &dec_state->pbuf_data;
                                                decoded = true;
                                        }
                                }

                                pbuf_remove(cp->playout_buffer, curr_time);
                                cp = pdb_iter_next(&it);

                                if (decoded && !playback_supports_multiple_streams)
                                        break;
                        }
                        pdb_iter_done(&it);
                }else { /* NET_JACK */
#ifdef HAVE_JACK_TRANS
                        decoded = jack_receive(s->jack_connection, &jack_pbuf);
#endif
                }

                if (decoded) {
                        bool failed = false;

                        struct audio_desc curr_desc;
                        curr_desc = audio_desc_from_frame(&current_pbuf->buffer);

                        if(!audio_desc_eq(device_desc, curr_desc)) {
                                int log_l;
                                string msg;
                                if (audio_playback_reconfigure(s->audio_playback_device, curr_desc.bps * 8,
                                                        curr_desc.ch_count,
                                                        curr_desc.sample_rate) != TRUE) {
                                        log_l = LOG_LEVEL_ERROR;
                                        msg = "Audio reconfiguration failed";
                                        failed = true;
                                }
                                else {
                                        log_l = LOG_LEVEL_INFO;
                                        msg = "Audio reconfiguration succeeded";
                                        device_desc = curr_desc;
                                        rtp_flush_recv_buf(s->audio_network_device);
                                }
                                LOG(log_l) << msg << " (" << curr_desc << ")" << (log_l < LOG_LEVEL_WARNING ? "!" : ".") << "\n";
                                rtp_flush_recv_buf(s->audio_network_device);
                        }

                        if (failed) {
                                continue;
                        }
                        audio_update_recv_buf(s, current_pbuf->frame_size);

                        if(s->echo_state) {
#ifdef HAVE_SPEEXDSP
                                echo_play(s->echo_state, &current_pbuf->buffer);
#endif
                        }

                        if (!playback_supports_multiple_streams) {
                                audio_playback_put_frame(s->audio_playback_device, &current_pbuf->buffer);
                        } else {
                                pdb_iter_t it;
                                cp = pdb_iter_init(s->audio_participants, &it);
                                while (cp != NULL) {
                                        struct audio_decoder *dec_state = (struct audio_decoder *) cp->decoder_state;
                                        if (dec_state && dec_state->enabled && dec_state->pbuf_data.buffer.data_len > 0) {
                                                struct audio_frame *f = &dec_state->pbuf_data.buffer;
                                                f->network_source = &dec_state->pbuf_data.source;
                                                audio_playback_put_frame(s->audio_playback_device, f);
                                        }
                                        cp = pdb_iter_next(&it);
                                }
                                pdb_iter_done(&it);
                        }
                }
        }

#ifdef HAVE_JACK_TRANS
        free(jack_pbuf.buffer.data);
#endif

        return NULL;
}

References audio_decoder_state_create(), audio_decoder_state_deleter(), audio_desc_eq(), audio_desc_from_frame(), state_audio::audio_network_device, state_audio::audio_participants, audio_playback_ctl(), AUDIO_PLAYBACK_CTL_MULTIPLE_STREAMS, state_audio::audio_playback_device, audio_playback_put_frame(), audio_playback_reconfigure(), state_audio::audio_receiver_module, audio_receiver_process_message(), audio_update_recv_buf(), audio_desc::bps, pbuf_audio_data::buffer, audio_desc::ch_count, check_message(), audio_frame::data, audio_frame::data_len, decode_audio_frame(), decode_audio_frame_mulaw(), pdb_e::decoder_state, pdb_e::decoder_state_deleter, echo_play(), state_audio::echo_state, audio_decoder::enabled, enabled, exit_uv(), pbuf_audio_data::frame_size, free_message(), get_commandline_param(), get_time_in_ns(), state_audio::jack_connection, jack_receive(), len, LOG, LOG_LEVEL_ERROR, LOG_LEVEL_INFO, LOG_LEVEL_WARNING, msg, NET_NATIVE, NET_STANDARD, audio_frame::network_source, NS_IN_SEC, audio_decoder::pbuf_data, pbuf_decode(), pbuf_is_empty(), pbuf_remove(), pbuf_set_playout_delay(), pdb_iter_done(), pdb_iter_init(), pdb_iter_next(), pdb_e::playout_buffer, state_audio::receiver, rtp_flush_recv_buf(), rtp_recv_r(), rtp_send_ctrl(), rtp_update(), audio_desc::sample_rate, set_thread_name(), state_audio::should_exit, pbuf_audio_data::source, state_audio::start_time, audio_frame::timestamp, TRUE, and ts.

Referenced by audio_start().

Here is the call graph for this function:

audio_register_aux_data()

void audio_register_aux_data	(	struct state_audio *	s,
		struct additional_audio_data	data )

Definition at line 1191 of file audio.cpp.

{
        if (audio_playback_get_display_flags(s->audio_playback_device) != 0U) {
                auto *sdi_playback = (struct state_sdi_playback *)
                    audio_playback_get_state_pointer(s->audio_playback_device);
                sdi_register_display_callbacks(
                    sdi_playback, data.display_callbacks.udata,
                    (void (*)(void *, const struct audio_frame *))
                        data.display_callbacks.putf,
                    (bool (*)(void *, int, int,
                              int)) data.display_callbacks.reconfigure,
                    (bool (*)(void *, int, void *,
                              size_t *)) data.display_callbacks.get_property);
        }

        s->vrxtx = data.vrxtx;
}

References state_audio::audio_playback_device, audio_playback_get_display_flags(), audio_playback_get_state_pointer(), additional_audio_data::display_callbacks, additional_audio_data::get_property, additional_audio_data::putf, additional_audio_data::reconfigure, sdi_register_display_callbacks(), additional_audio_data::udata, additional_audio_data::vrxtx, and state_audio::vrxtx.

Referenced by main(), and vidcap_ug_input_init().

Here is the call graph for this function:

audio_scale_usage()

static void audio_scale_usage ( void )

static

Definition at line 219 of file audio.cpp.

{
        col() << "Usage:\n";
        col() << TBOLD(TRED("\t--audio-scale [<factor>|<method>]\n"));
        col() << "\t        Floating point number that tells a static scaling factor for all\n";
        col() << "\t        output channels. Scaling method can be one from these:\n";
        col() << TBOLD("\t          0.0-1.0") << " - factor to scale to (usually 0-1 but can be more)\n";
        col() << TBOLD("\t          mixauto") << " - automatically adjust volume if using channel\n";
        col() << "\t                    mixing/remapping (default)\n";
        col() << TBOLD("\t          auto") << " - automatically adjust volume\n";
        col() << TBOLD("\t          none") << " - no scaling will be performed\n";
}

References TBOLD, and TRED.

Referenced by audio_init().

audio_sdi_send()

void audio_sdi_send	(	struct state_audio *	s,
		struct audio_frame *	frame )

Definition at line 1179 of file audio.cpp.

                                                                      {
        void *sdi_capture;
        if (!s->audio_capture_device)
                return;
        if(!audio_capture_get_vidcap_flags(audio_capture_get_driver_name(s->audio_capture_device)))
                return;

        sdi_capture = audio_capture_get_state_pointer(s->audio_capture_device);
        sdi_capture_new_incoming_frame(sdi_capture, frame);
}

References state_audio::audio_capture_device, audio_capture_get_driver_name(), audio_capture_get_state_pointer(), audio_capture_get_vidcap_flags(), frame, and sdi_capture_new_incoming_frame().

Referenced by capture_thread().

Here is the call graph for this function:

audio_sender_process_message()

static struct response * audio_sender_process_message ( struct state_audio * s, struct msg_sender * msg )

static

Definition at line 866 of file audio.cpp.

{
        switch (msg->type) {
        case SENDER_MSG_CHANGE_FEC: {
                auto *old_fec_state = s->fec_state;
                s->fec_state       = nullptr;
                if (strcmp(msg->fec_cfg, "flush") == 0) {
                        delete old_fec_state;
                        break;
                }
                s->fec_state = fec::create_from_config(msg->fec_cfg, true);
                if (s->fec_state == nullptr) {
                        s->fec_state = old_fec_state;
                        if (strstr(msg->fec_cfg, "help") !=
                            nullptr) { // -f LDGM:help or so + init
                                exit_uv(0);
                        } else {
                                LOG(LOG_LEVEL_ERROR)
                                    << "[control] Unable to initalize FEC!\n";
                        }
                        return new_response(RESPONSE_INT_SERV_ERR, nullptr);
                }
                delete old_fec_state;
                log_msg(LOG_LEVEL_NOTICE,
                        "[control] Fec changed successfully\n");
        } break;
        case SENDER_MSG_CHANGE_RECEIVER: {
                assert(s->audio_tx_mode == MODE_SENDER);
                auto *old_device   = s->audio_network_device;
                auto *old_receiver = s->audio_network_parameters.addr;

                s->audio_network_parameters.addr = strdup(msg->receiver);
                s->audio_network_device =
                    initialize_audio_network(&s->audio_network_parameters);
                if (s->audio_network_device == nullptr) {
                        s->audio_network_device = old_device;
                        free(s->audio_network_parameters.addr);
                        s->audio_network_parameters.addr = old_receiver;
                        return new_response(RESPONSE_INT_SERV_ERR,
                                            "Changing receiver failed!");
                }
                free(old_receiver);
                rtp_done(old_device);
                MSG(NOTICE, "Changed receiver to %s\n", msg->receiver);
                break;
        }
        case SENDER_MSG_CHANGE_PORT: {
                assert(s->audio_tx_mode == MODE_SENDER);
                auto *old_device = s->audio_network_device;
                auto old_port   = s->audio_network_parameters.send_port;

                s->audio_network_parameters.send_port = msg->tx_port;
                if (msg->rx_port != 0) {
                        s->audio_network_parameters.recv_port = msg->rx_port;
                }
                s->audio_network_device =
                    initialize_audio_network(&s->audio_network_parameters);
                if (s->audio_network_device == nullptr) {
                        s->audio_network_device               = old_device;
                        s->audio_network_parameters.send_port = old_port;
                        return new_response(RESPONSE_INT_SERV_ERR,
                                            "Changing receiver failed!");
                }
                rtp_done(old_device);
                MSG(NOTICE, "Changed TX port to %d\n", msg->tx_port);
                break;
        }
        case SENDER_MSG_GET_STATUS: {
                char status[128] = "";
                snprintf(status, sizeof status, "%d", (int) s->muted_sender);
                return new_response(RESPONSE_OK, status);
                break;
        }
        case SENDER_MSG_MUTE:
        case SENDER_MSG_UNMUTE:
        case SENDER_MSG_MUTE_TOGGLE:
                s->muted_sender = msg->type == SENDER_MSG_MUTE_TOGGLE
                                      ? !s->muted_sender
                                      : msg->type == SENDER_MSG_MUTE;
                log_msg(LOG_LEVEL_NOTICE, "Audio sender %smuted.\n",
                        s->muted_sender ? "" : "un");
                break;
        case SENDER_MSG_QUERY_VIDEO_MODE:
                return new_response(RESPONSE_BAD_REQUEST, nullptr);
        case SENDER_MSG_RESET_SSRC: {
                assert(s->audio_tx_mode == MODE_SENDER);
                const uint32_t old_ssrc = rtp_my_ssrc(s->audio_network_device);
                auto          *old_devices = s->audio_network_device;
                s->audio_network_device =
                    initialize_audio_network(&s->audio_network_parameters);
                if (s->audio_network_device == nullptr) {
                        s->audio_network_device = old_devices;
                        log_msg(LOG_LEVEL_ERROR,
                                "[control] Audio: Unable to change SSRC!\n");
                        return new_response(RESPONSE_INT_SERV_ERR, nullptr);
                }

                rtp_done(old_devices);
                log_msg(LOG_LEVEL_NOTICE,
                        "[control] Audio: changed SSRC from 0x%08" PRIx32 " to "
                        "0x%08" PRIx32 ".\n",
                        old_ssrc, rtp_my_ssrc(s->audio_network_device));
        } break;
        }
        return new_response(RESPONSE_OK, nullptr);
}

References state_audio::audio_network_device, state_audio::audio_tx_mode, fec::create_from_config(), exit_uv(), state_audio::fec_state, initialize_audio_network(), LOG, LOG_LEVEL_ERROR, LOG_LEVEL_NOTICE, log_msg(), MODE_SENDER, MSG, state_audio::muted_sender, new_response(), RESPONSE_BAD_REQUEST, RESPONSE_INT_SERV_ERR, RESPONSE_OK, rtp_done(), rtp_my_ssrc(), SENDER_MSG_CHANGE_FEC, SENDER_MSG_CHANGE_PORT, SENDER_MSG_CHANGE_RECEIVER, SENDER_MSG_GET_STATUS, SENDER_MSG_MUTE, SENDER_MSG_MUTE_TOGGLE, SENDER_MSG_QUERY_VIDEO_MODE, SENDER_MSG_RESET_SSRC, and SENDER_MSG_UNMUTE.

Referenced by audio_done(), and audio_sender_thread().

Here is the call graph for this function:

audio_sender_thread()

static void * audio_sender_thread ( void * arg )

static

Definition at line 1072 of file audio.cpp.

{
        set_thread_name(__func__);
        struct state_audio *s = (struct state_audio *) arg;
        bool audio_spec_to_vrxtx_set = false;
        struct audio_frame *buffer = NULL;
        unique_ptr<audio_frame2_resampler> resampler_state;
        try {
                resampler_state = unique_ptr<audio_frame2_resampler>(new audio_frame2_resampler);
        } catch (ug_runtime_error &e) {
                log_msg(LOG_LEVEL_ERROR, MOD_NAME "%s\n", e.what());
                exit_uv(1);
                return NULL;
        }

        printf("Audio sending started.\n");

        while (!s->should_exit) {
                struct message *msg;
                while((msg = check_message(s->audio_sender_module.get()))) {
                        struct response *r = audio_sender_process_message(s, (struct msg_sender *) msg);
                        free_message(msg, r);
                }

                if ((s->audio_tx_mode & MODE_RECEIVER) == 0) { // otherwise receiver thread does the stuff...
                        time_ns_t curr_time = get_time_in_ns();
                        uint32_t ts = (curr_time - s->start_time) / 10'0000 * 9; // at 90000 Hz
                        rtp_update(s->audio_network_device, curr_time);
                        rtp_send_ctrl(s->audio_network_device, ts, 0, curr_time);

                        // receive RTCP
                        struct timeval timeout;
                        timeout.tv_sec = 0;
                        timeout.tv_usec = 0;
                        rtcp_recv_r(s->audio_network_device, &timeout, ts);
                }

                buffer = audio_capture_read(s->audio_capture_device);
                if(buffer) {
                        if(s->echo_state) {
#ifdef HAVE_SPEEXDSP
                                buffer = echo_cancel(s->echo_state, buffer);
                                if(!buffer)
                                        continue;
#endif
                        }
                        if (s->muted_sender) {
                                memset(buffer->data, 0, buffer->data_len);
                        }
                        export_audio(s->exporter, buffer);

                        s->filter_chain.filter(&buffer);

                        if(!buffer)
                                continue;

                        audio_frame2 bf_n(buffer);

                        // RESAMPLE
                        int resample_to = s->resample_to;
                        if (resample_to == 0) {
                                const int *supp_sample_rates = audio_codec_get_supported_samplerates(s->audio_encoder);
                                resample_to = find_codec_sample_rate(bf_n.get_sample_rate(),
                                                supp_sample_rates);
                        }
                        if (resample_to != 0 && bf_n.get_sample_rate() != resample_to) {
                                if (bf_n.get_bps() != 2) {
                                        bf_n.change_bps(2);
                                }

                                bf_n.resample(*resampler_state, resample_to);
                        }
                        // COMPRESS
                        process_statistics(s, &bf_n);
                        // SEND
                        if(s->sender == NET_NATIVE) {
                                audio_frame2 *uncompressed = &bf_n;
                                while (audio_frame2 to_send = audio_codec_compress(s->audio_encoder, uncompressed)) {
                                        if (s->fec_state != nullptr) {
                                                to_send = s->fec_state->encode(to_send);
                                        }
                                        audio_tx_send(s->tx_session, s->audio_network_device, &to_send);
                                        uncompressed = NULL;
                                }
                        }else if(s->sender == NET_STANDARD){
                            audio_frame2 *uncompressed = &bf_n;
                            while (audio_frame2 compressed = audio_codec_compress(s->audio_encoder, uncompressed)) {
                                    //TODO to be dynamic as a function of the selected codec, now only accepting mulaw without checking errors
                                    audio_tx_send_standard(s->tx_session, s->audio_network_device, &compressed);
                                    uncompressed = NULL;
                                    set_audio_spec_to_vrxtx(
                                        s->vrxtx, &compressed,
                                        s->audio_network_device,
                                        s->audio_network_parameters.send_port,
                                        &audio_spec_to_vrxtx_set);
                            }
                        }
#ifdef HAVE_JACK_TRANS
                        else
                                jack_send(s->jack_connection, buffer);
#endif
                }
        }

        return NULL;
}

References state_audio::audio_capture_device, audio_capture_read(), audio_codec_compress(), audio_codec_get_supported_samplerates(), state_audio::audio_encoder, state_audio::audio_network_device, state_audio::audio_sender_module, audio_sender_process_message(), state_audio::audio_tx_mode, audio_tx_send(), audio_tx_send_standard(), audio_frame2::change_bps(), check_message(), audio_frame::data, audio_frame::data_len, echo_cancel(), state_audio::echo_state, fec::encode(), exit_uv(), export_audio(), state_audio::exporter, state_audio::fec_state, Filter_chain::filter(), state_audio::filter_chain, find_codec_sample_rate(), free_message(), audio_frame2::get_bps(), audio_frame2::get_sample_rate(), get_time_in_ns(), state_audio::jack_connection, jack_send(), LOG_LEVEL_ERROR, log_msg(), MOD_NAME, MODE_RECEIVER, msg, state_audio::muted_sender, NET_NATIVE, NET_STANDARD, process_statistics(), audio_frame2::resample(), state_audio::resample_to, rtcp_recv_r(), rtp_send_ctrl(), rtp_update(), state_audio::sender, set_audio_spec_to_vrxtx(), set_thread_name(), state_audio::should_exit, state_audio::start_time, ts, state_audio::tx_session, and state_audio::vrxtx.

Referenced by audio_start().

Here is the call graph for this function:

audio_start()

void audio_start

(

struct state_audio *

s

)

Definition at line 463 of file audio.cpp.

                                        {
#ifdef HAVE_JACK_TRANS
        if (s->sender == NET_JACK || s->receiver == NET_JACK) {
                s->jack_connection = jack_start(s->proto_cfg.c_str());
                if (s->jack_connection) {
                        if (!is_jack_sender(s->jack_connection)) {
                                s->sender = NET_NATIVE;
                        }
                        if (!is_jack_receiver(s->jack_connection)) {
                                s->receiver = NET_NATIVE;
                        }
                } else {
                        log_msg(LOG_LEVEL_FATAL, "JACK transport initialization failed!\n");
                        exit_uv(EXIT_FAIL_AUDIO);
                }
        }
#endif

        if (s->audio_tx_mode & MODE_SENDER) {
                if (pthread_create
                    (&s->audio_sender_thread_id, NULL, audio_sender_thread, (void *)s) != 0) {
                        log_msg(LOG_LEVEL_FATAL, "Error creating audio thread. Quitting\n");
                        exit_uv(EXIT_FAIL_AUDIO);
                } else {
                        s->audio_sender_thread_started = true;
                }
        }

        if (s->audio_tx_mode & MODE_RECEIVER) {
                if (pthread_create
                    (&s->audio_receiver_thread_id, NULL, audio_receiver_thread, (void *)s) != 0) {
                        log_msg(LOG_LEVEL_FATAL, "Error creating audio thread. Quitting\n");
                        exit_uv(EXIT_FAIL_AUDIO);
                } else {
                        s->audio_receiver_thread_started = true;
                }
        }
}

References audio_receiver_thread(), state_audio::audio_receiver_thread_id, audio_sender_thread(), state_audio::audio_sender_thread_id, state_audio::audio_tx_mode, EXIT_FAIL_AUDIO, exit_uv(), is_jack_receiver(), is_jack_sender(), state_audio::jack_connection, jack_start(), LOG_LEVEL_FATAL, log_msg(), MODE_RECEIVER, MODE_SENDER, NET_JACK, NET_NATIVE, state_audio::proto_cfg, state_audio::receiver, and state_audio::sender.

Referenced by main(), vidcap_ug_input_init(), and write_video_frame().

Here is the call graph for this function:

audio_update_recv_buf()

static void audio_update_recv_buf ( struct state_audio * s, size_t curr_frame_len )

static

Definition at line 684 of file audio.cpp.

{
        size_t new_size = curr_frame_len * 2;

        if (new_size > s->recv_buf_size) {
                s->recv_buf_size = new_size;
                LOG(LOG_LEVEL_DEBUG) << "[Audio receiver] Recv buffer adjusted to " << new_size << "\n";
                rtp_set_recv_buf(s->audio_network_device, s->recv_buf_size);
        }
}

References state_audio::audio_network_device, LOG, LOG_LEVEL_DEBUG, state_audio::recv_buf_size, and rtp_set_recv_buf().

Referenced by audio_receiver_thread().

Here is the call graph for this function:

find_codec_sample_rate()

static int find_codec_sample_rate ( int sample_rate, const int * supported )

static

Definition at line 1026 of file audio.cpp.

                                                                         {
        if (!supported) {
                return 0;
        }

        int rate_hi = 0, // nearest high
           rate_lo = 0; // nearest low

        const int *tmp = supported;
        while (*tmp != 0) {
                if (*tmp == sample_rate) {
                        return sample_rate;
                }
                if (*tmp > sample_rate && (rate_hi == 0 || *tmp < rate_hi)) {
                        rate_hi = *tmp;
                }

                if (*tmp < sample_rate && *tmp > rate_lo) {
                        rate_lo = *tmp;
                }
                tmp++;
        }

        return rate_hi > 0 ? rate_hi : rate_lo;
}

References sample_rate.

Referenced by audio_sender_thread().

initialize_audio_network()

static struct rtp * initialize_audio_network ( struct audio_network_parameters * params )

static

Definition at line 547 of file audio.cpp.

{
        struct rtp *r;
        double rtcp_bw = 1024 * 512;    // FIXME:  something about 5% for rtcp is said in rfc

        r = rtp_init_if(params->addr, params->mcast_if, params->recv_port,
                        params->send_port, params->ttl, rtcp_bw,
                        FALSE, rtp_recv_callback,
                        (uint8_t *) params->participants,
                        params->force_ip_version, false);
        if (r != NULL) {
                pdb_add(params->participants, rtp_my_ssrc(r));
                rtp_set_option(r, RTP_OPT_WEAK_VALIDATION, TRUE);
                rtp_set_option(r, RTP_OPT_PROMISC, TRUE);
                rtp_set_option(r, RTP_OPT_RECORD_SOURCE, TRUE);
                rtp_set_sdes(r, rtp_my_ssrc(r), RTCP_SDES_TOOL,
                             PACKAGE_STRING, strlen(PACKAGE_VERSION));
                if (strcmp(params->addr, IN6_BLACKHOLE_SERVER_MODE_STR) == 0) {
                        rtp_set_option(r, RTP_OPT_SEND_BACK, TRUE);
                }
                rtp_set_recv_buf(r, DEFAULT_AUDIO_RECV_BUF_SIZE);
        }

        return r;
}

References DEFAULT_AUDIO_RECV_BUF_SIZE, FALSE, IN6_BLACKHOLE_SERVER_MODE_STR, pdb_add(), rtp::rtcp_bw, RTCP_SDES_TOOL, rtp_init_if(), rtp_my_ssrc(), RTP_OPT_PROMISC, RTP_OPT_RECORD_SOURCE, RTP_OPT_SEND_BACK, RTP_OPT_WEAK_VALIDATION, rtp_recv_callback(), rtp_set_option(), rtp_set_recv_buf(), rtp_set_sdes(), and TRUE.

Referenced by audio_init(), audio_receiver_process_message(), and audio_sender_process_message().

Here is the call graph for this function:

operator<<()

std::ostream & operator<<	(	std::ostream &	os,
		const audio_desc &	desc )

Definition at line 1215 of file audio.cpp.

{
    os << desc.ch_count << " channel" << (desc.ch_count > 1 ? "s" : "") << ", " << desc.bps << " Bps, " << desc.sample_rate << " Hz, codec: " << get_name_to_audio_codec(desc.codec);
    return os;
}

References desc, and get_name_to_audio_codec().

Here is the call graph for this function:

process_statistics()

static void process_statistics ( struct state_audio * s, audio_frame2 * buffer )

static

Definition at line 1005 of file audio.cpp.

{
        if (!s->captured.has_same_prop_as(*buffer)) {
                s->captured.init(buffer->get_channel_count(), buffer->get_codec(),
                                buffer->get_bps(), buffer->get_sample_rate());
        }
        s->captured.append(*buffer);

        time_ns_t t = get_time_in_ns();
        if (t - s->t0 > 5 * NS_IN_SEC) {
                double seconds = (double)(t - s->t0) / NS_IN_SEC;
                auto d = new asend_stats_processing_data;
                std::swap(d->frame, s->captured);
                d->seconds = seconds;
                d->muted_sender = s->muted_sender;

                task_run_async_detached(asend_compute_and_print_stats, d);
                s->t0 = t;
        }
}

References audio_frame2::append(), asend_compute_and_print_stats(), state_audio::captured, audio_frame2::get_bps(), audio_frame2::get_channel_count(), audio_frame2::get_codec(), audio_frame2::get_sample_rate(), get_time_in_ns(), audio_frame2::has_same_prop_as(), audio_frame2::init(), state_audio::muted_sender, NS_IN_SEC, asend_stats_processing_data::seconds, state_audio::t0, and task_run_async_detached().

Referenced by audio_sender_thread().

Here is the call graph for this function:

sdp_send_change_address_message()

void sdp_send_change_address_message	(	struct module *	root,
		const enum module_class *	path,
		const char *	address )

Definition at line 238 of file audio.cpp.

{
        array<char, 1024> pathV{};

        append_message_path(pathV.data(), pathV.size(), path);

        // CHANGE DST ADDRESS
        auto *msgV2 = reinterpret_cast<struct msg_sender *>(
            new_message(sizeof(struct msg_sender)));
        strncpy(static_cast<char *>(msgV2->receiver), address,
                sizeof(msgV2->receiver) - 1);
        msgV2->type = SENDER_MSG_CHANGE_RECEIVER;

        auto *resp = send_message(root, pathV.data(),
                                  reinterpret_cast<struct message *>(msgV2));
        if (response_get_status(resp) == RESPONSE_OK) {
                LOG(LOG_LEVEL_NOTICE)
                    << "[SDP] Changing address to " << address << "\n";
        } else {
                LOG(LOG_LEVEL_WARNING)
                    << "[SDP] Unable to change address to " << address << " ("
                    << response_get_status(resp) << ")\n";
        }
        free_response(resp);
}

References append_message_path(), free_response(), LOG, LOG_LEVEL_NOTICE, LOG_LEVEL_WARNING, new_message(), response_get_status(), RESPONSE_OK, send_message(), and SENDER_MSG_CHANGE_RECEIVER.

Referenced by h264_sdp_video_rxtx::change_address_callback(), and sdp_change_address_callback().

Here is the call graph for this function:

set_audio_spec_to_vrxtx()

static void set_audio_spec_to_vrxtx ( struct video_rxtx * vrxtx, audio_frame2 * compressed_frm, struct rtp * netdev, int tx_port, bool * audio_spec_to_vrxtx_set )

static

Definition at line 1053 of file audio.cpp.

{
        if (*audio_spec_to_vrxtx_set) {
                return;
        }

        *audio_spec_to_vrxtx_set = true;

        const struct audio_desc desc    = compressed_frm->get_desc();
        const int               rx_port = rtp_get_udp_rx_port(netdev);

        MSG(VERBOSE, "Setting audio desc %s, rx port=%d to RXTX.\n",
            audio_desc_to_cstring(desc), rx_port);

        assert(vrxtx != nullptr);
        vrxtx->set_audio_spec(&desc, rx_port, tx_port, rtp_is_ipv6(netdev));
}

References audio_desc_to_cstring(), desc, audio_frame2::get_desc(), MSG, rtp_get_udp_rx_port(), rtp_is_ipv6(), and video_rxtx::set_audio_spec().

Referenced by audio_sender_thread().

Here is the call graph for this function:

should_exit_audio()

static void should_exit_audio ( void * state )

static

Definition at line 232 of file audio.cpp.

                                           {
        auto *s = (struct state_audio *) state;
        s->should_exit = true;
}

References state.

Referenced by audio_done(), and audio_init().
